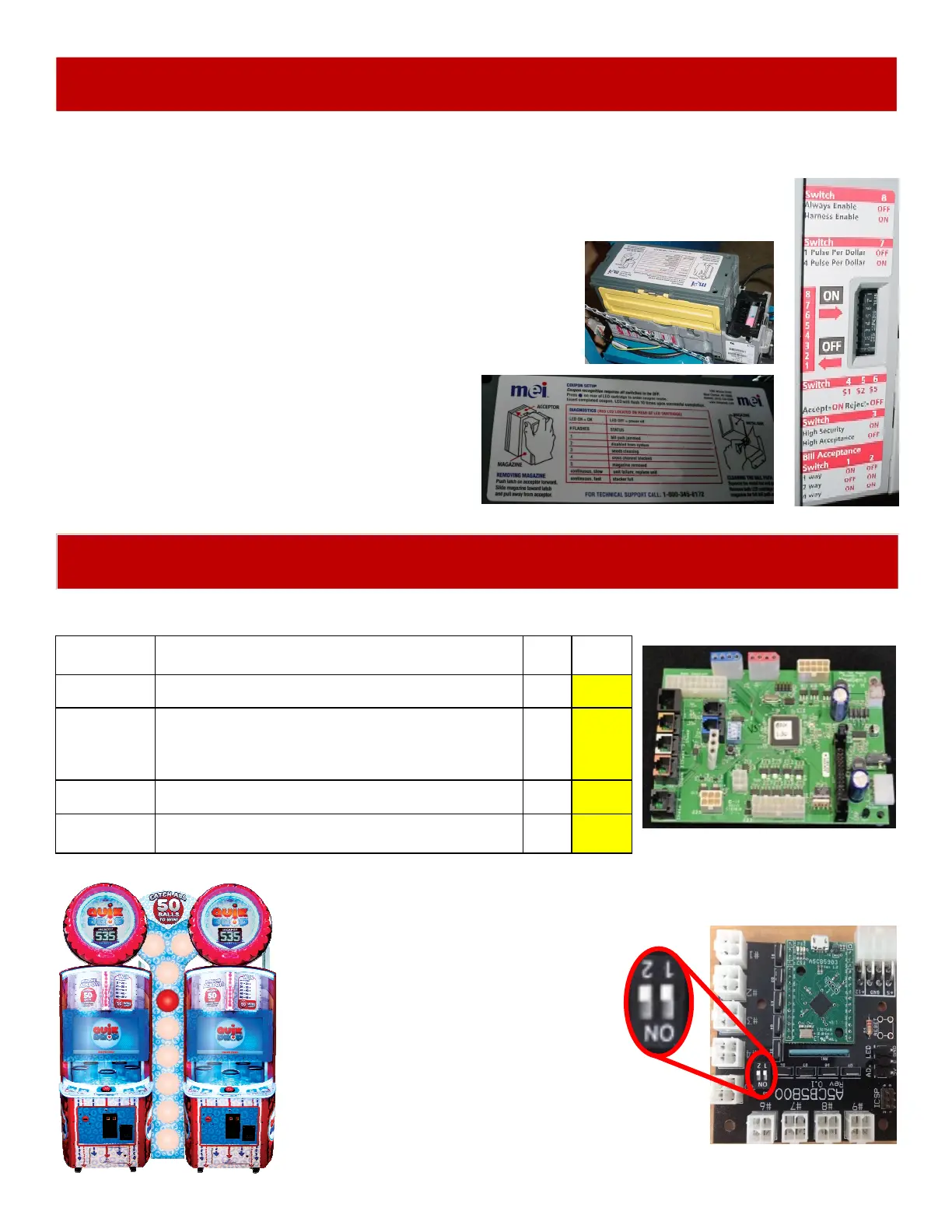

Bay-Tek quik drop - Bill Acceptor Diagnostics; Dipswitch Settings


The Newgen Board has a bank of 4 dipswitches.
BILL ACCEPTOR DIAGNOSTICS
DIPSWITCH SETTINGS
Determine if Bill Acceptor has power:
Turn game ON—The bill acceptor should make noise as stacker cycles and green lights on
outside bezel should flash.
If NO power:
Use meter to measure 110 AC voltage at cable going into Bill
Acceptor from power strip.
If power is OK:
Clean Bill Acceptor path to make sure there is nothing jamming unit.
Check dipswitch settings on side of acceptor.
Make sure switch # 8 is OFF for Always Enable
ERROR CODES
Count the number of flashes on front bezel of Bill
Acceptor and follow on Bill Acceptor chart for
repair instructions.
Note: There are many different models and brands of Bill Acceptors that are used on redemption games.
Your Bill Acceptor may differ from the unit shown. Standard DBA is MEI # AE2451-U5E Part # A5AC9091
SWITCH DESCRIPTION ON OFF
1 NOT USED
X
2
SAVE TICKETS/CREDITS
Will save tickets and credits after a
power off if set to ON
X
3 NOT USED
X
4 NOT USED
X
If your games have a center link console attached to 2 games:
Set both Dipswitches to OFF on the control board.
In the rare event that you have 3 Quik Drop games
linked together with 2 link kits:
Set one board with Dip #1 ON, #2 OFF
Set the other board with Dip #1 OFF, Dip #2 ON
