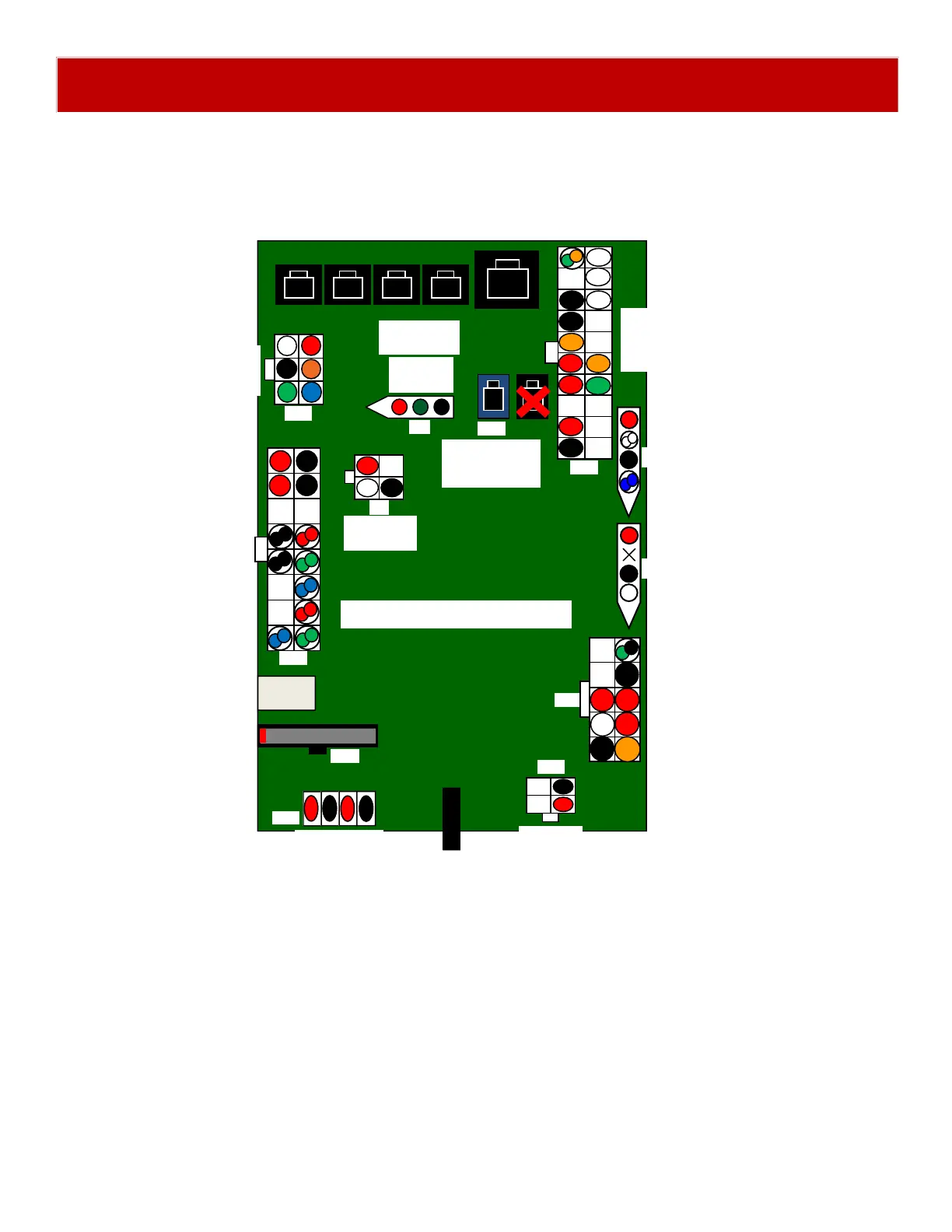

CIRCUIT BOARD PINOUT
J16
J18
J22
J25
J8
J21
J24
J19
J29
J6
J5
AACE5524
Communication
with Motherboard
AACE5809
Bill Acceptor
AACE5815
Coin Door
+12 V
Signal
Com
AACE5810
12 Volt DC
Power In Cable
AACE5820
Menu Buttons &
Counter
AACE5822
Sensors, Motor
Driver Board Signal,
Low Ticket
AACE5815
Ball Drop Button, AC Driver
Board Signal, & Ball Feed
Encoder Sensor
AACE5843
Ribbon Cable to
Jackpot Display
AANEWGEN1-PJ/RBN
AACE5818
Ticket Dispenser
AACE5831
Carousel Encoder
Sensor
A5CORD21
Sound Input From
Motherboard
J9
AACE5828
Cable to
Speakers
AACE5823
Carousel Motor,
Ball Drop Solenoid
& LED’s
