MODEM CONNECTIONS
In addition to the MJ-45 port, the DS71-MD2 Host Communications
Module has two RJ-11 ports for connecting to telephone lines. You may
connect either RJ-11 port to a Telco wall jack using a standard RJ-11
straight through cable. These ports are in parallel and the second port is
available for another telco device.
Connect an external modem to the EIA-232 serial port on the DS71 host
module by using the 25MMJ45MD-6 adapter and MJ08X007 8-bit crossed
modular cable supplied with this unit.

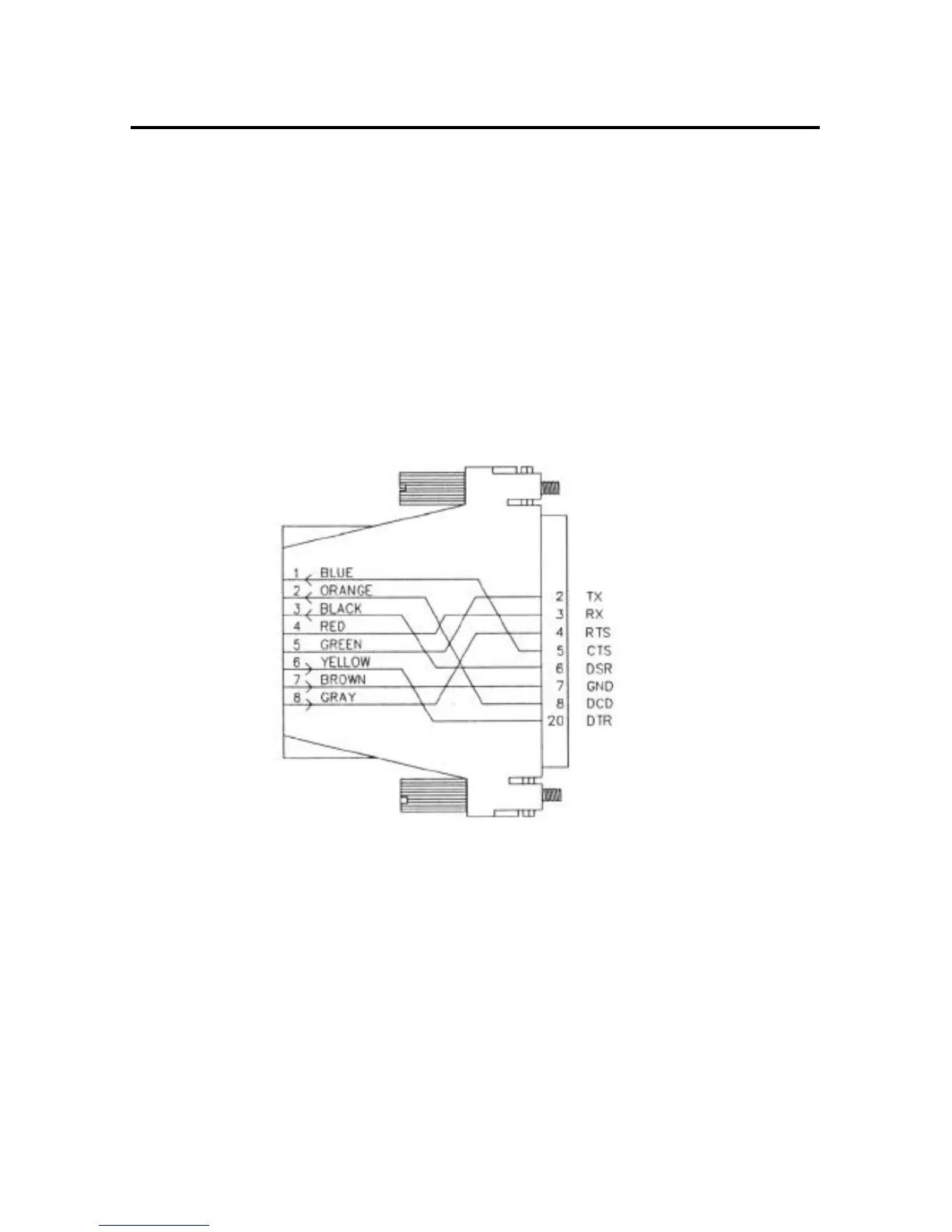

Fig 3: MD-6 MODEM Serial Port Adapter
BayTech Part No 25MMJ45MD-6
