Jumpers
Label Function Note Page
JCMOS Load CMOS Default 3 x 1 header, pitch 2.00mm 33
JCASE1 Chassis Intrusion Connector 2 x 1 wafer, pitch 2.54mm 34
JPSON1 AT/ATX Power Select 3 x 1 header, pitch 2.00mm 34
JCOMPWR1,2 COM1&COM2 / COM3&COM4
RI/+5V/+12V Select
3 x 2 header, pitch 2.00mm 35
JMSATASW MSATA/Mini-PCIe Select 3 x 1 header, pitch 2.00mm 36
JPSEL1 DC-In voltage Select 3 x 1 header, pitch 2.00mm 36

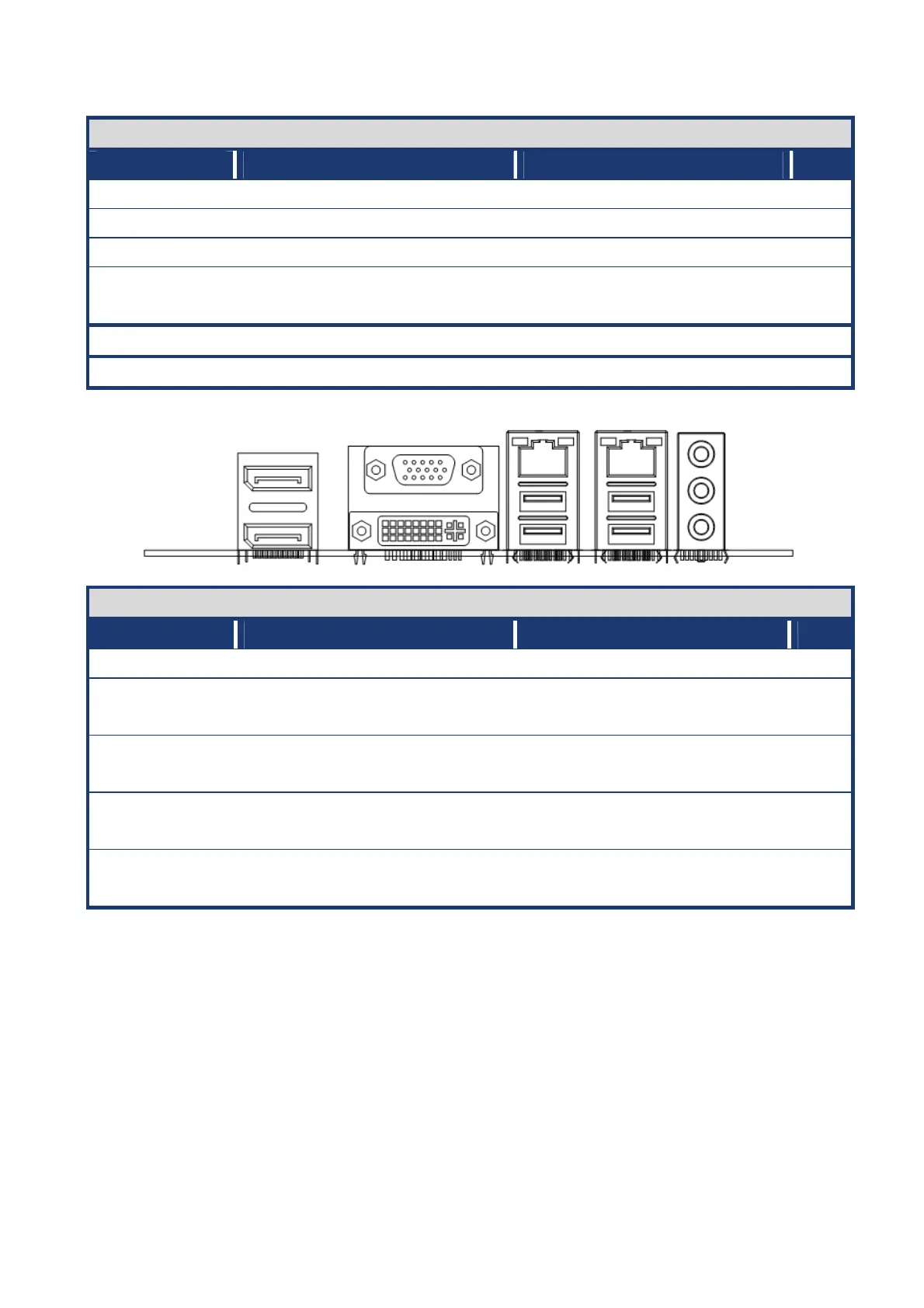

Rear Panel Connector
Label Function Note Page
DP1 Dual Display Port 37
DVI-D_VGA1 VGA Connector
DVI Connector
D-sub 15-pin, female
Dual Link DVI-D; 24 pins
37
LAN1_USB12 RJ-45 Ethernet Connector x 1
USB 3.0 Connector x 2
37
LAN2_USB34 RJ-45 Ethernet Connector x 1
USB 3.0 Connector x 2
37
AUDIO1 Line-in Port, Line-out Port,
Microphone Port,
5.1 Channel Audio I/O (3
j
acks) 37
