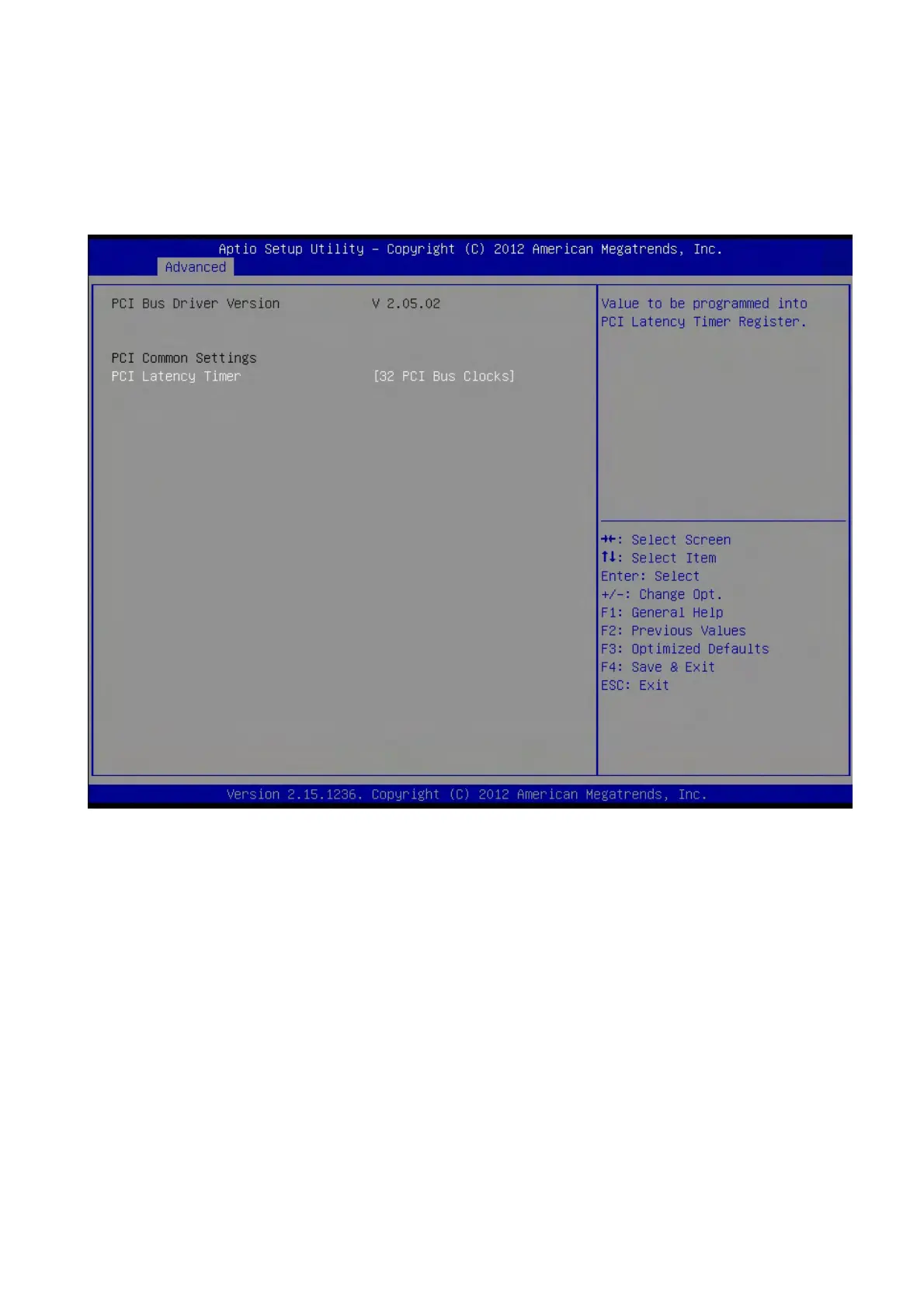

2.4.1 PCI Subsystem Setting
The PCI PnP menu items allow you to change the advanced settings for PCI/PnP devices.
The menu includes setting IRQ and DMA channel resources for either PCI/PnP or legacy ISA
devices, and setting the memory size block for legacy ISA devices.
 PCI Bus Driver Version
Displays the information of PCI Bus Driver Version
 PCI Latency Timer [32 PCI Bus Clocks]
The Configuration options are [32 PCI Bus Clocks] [64 PCI Bus Clocks] [96 PCI Bus Clocks]
[128 PCI Bus Clocks] [160 PCI Bus Clocks] [32 PCI Bus Clocks] [192 PCI Bus Clocks]
[224 PCI Bus Clocks] [248 PCI Bus Clocks]
