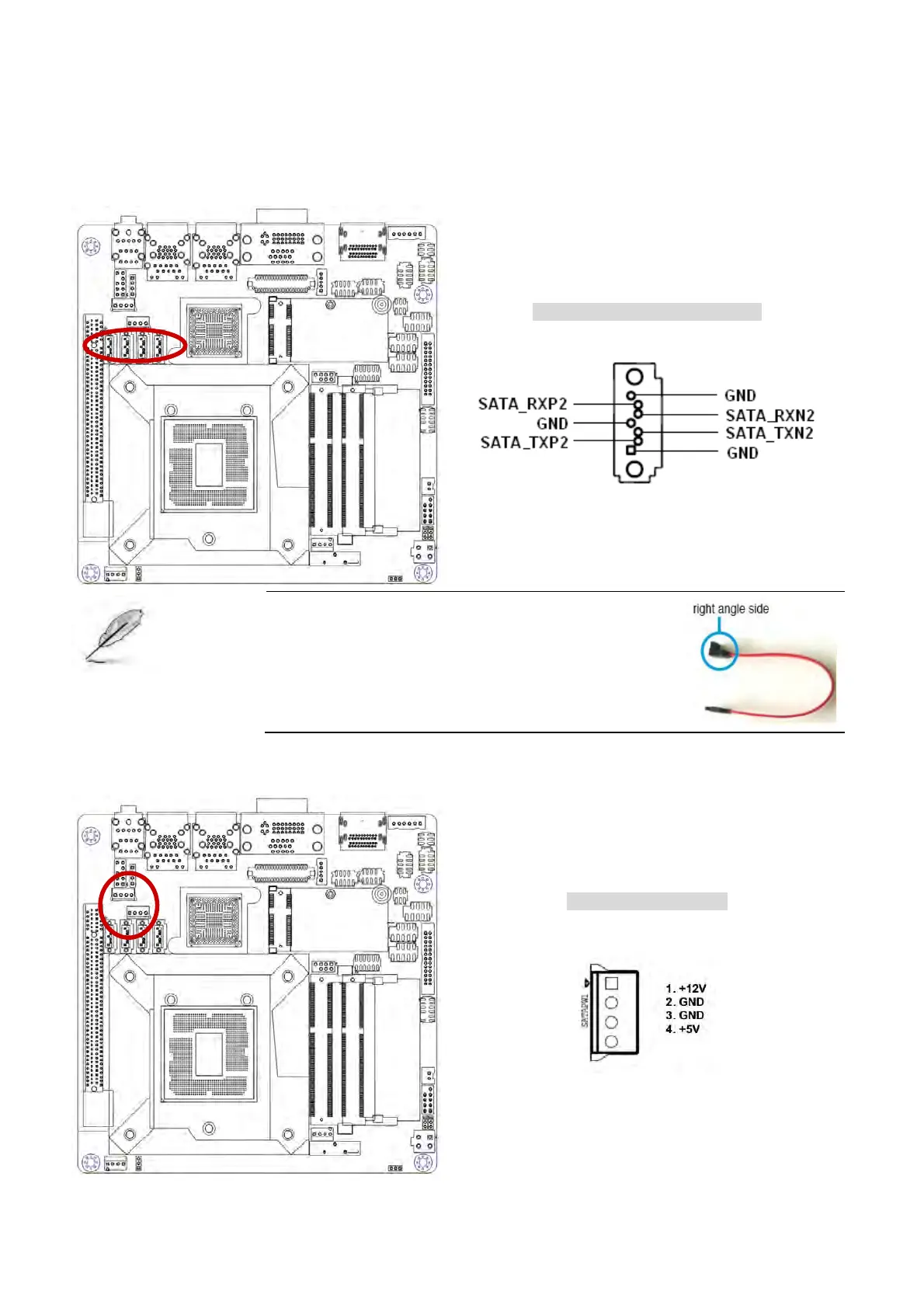

1.8.14 Serial ATA Connector (SATA1, SATA2,SATA3,SATA4)
These connectors support SATA 3.0 and are for the Serial ATA signal cables for Serial ATA
hard disk drives.
SATA1, SATA2, SATA3, SATA4
Connect the right-angle side of SATA signal
cable to SATA device. Or you may connect the
right-angle side of SATA cable to the onboard
SATA port to avoid mechanical conflict with
large graphics cards.
1.8.15 Serial ATA Power Connector
SATAPW1, SATAPW2
