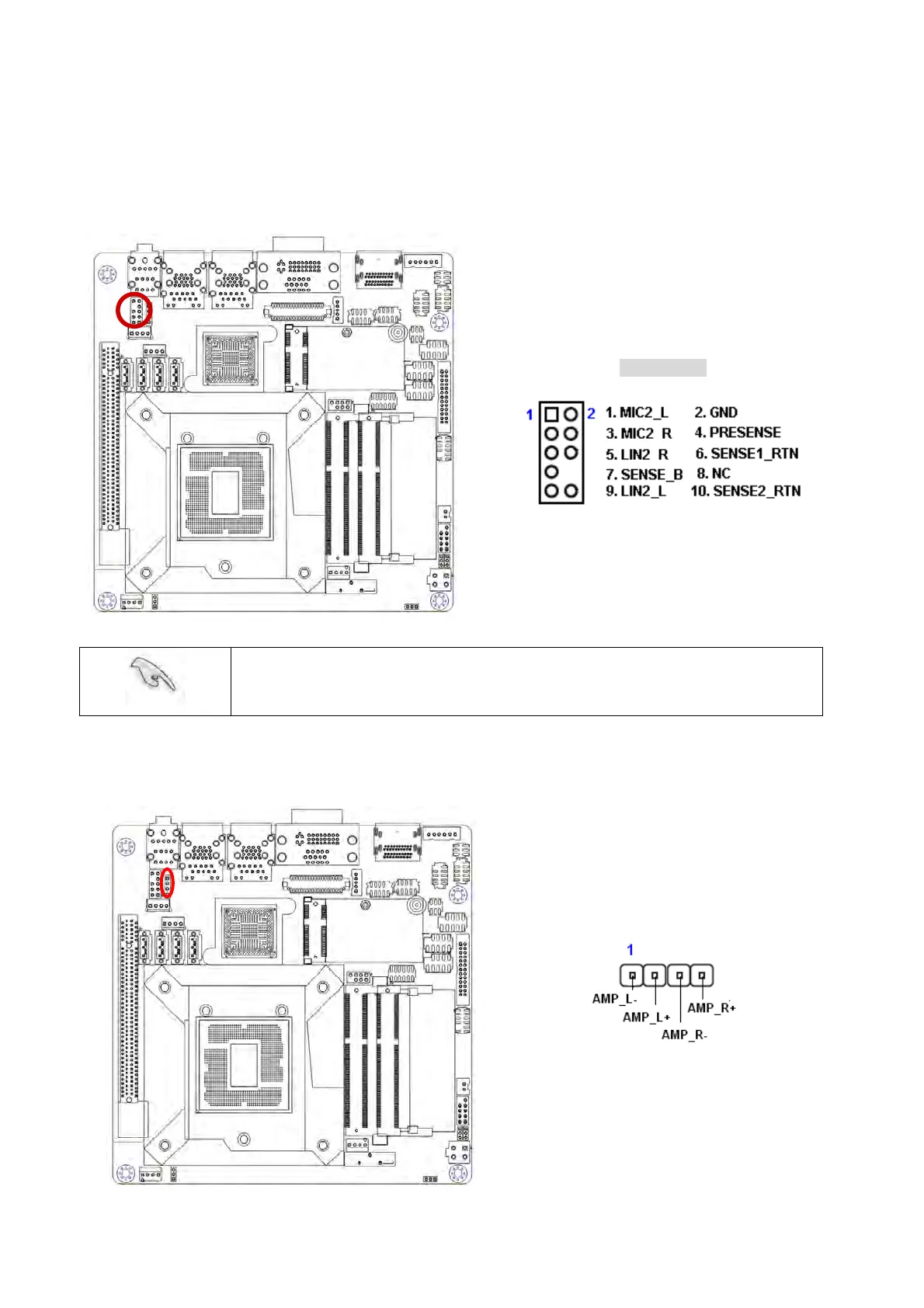

1.8.12 Audio Mic.-In & Line-Out Connector (F_AUDIO1)
This connector is for a chassis-mounted front panel audio I/O module that supports either HD
Audio or legacy AC ‘97 (optional) audio standard. Connect one end of the front panel audio
I/O module cable to this connector.
FP_AUDIO1
For motherboards with the optional HD Audio feature, we recommend
that you connect a high-definition front panel audio module to this
connector to avail of the motherboard’s high‑definition audio capability.
1.8.13 Amplifier Connector (JAMP_1)
