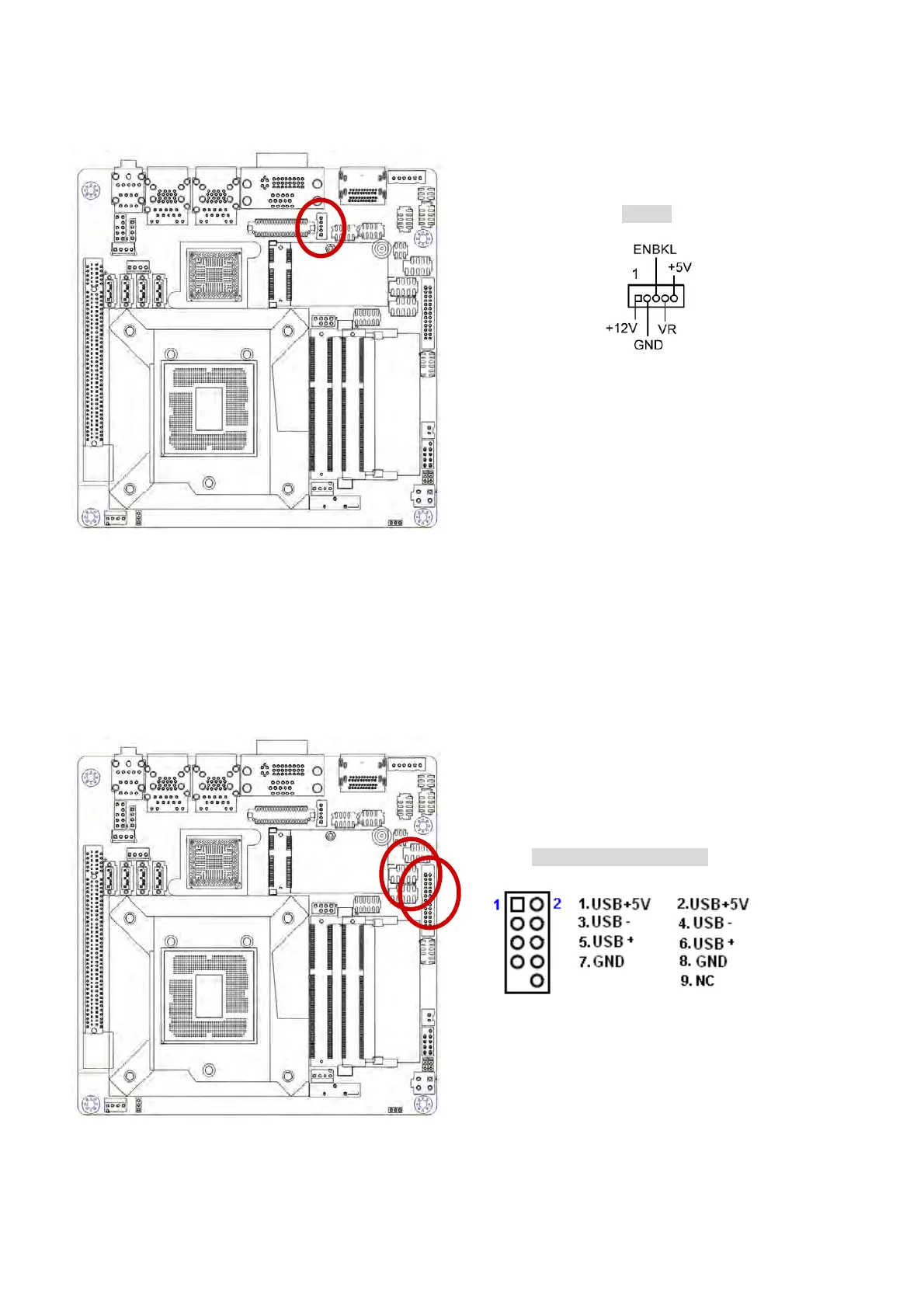

1.8.10 LCD Inverter Connector (JBKL1)
This function will support the control of internal LVDS brightness.
JBKL1
1.8.11 USB connectors (USB56, USB78, USB910)
These connectors are for USB 2.0 ports. Connect the optional USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system chassis.
These USB connectors comply with USB 2.0 specification that supports up to 480 Mbps
connection speed.
USB56, USB78, USB910
