BCM Advanced Research MX87QD - CPU Heatsink and Fan Removal

MX87QD User’s Manual
26 MX87QD User’s Manual

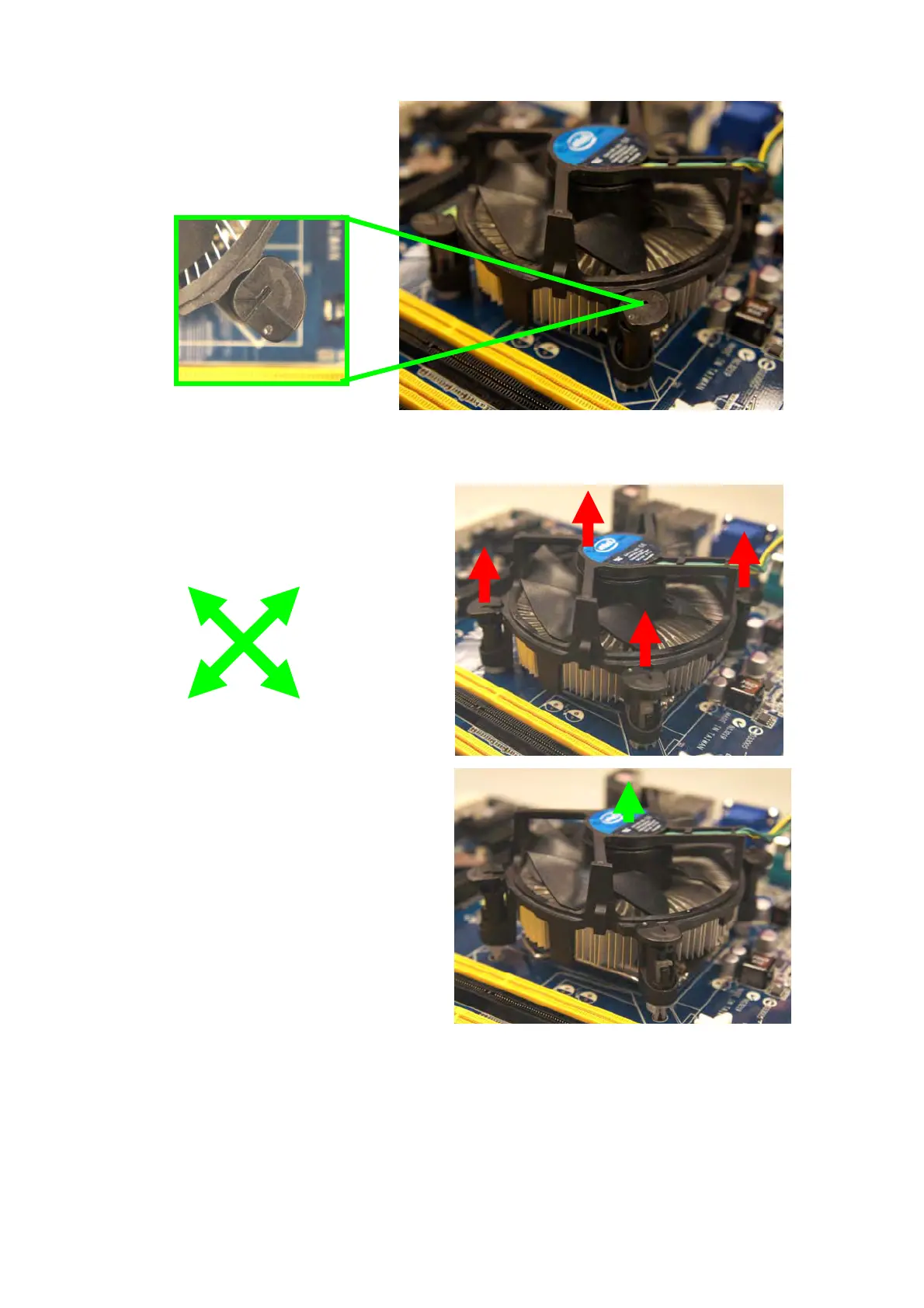

3. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and fan
assembly from the motherboard.
4. Carefully remove the heatsink and fan
assembly from the motherboard.
A
B
A
B
A
A
B
B
