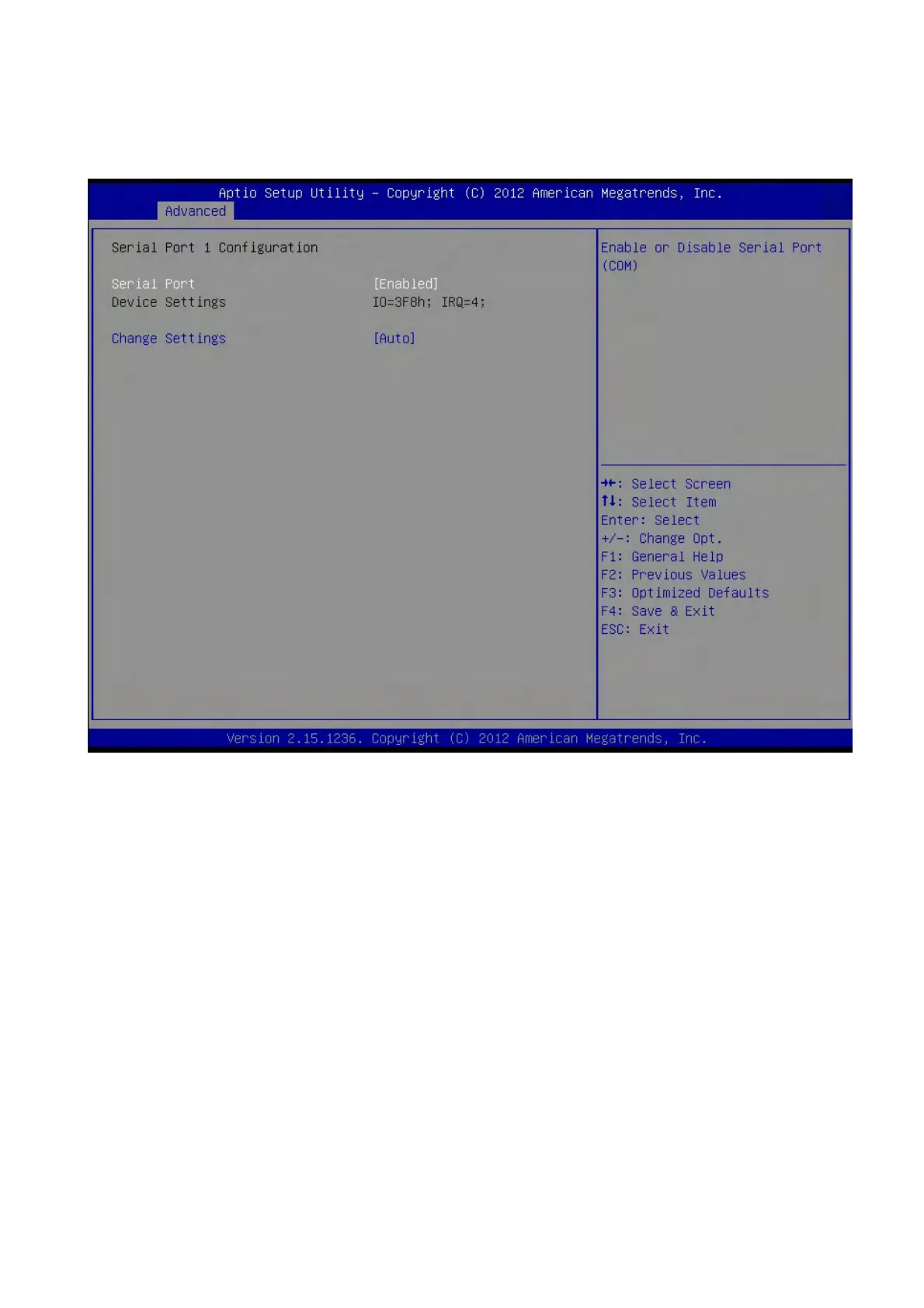

2.4.9.1 Serial Port 1 configuration
Set Parameters of Serial Port 1
Serial Port 1 Configuration
 Serial Port [Enable]
Enable or Disable Serial Port.
Configuration options: [Disabled] [Enabled]
 Device Setting [IO=3F8h; IRQ=4]
 Change Setting[Auto]
Select an optimal setting for Super IO device.
Configuration options: [Auto] [IO=3F8h; IRQ=4] [IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12]
[IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12] [IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12]
[IO=2E8h; IRQ=3, 4, 5, 6, 7, 9. 10, 11, 12]
