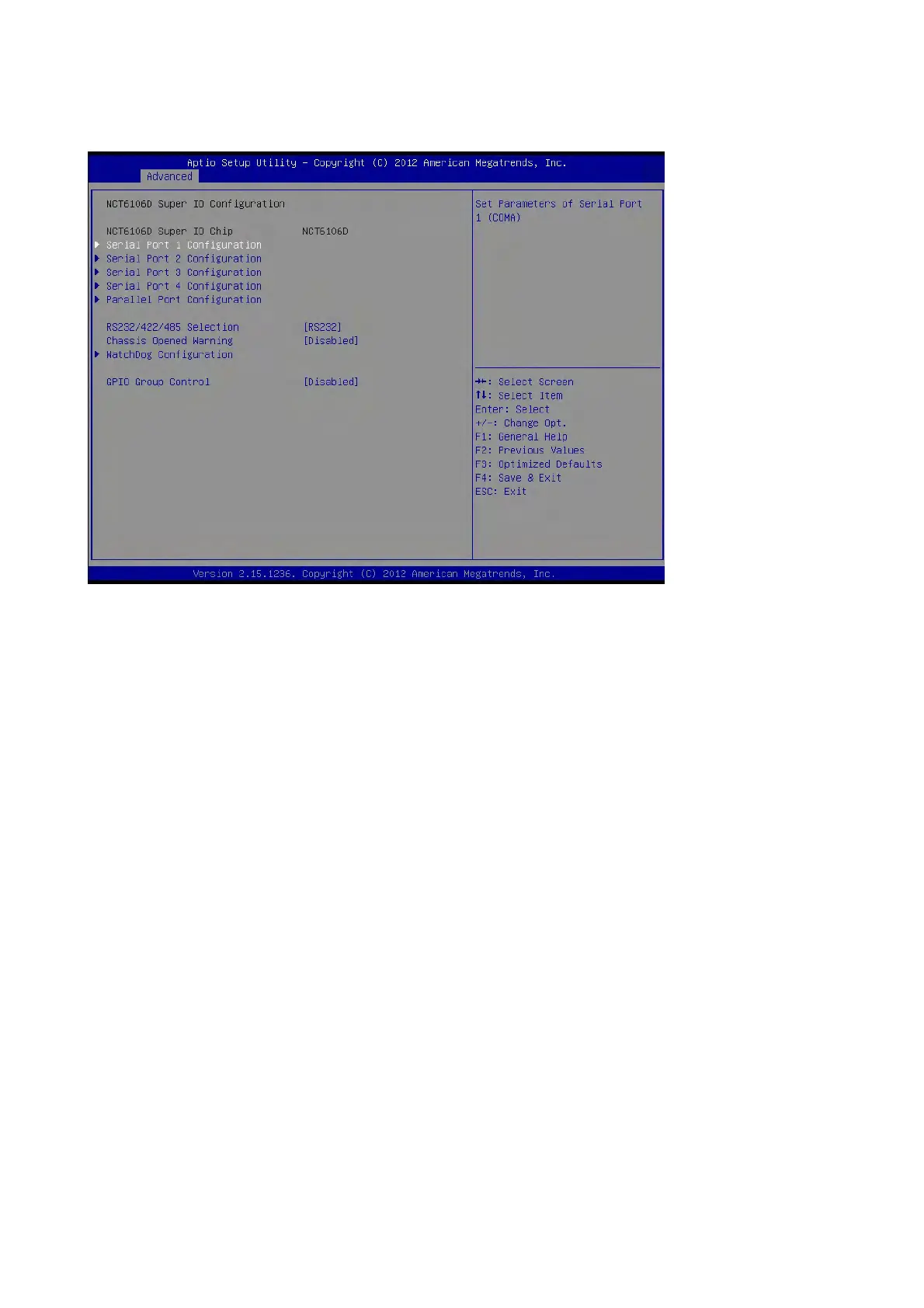

2.4.9.7 COM1 RS232/422/486 Selection
 RS232/422/485 Selection [RS232]
Configuration options: [RS232] [RS485 Half Duplex] [RS485/RS422 Full Duplex]
 Chassis Opened Warning
Configuration options: [Disabled] [Enabled]
 GPIO Group Control [Disabled]
Configure the digital GPIO pins
Configuration options: [Disabled] [Enabled]
Configuration options: [Input] [Output low] [Output high]
