1.7 System Memory
1.7.1 Overview
The mainboard comes with four 240-pin Double Data Rate 3 (DDR3) Dual Inline Memory Modules (DIMM)
slots. You may ONLY use 1066MHz (PC3-8500), or 1333MHz (PC3-10600); Non-ECC, Un-buffered
1.5V DDR3 memory modules on this board (4GB maximum for each slot).

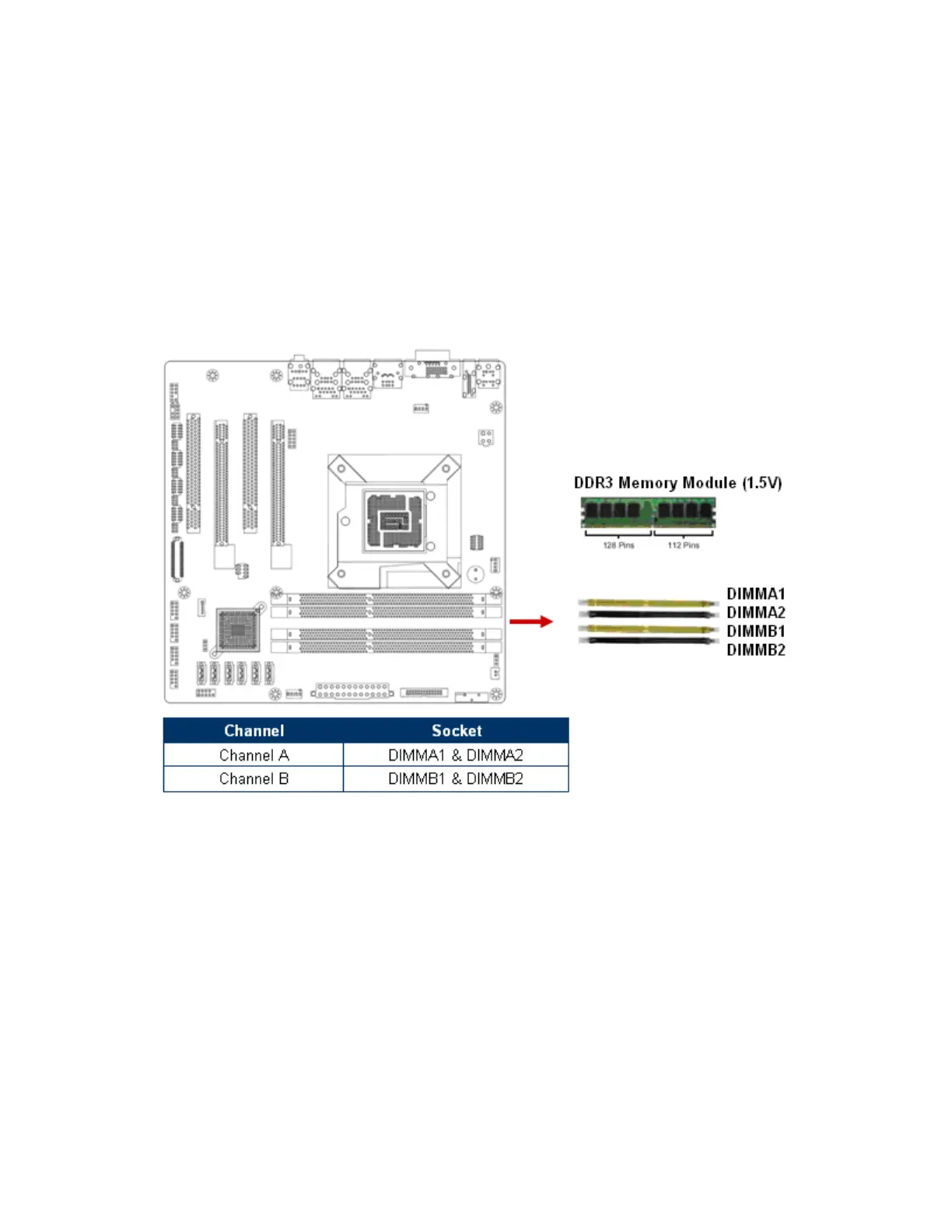

DDR3 DIMMs are notched differently to prevent installation on a DDR2 DIMM socket. The following figure
illustrates the location of memory slots.
