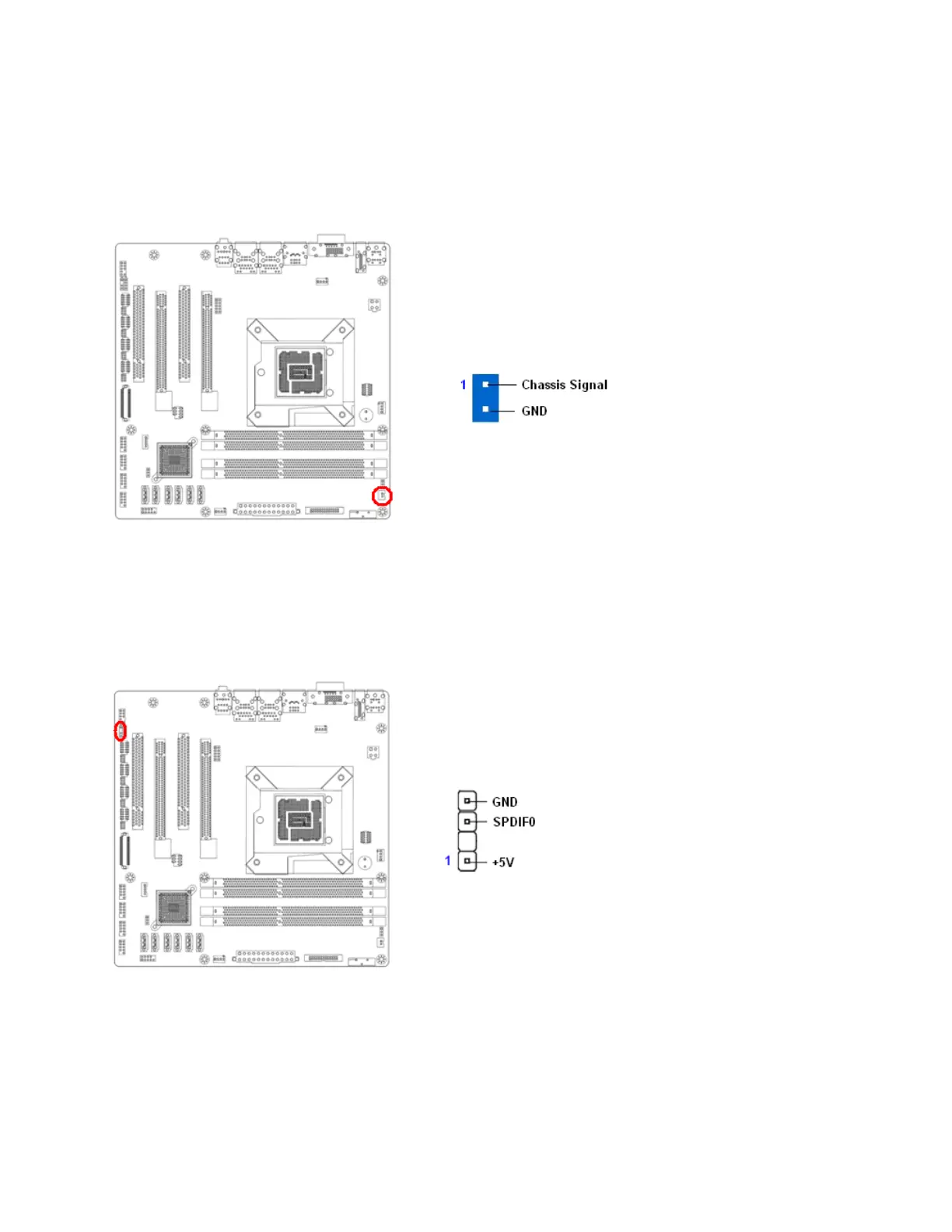

1.10.3 Chassis Intrusion Switch Connector: JCASE1

This connector connects to a 2-pin chassis switch. If the chassis is opened, the switch will be short. The

system will record this status and show a warning message on the screen.

To clear the warning message, you must enter the BIOS and clear the record.

1.10.4 S/PDIF-Out Connector: SPDIF_O

This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect Format) interface for digital

audio transmission.
