37

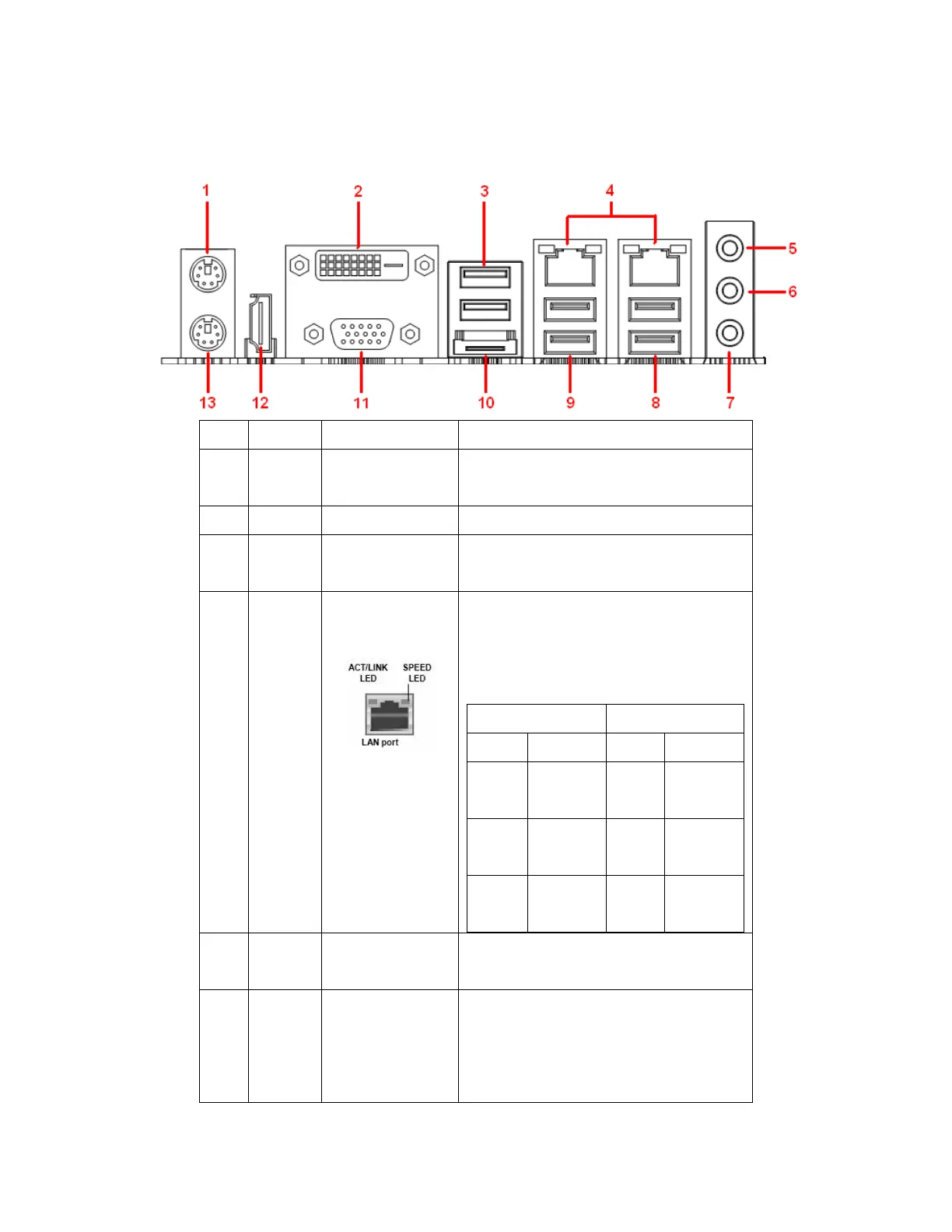

1.9 Back Panel
1.9.1 Back Panel Connectors
Item Name Function Description
1 KBMS PS/2 Mouse
Connector
The standard PS/2 Keyboard/Mouse DIN
connector is for a PS/2 mouse.
2 DVI DVI Video Port DVI-D 24-Pin Connector.
3 USB01 USB 2.0 Connectors These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB2.0 devices.
4 LAN1/
LAN2
Gigabit LAN
(RJ-45) Connectors
This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to
the table below for the LAN port LED indications.
ACT/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps
connection
Orange Linked Orange 100Mbps
connection
Blinking Data
activity
Green 1Gbps
connection
5 AUDIO Line-in port
(Light blue)
This port connects a tape, CD, DVD player, or
other audio sources.
6 AUDIO Line-out port
(Lime)
This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel
configuration, the function of this port becomes
Front Speaker Out.
To Next Page
