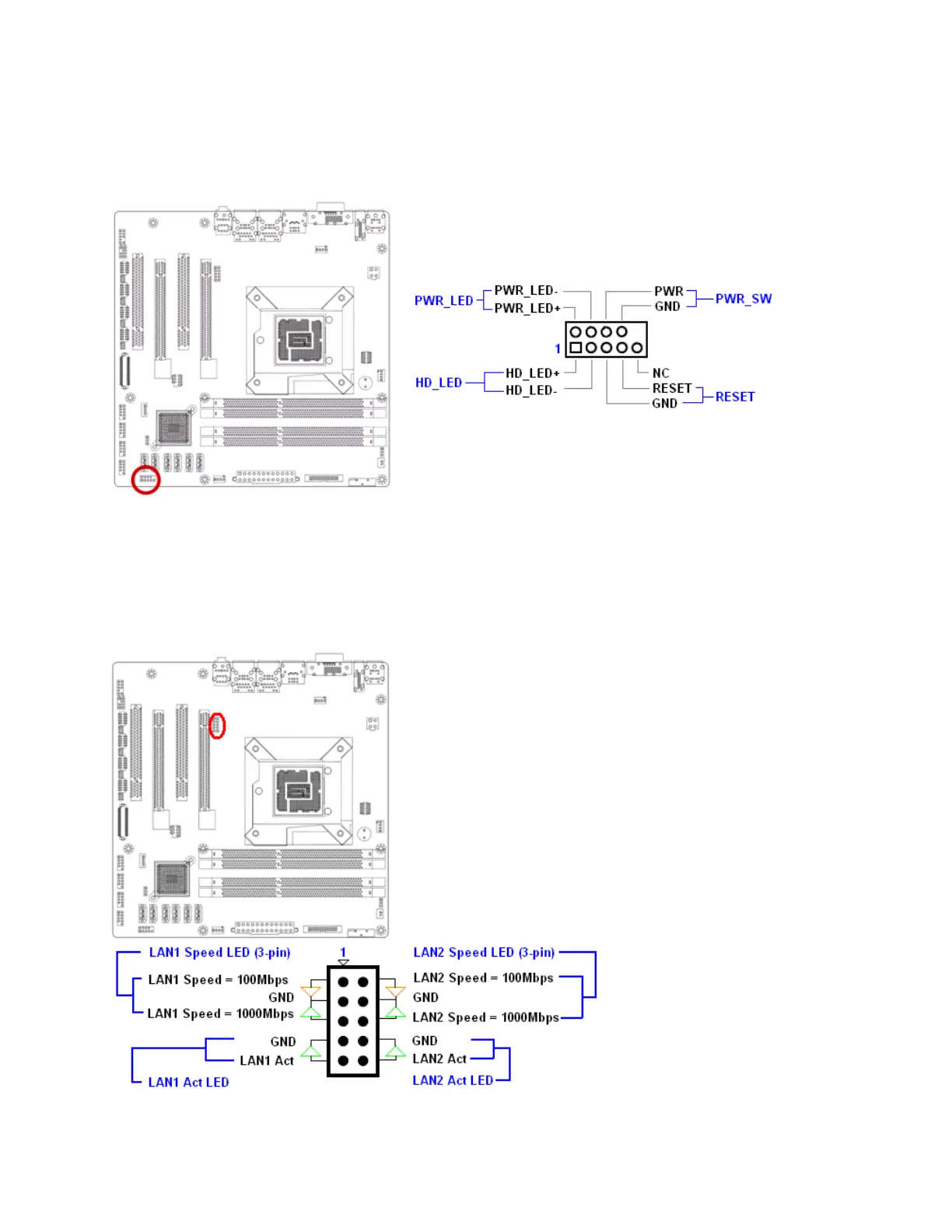

1.10.10 Front Panel Connectors: F_PANEL
These connectors are for electrical connections to the front panel switches and LEDs. The “F_PANEL1”
connector is compliant with Intel® Front Panel I/O Connectivity Design Guide.
1.10.11 LANLED Header: LANLED1
The “LANLED1” header provides the option for front panel to display the LED status simultaneously with
the corresponding RJ45 port. For the LAN speed LED connection, a “Dual-band Common Cathode LED”
(3-pin LED) is recommended.
