1.10 Connectors/ Headers

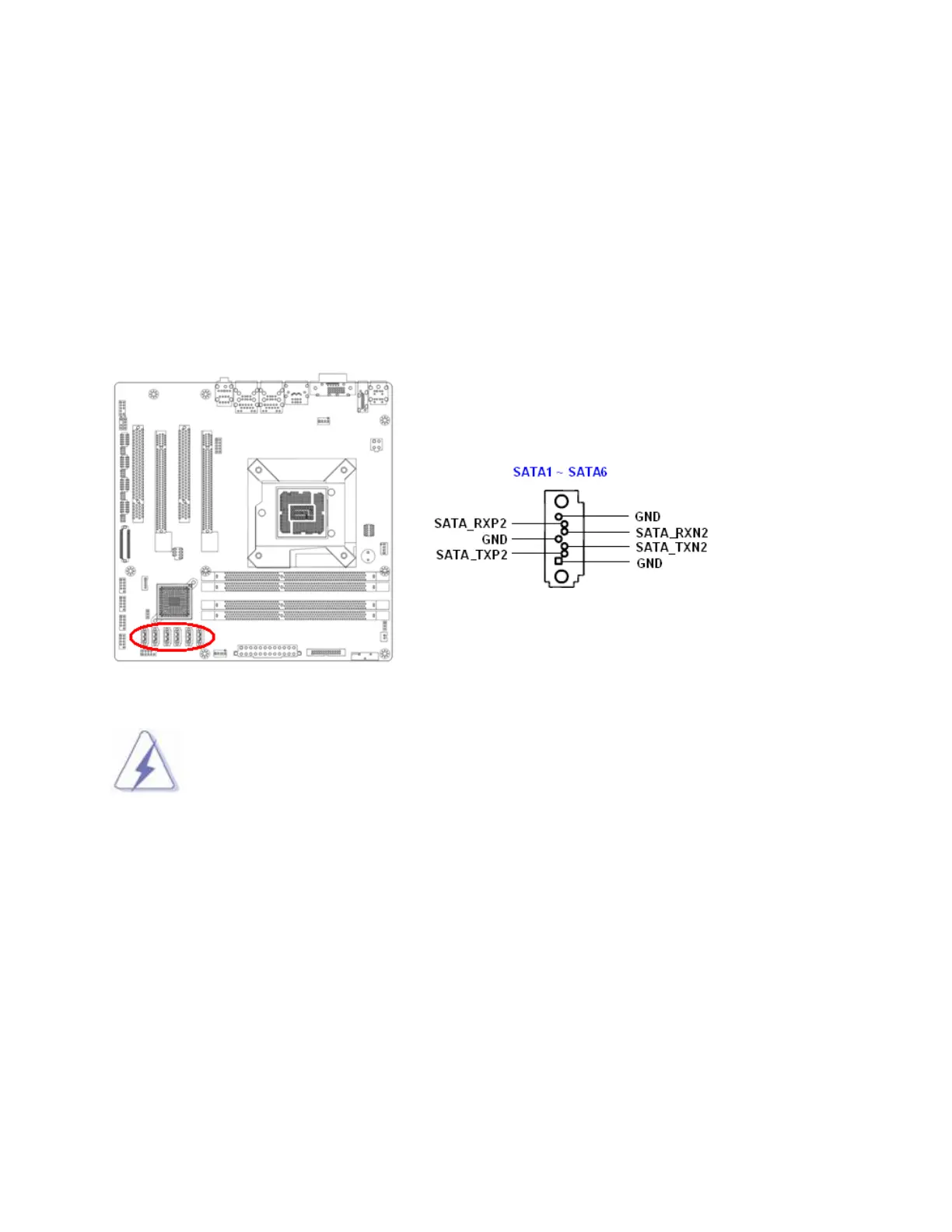

1.10.1 Serial ATA Connectors: SATA3.0: SATA1, SATA2
SATA2.0: SATA4, SATA5, SATA6
SATA ports “SATA1” and “SATA2” (in red color connectors) support SATA3.0 standard, which is backward
compatible with SATA2.0 and SATA1.0 standard.
SATA ports “SATA3” to “SATA6” (in blue color connectors) support SATA2.0 standard, which is backward
compatible SATA1.0 standard.
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise, data loss may
occur during data transmission.
