3.6.11 Serial Port 1 Configuration
Set Parameters of Serial Port 1

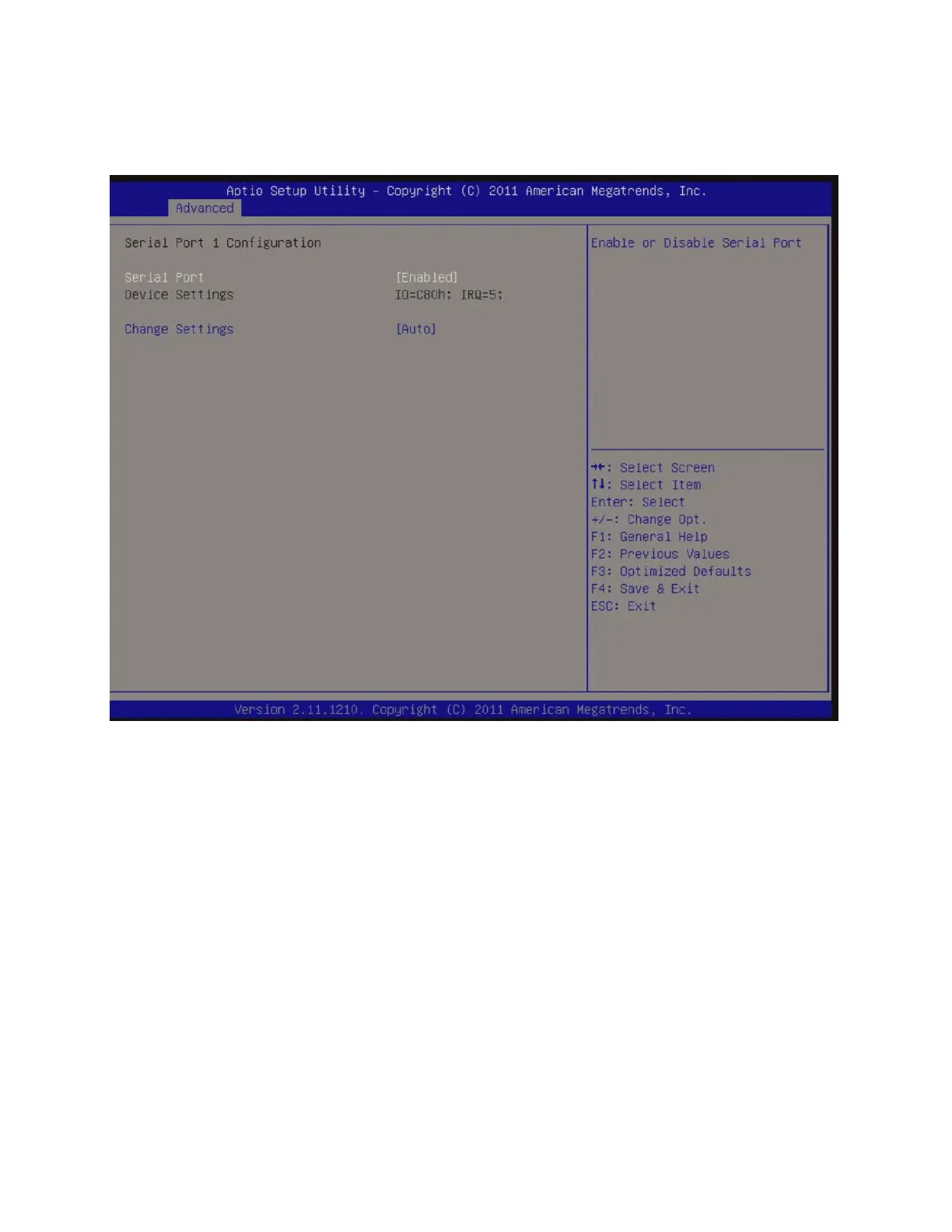

Serial Port 1 Configuration
• Serial Port [Enabled]
Enable or Disable Serial Port.
Configuration options: [Disabled], [Enabled]
• Device Setting [IO=C80h; IRQ=5]
• Change Setting [Auto]
Select an optimal setting for Super IO device.
Configuration options: [Auto], [IO=C80h; IRQ=5], [IO=C80h; IRQ=5, 7, 10, 11], [IO=C88h; IRQ= 5, 7, 10,
11], [IO= C90h; IRQ=5, 7, 10, 11], [IO=C98h; IRQ= 5, 7, 10, 11]
