ADDENDUM 2 –
WIZARD WITH
BESAM AMD-II
DWG NO SIZE
SHEET SCALE
CAGE CODE
A
PH: (412)782-5150 FAX: (412)782-5154
B.E.A., Inc.
100 Enterprise Drive Pittsburgh, PA 15275
DATE:
NONE 1 OF 1
FILE OF:
DRAWN BY:
KJG
REV
BGDM
24 NOV 2000

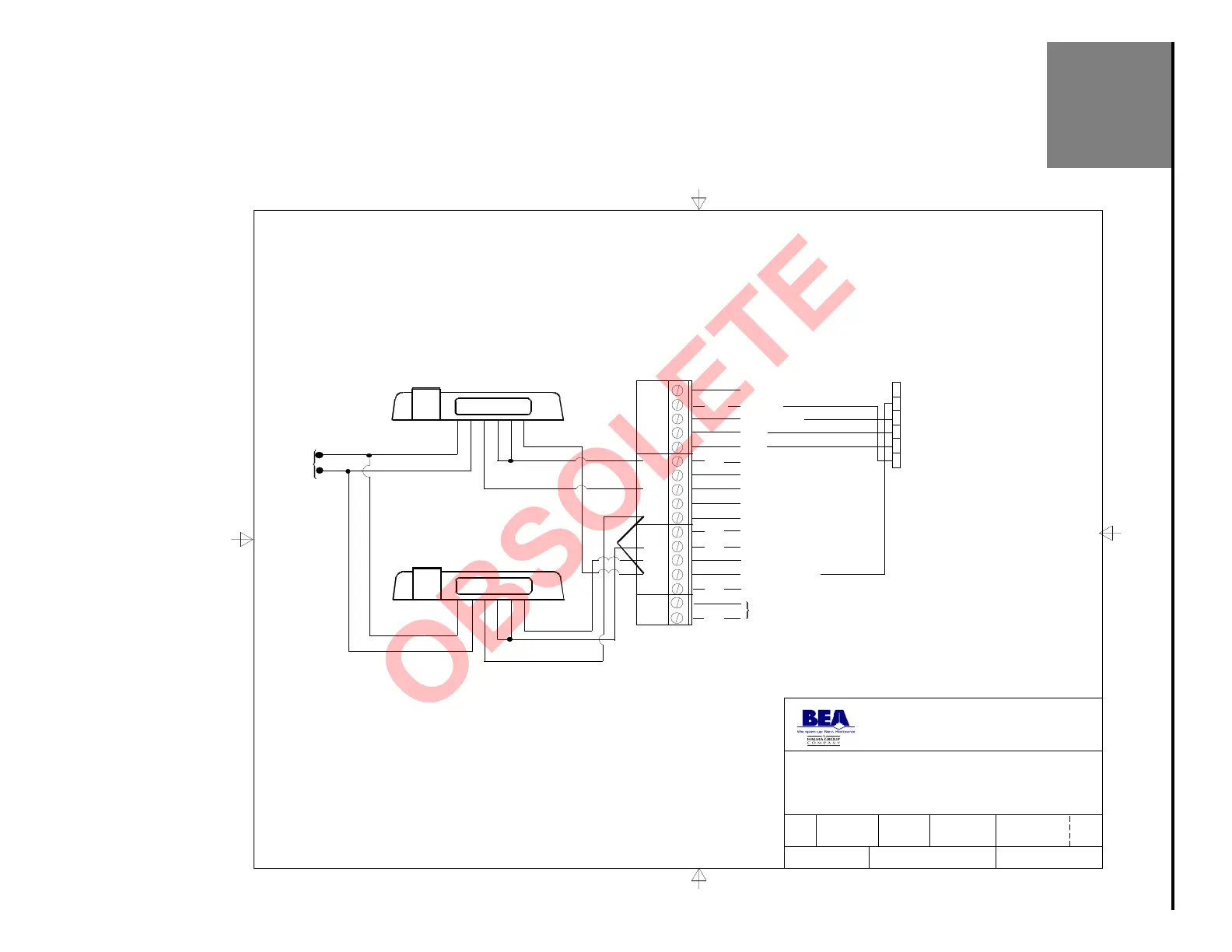

TITLE: BESAM CUJ-9 AMD SLIDING DOOR
WITH WIZARD SYSTEM
EXTERIOR WIZARD
INTERIOR WIZARD
B
R
O
W
N
B
L
U
E
B
L
A
C
K
R
E
D
W
H
I
T
E
B
R
O
W
N
B
L
U
E
B
L
A
C
K
R
E
D
G
R
E
E
N
Reset
0 VDC
Part. open
Exit
Off
0 VDC
Stop Impulse
Pres. Impulse 1
C-Switch; 0 v
Pres. Impulse 2
18 VDC
0 VDC
Outer Impulse
Inner Impulse
18 VDC
PS-
6
*
* Optional - connect
to reset (TB1 R) if required.
LOCKING DEVICE
24 VAC
G
R
E
E
N
W
H
I
T
E
BESAM CUJ-9 AMD II SLIDING DOOR WITH WIZARD SYSTEM
608
NOTE: 1) DO NOT CONNECT TO C SWITCH COMMON.
2) OBSERVE POLARITY WITH BROWN CONNECTING
TO GROUND (0 VDC).
3) A JUMPER MUST BE INSTALLED IN PINS 9,13 ON
CONTROL BOX FOR RE-ENTRY SENSOR IN
ONE-WAY TRAFFIC AS PER ANSI STANDARD 8.2.3.
