BEA WIZARD SMR - Addendum 3: Besam Uni-Slide Integration; Besam Uni-Slide Wiring Diagram

75.0127 V3 Jul. 2003 [Rev. 8/13/2004]
Page 15 of 17
ADDENDUM 3 – WIZARD WITH BESAM UNI-SLIDE
GREEN WHITE B
R
O
W
N
BLUE
B
L
A
C
K
R
E
D
GREEN WHITE B
R
O
W
N
BLUE
B
L
A
C
K
R
E
D
WIZARD EXTERIOR
WIZARD INTERIOR
24 V
TRANSFORMER
115 VAC
UniSlide Control
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
INNER IMPULSE
- 0 VDC
+ 24 VDC
- 0 VDC
OUTER IMPULSE
KEY IMPULSE
SYNCHRONIZING INPUT
SYNCHRONIZING OUTPUT
+ 24 VDC
- 0 VDC
PRESENCE IMPULSE 2
PRESENCE IMPULSE 1
STOP IMPULSE
C-SWITCH/MONITORED INNER IMPULSE
+ 24 VDC
MONITORED SAFETY/ONLY PHOTOCELL

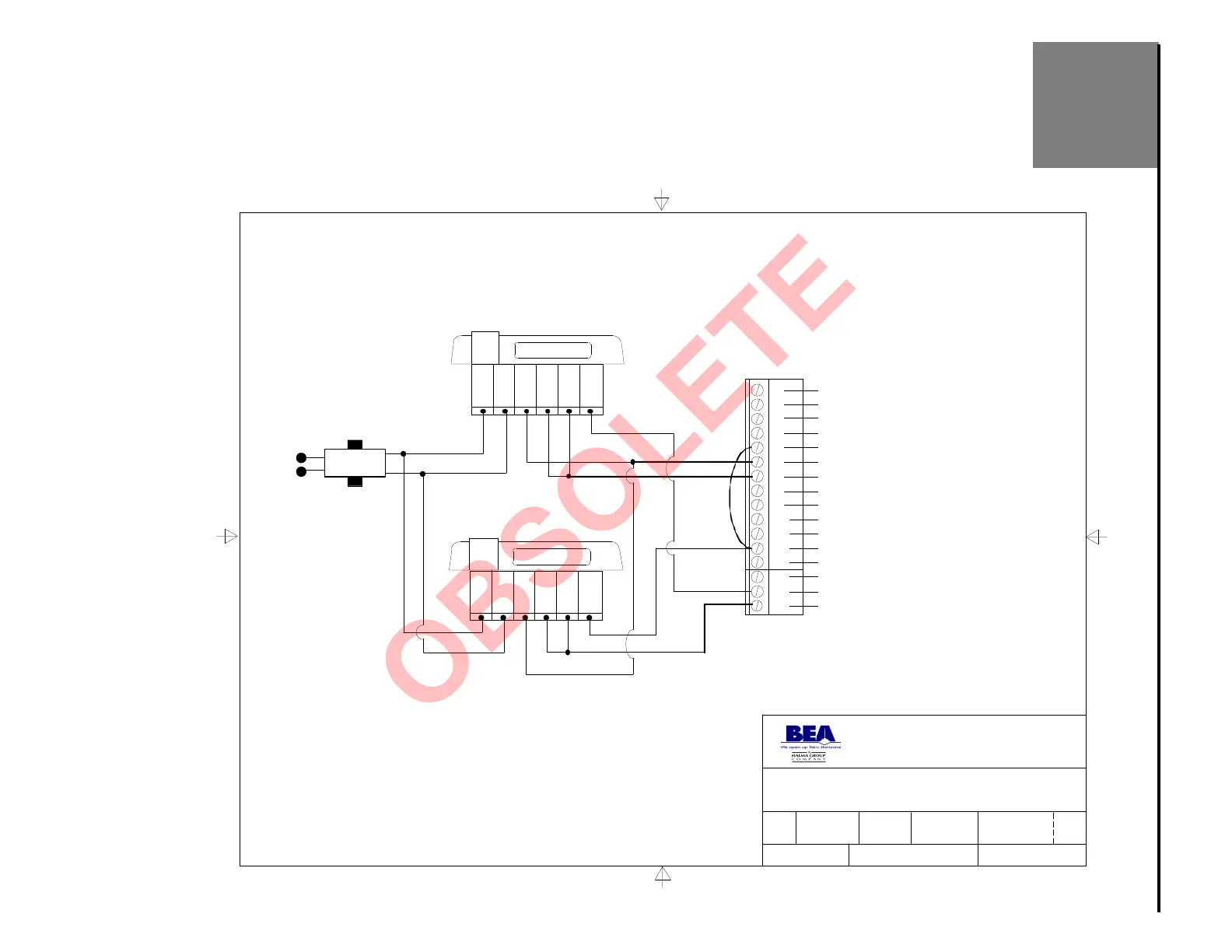

BESAM UNISLIDE SLIDING DOOR WITH WIZARD SYSTEM
SIZE:
SHEET:SCALE:
A
PH: (412) 249-4100 FAX: (412) 249-4101
B.E.A., Inc.
100 Enterprise Drive Pittsburgh, PA 15275
DATE:
www.beasensors.com
CAGE CODE: DWG NO: FILE OF: DRAWN BY: REV:
1 OF 1
NTS
Tech Support
80.0163 GDM B
11 Mar 2003
TITLE: BESAM UNISLIDE SLIDING DOOR
WITH WIZARD SYSTEM
NOTE: 1) DO NOT CONNECT BROWN WIRES TO C-SWITCH COMMON.
2) OBSERVE POLARITY WITH THE BROWN WIRE CONNECTED
TO GROUND (0 VDC).
3) A JUMPER MUST BE INSTALLED BETWEEN PINS 5, 12 ON THE CONTROL
BOX TO ALLOW FOR RE-ENTRY SENSOR IN ONE-WAY TRAFFIC MODE TO
COMPLY WITH ANSI A156.10 SECTION 8.2.3.
OBSOLETE
