BEC MX-200 - VPN Status (IPSec, PPTP, L2 TP, GRE)

Device Configuration
Status – IPSec Status
40
BEC MX-200 User Manual

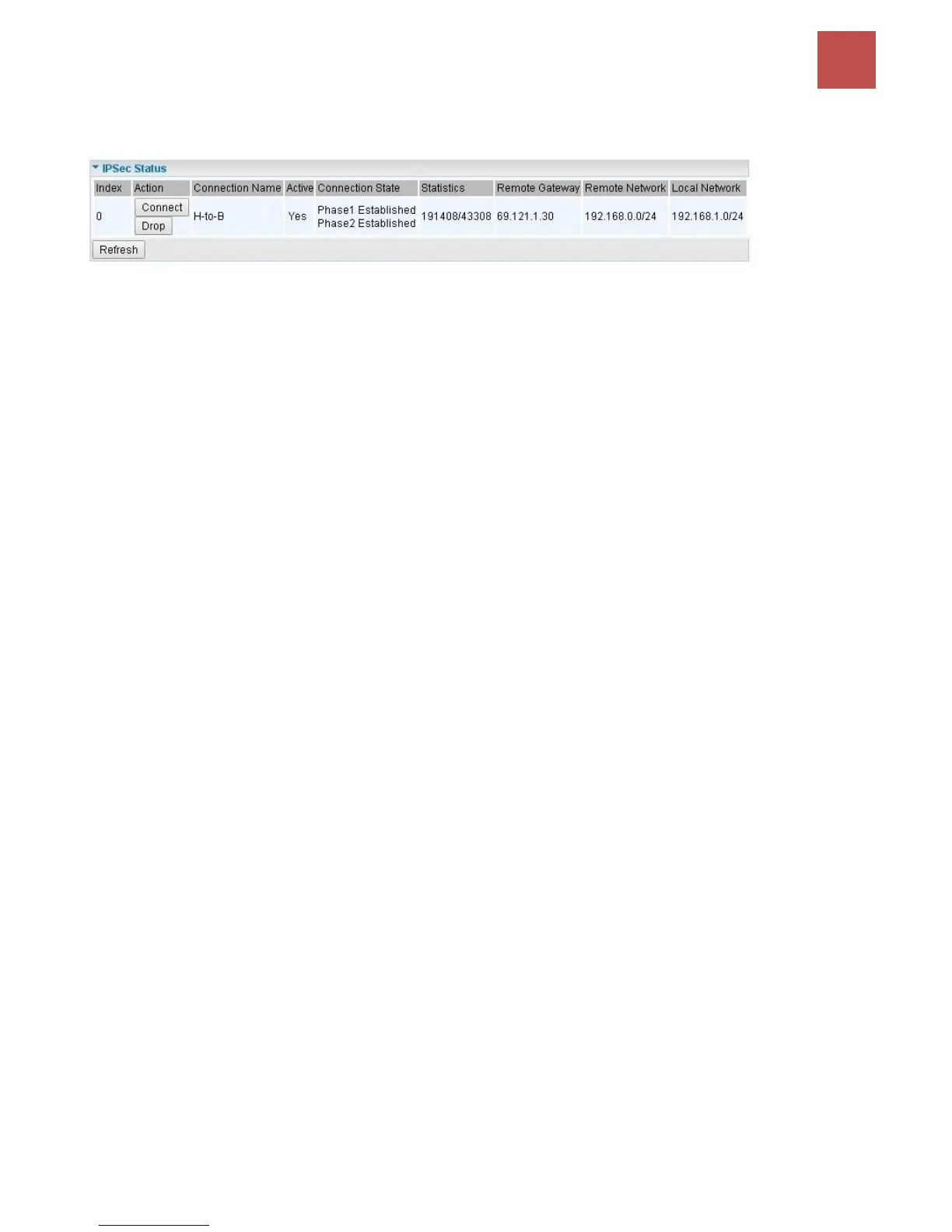

IPSec Status
Index #: The numeric IPSec tunnel indicator.
Action: Connect or Drop the connection.
Connection Name: User-defined IPSec VPN connection name.
Active: Show if the tunnel is active for connection.
Connection State: Show the IPSec phase 1 and phase 2 connecting status.
Statistics: Display the upstream/downstream traffic per session in KB. The value clears when session
disconnects.
Remote Gateway: The IP of the remote IPSec gateway.
Remote Network: The IP and Netmask of remote access range.
Local Network: The IP and Netmask of local access range.
