Device Configuration
Status – L2TP & GRE Status
42
BEC MX-200 User Manual

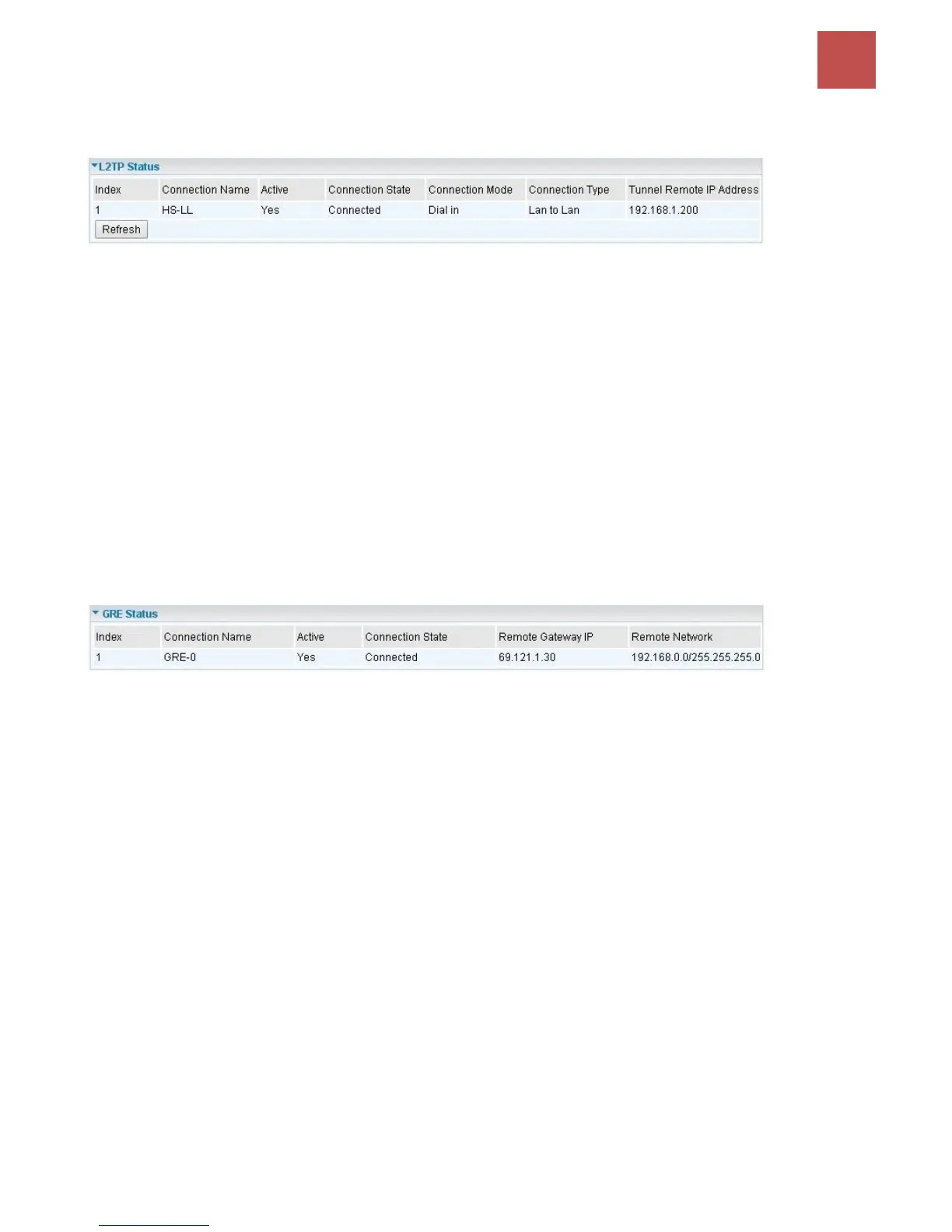

L2TP Status
Index #: The numeric L2TP tunnel indicator.
Connection Name: Display the user-defined L2TP connection name.
Active: Show if the tunnel is active for connection.
Connection State: Show the connecting status.
Connection Mode: The L2TP mode is dial-in or dial-out.
Connection Type: Remote Access or LAN to LAN.
Tunnel Remote IP Address: Display the remote tunnel IP address.
Refresh: Click this button to refresh the connection status.
GRE Status
Index #: The numerical GRE tunnel indication.
Connection Name: Display the user-defined GRE connection name.
Active: Show if the tunnel is active for connection.
Connection State: Show the connecting status.
Remote Gateway IP: The IP of the remote GRE gateway.
Remote Network: Display the remote network.
