4 Product description BECKHOFF Drive Technology
20 Version 2.5 AX5000

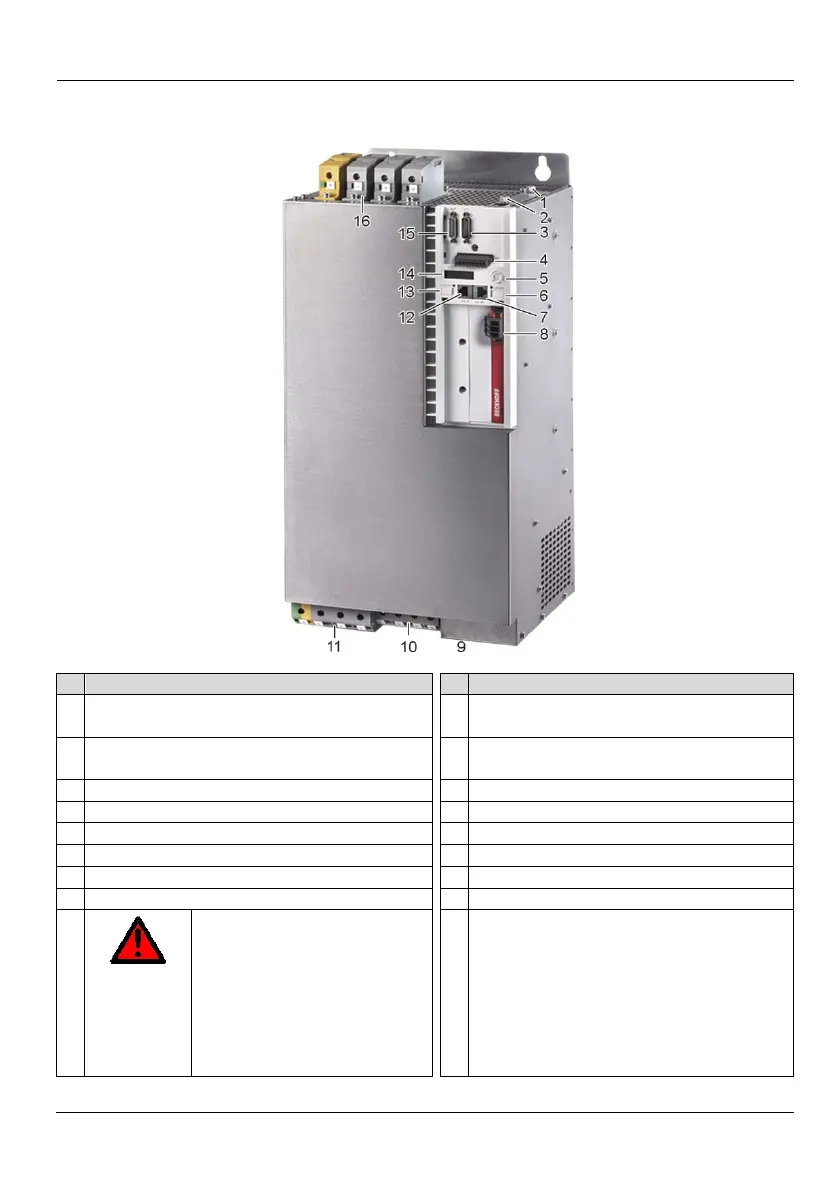

4.6 General overview (AX5190 and AX5191)
Item description:
No
Designation
No
Designation
1
X4x – optional slot for expansion cards
9
X14 – sensor for motor temperature
and brake
2
X3x – optional slot for safety card
10
DC link output (890 V DC voltage)
Connection for external brake resistor
3
X12 – feedback connection, resolver
11
Motor connection (U,V,W,PE)
4
X06 – connection for digital inputs and outputs
12
X04 – socket for EtherCAT input
5
Navigation rocker
13
Labeling field
6
Labeling field
14
Display
7
X05 – socket for EtherCAT output
15
X11 – feedback connection, encoder
8
X03 – power supply 24 V DC input
16
X01 – mains supply 400 – 480 V
DANGER
Max. 875 V DC voltage at the
DC link terminals. Dangerous
voltage may be present for
30
minutes after the device is
switched off. The device is
safe once the voltage has
fallen below 50 V.
(Check voltage)
