Beckhoff AX5000 Series Start-Up

5 Installation BECKHOFF Drive Technology
30 Version 2.5 AX5000

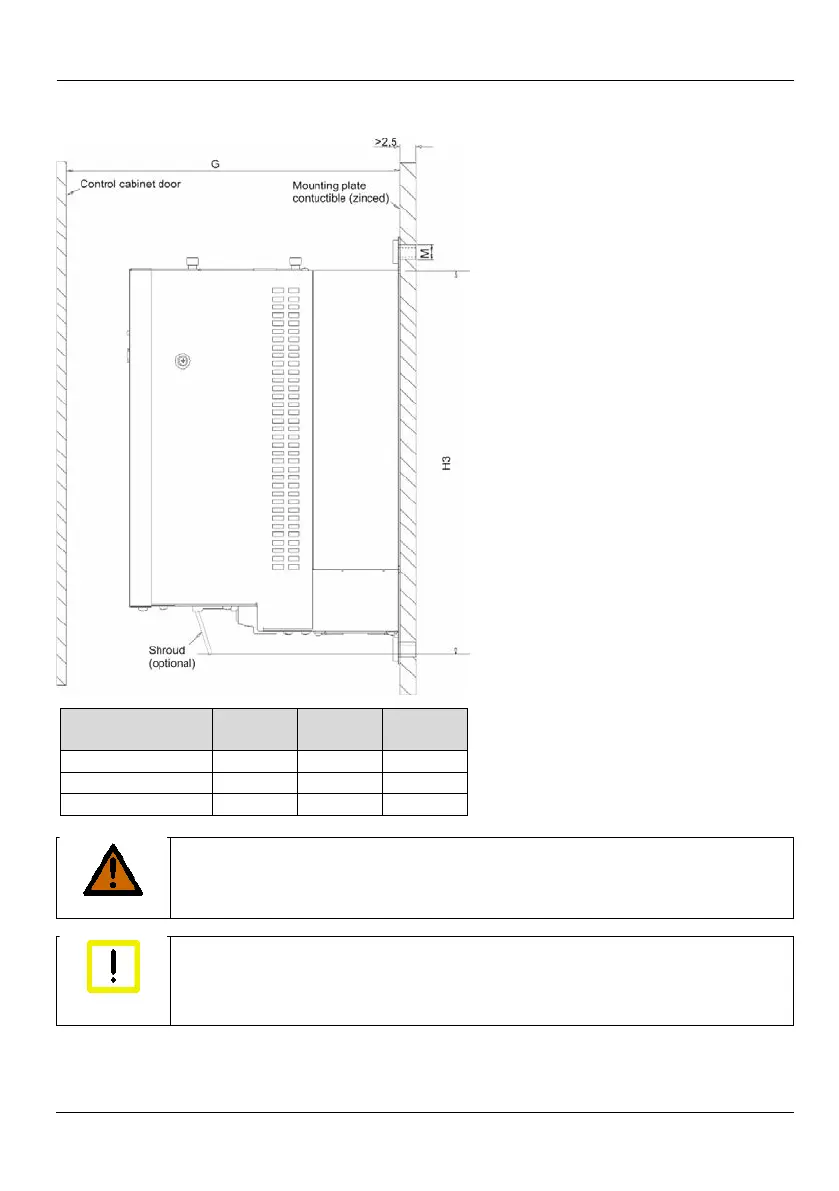

5.1.1 Installation in the control cabinet
AX
G
[mm]
M
[mm]
H3
[mm]
5160 and 5172
≥ 300
4 x M5
445
5190 and 5191
≥ 300
4 x M8
640
5192 and 5193
≥ 500
4 x M8
640
WARNING
Caution - Risk of injury through electric shock!
The mounting plate must be earthed according to the statutory regulations.
Attention
Connection of the protective earth conductor on the AX5000:
The servo drives AX5000 have earthing pins on the device housing. To
attach the protective earth conductor via the grounding stud, use at least
the cross section that is applied to the wide voltage input “X01” (PE).

Beckhoff AX5000 Series Specifications

General

Control	EtherCAT
Protection Class	IP20
Feedback	Resolver, EnDat, Hiperface, SSI
Safety	STO (Safe Torque Off)
Relative Humidity	5% to 95%, non-condensing
Certifications	CE, UL, cUL
Operating Temperature	0…+45 °C
