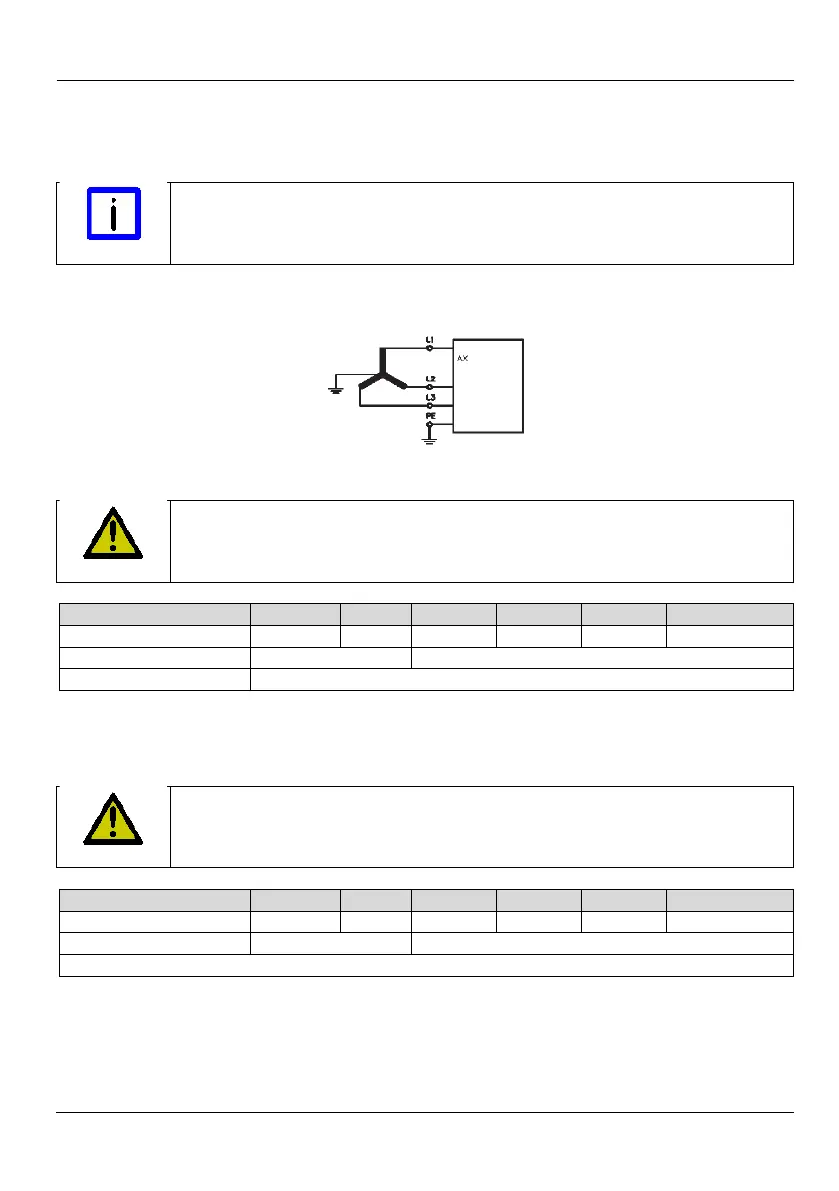

5.2.1 Mains supply connection (X01)
The servo drives of the AX5000 series are equipped with a wide voltage input "X01" and can
be connected to voltage systems three-phase 400 V
AC -10%
- 480 V
AC +10%
.
Note
Connection to the standard mains supply (TT/TN) with earthed centre is
described below. Connections to other supply systems are not permissible.
Three-phase 400
-10%
- 480
+10%
V
AC
5.2.1.1 External protection for individual devices, CE-compliant
CAUTION
Fire hazard through short circuit!
The recommended fuses are designed for line protection. The servo drives
feature integrated self-protection.
Fusing
AX5160
AX5172
AX5190
AX5191
AX5192
AX5193
AC supply
*)
80 AT
100 AT
125 AT
160 AT
200 AT
224 AT
24 V supply
4 AT
10 AT
Brake resistor
electronic
*) Application class "gG" mains fuses according to IEC 60269 or "C" type automatic
circuit breakers must be used.
5.2.1.2 External protection for individual devices, UL-compliant
CAUTION
Fire hazard through short circuit!
The recommended fuses are designed for line protection. The servo drives
feature integrated self-protection.
Fusing
AX5160
AX5172
AX5190
AX5191
AX5192
AX5193
AC supply (max.)
*)
80 A
100 A
125 A
150 A
200 A
225 A
24 V supply (max.)
4 AT
10 AT
Brake resistor
electronic
*) Mains fuses according to type “RK5” min. 480 V must be used.

Beckhoff AX5000 Series Specifications

General

Control	EtherCAT
Protection Class	IP20
Feedback	Resolver, EnDat, Hiperface, SSI
Safety	STO (Safe Torque Off)
Relative Humidity	5% to 95%, non-condensing
Certifications	CE, UL, cUL
Operating Temperature	0…+45 °C
