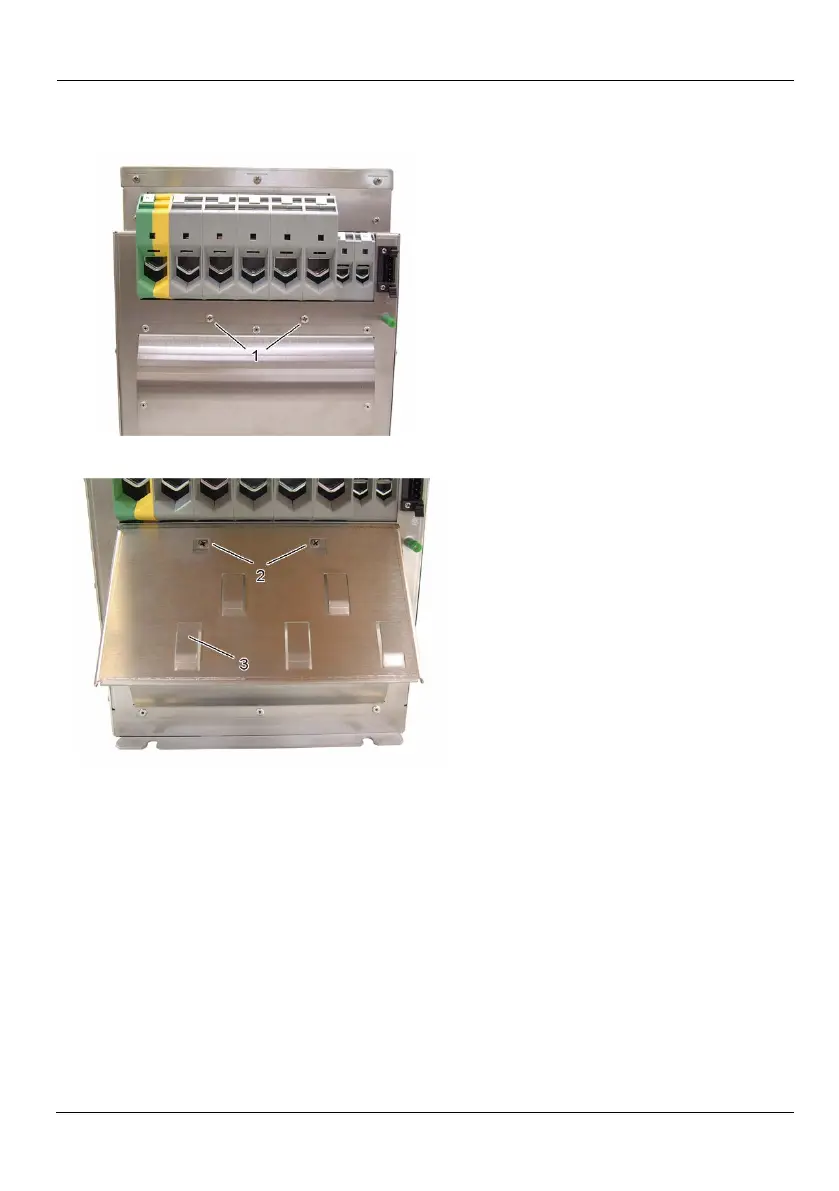

5.1.3 Installation of the shroud (optional)
1. Remove the screws 1
(Don’t use again.)
2. Position the shroud at the
ground of the servo drive.
3. Mount the shroud with the
screws 2.
(Take the new delivered
screws.)
4. Connect the lines at the terminals.
5. Connect the shield of the lines at the connecting links 3.
