Parametrization and commissioning
BK9055 and BK9105 25Version: 2.0.0
4.4.3 Address configuration via BootP server
4.4.3.1 Addressing via Beckhoff BootP Server
BootP Server
Disable all other Ethernet adapter in your “network connections” before you start the BootP Server.
You have then only one Ethernet adapter which you can use for BootP.
Connecting to the BootP Server
BootP server: ftp://ftp.beckhoff.de/software/TwinCAT/TwinCAT2/Unsupported_Utilities/TcBootP_Server/
How to use the BootP server
Use the BootP server with the BK9105 in one of two ways:
1. Statically store an IP address by switching all the dip switches 1-9 to the on position

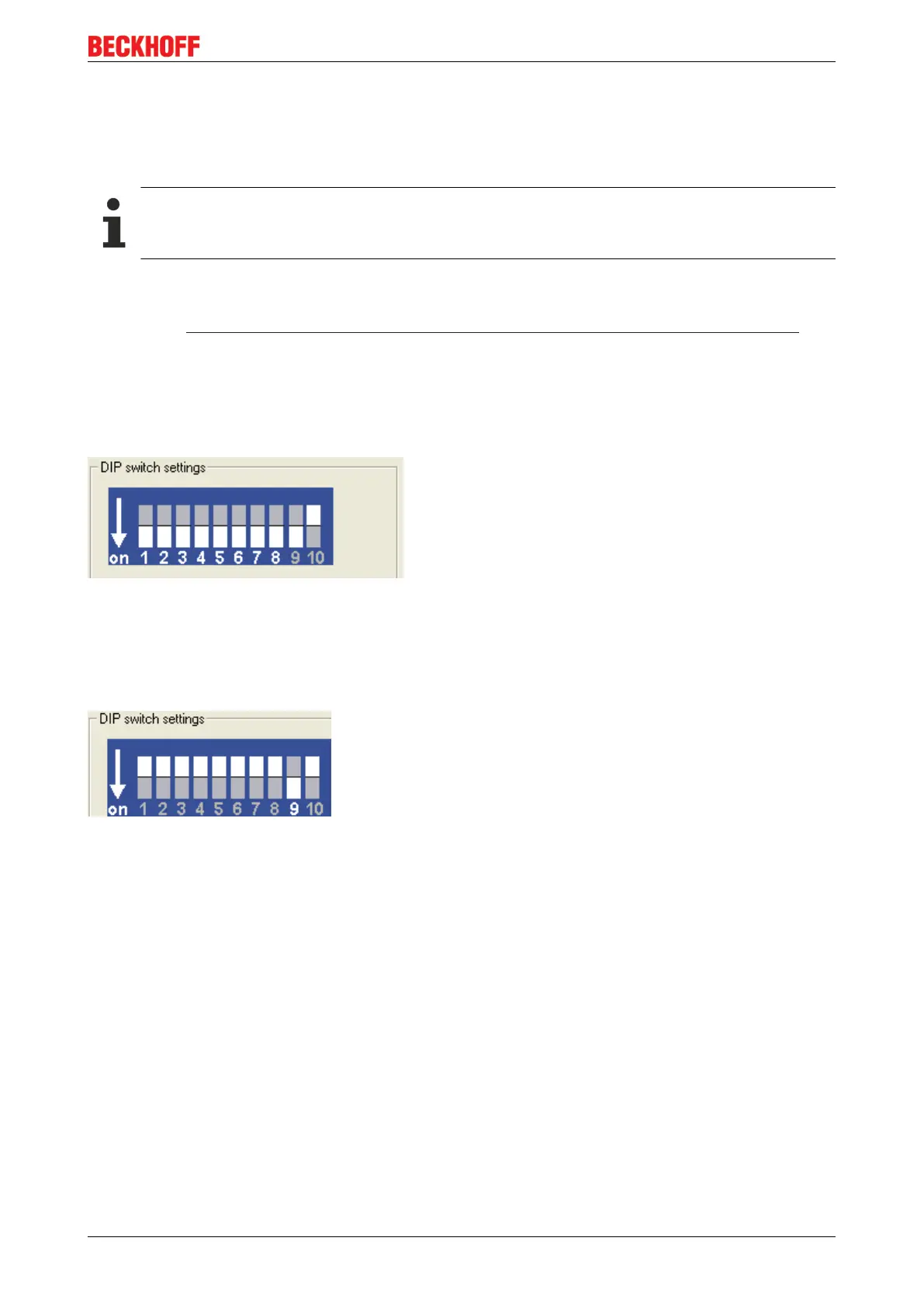

Fig.8: Beckhoff BootP Server - DIP switch settings for statically stored IP address
When choosing this mode, power cycling the BK9105 with the dip switches set to ON 1-9 will keep the IP
address set by the BootP server. The BootP server does not need to be present after this point.
2. Dynamically set an IP address that is assigned by the BootP by turning on only dip switch 9
Fig.9: Beckhoff BootP Server - DIP switch settings for dynamically set IP address
Be sure to configure the BootP server with the Mac ID of the BK9105 and the desired IP address.
