Parametrization and commissioning
BK9055 and BK910538 Version: 2.0.0

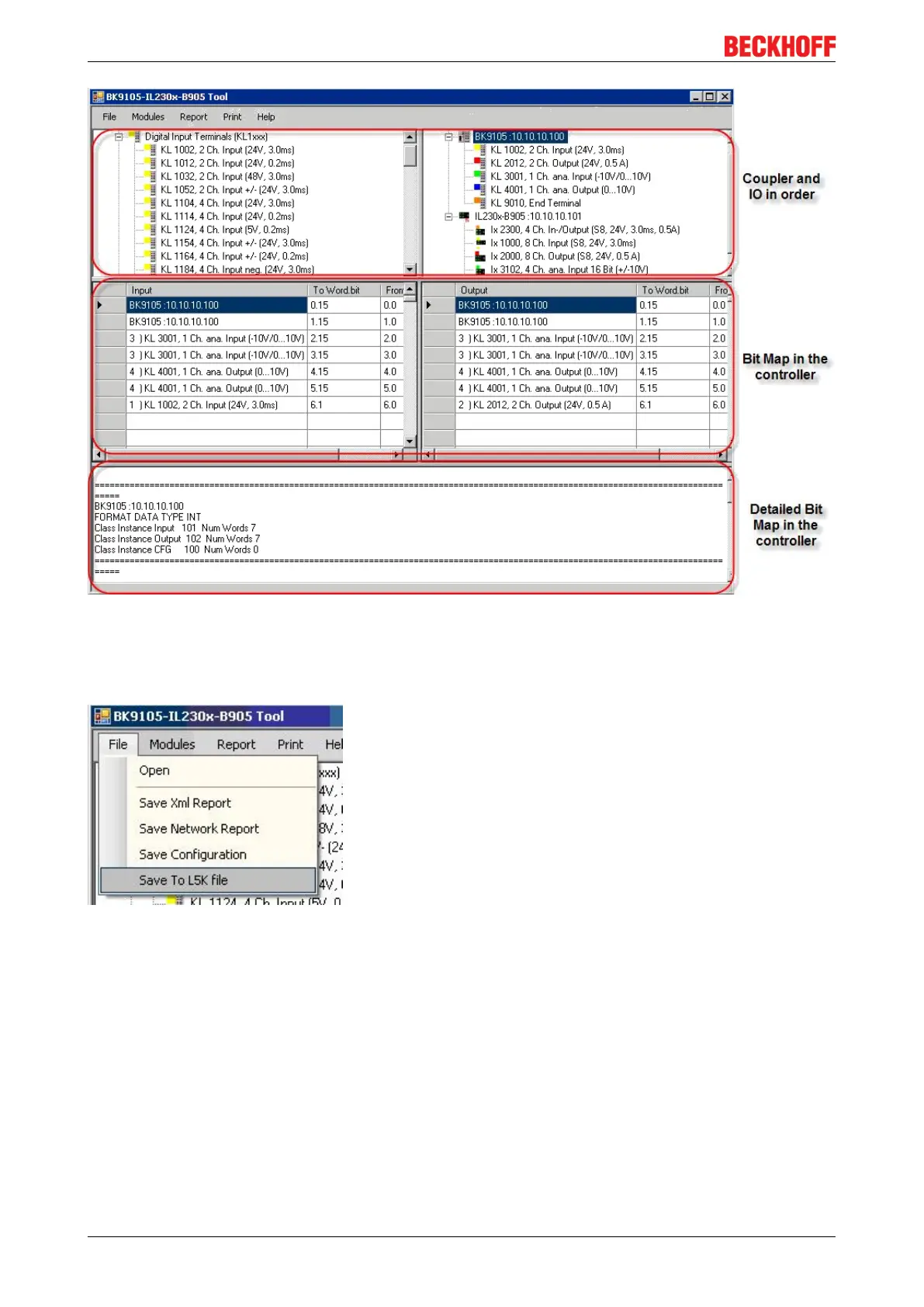

Fig.23: EthernetIP Tag Wizard - Mapping
All one has to do at this point to save or export the data is File>Save XML (this saves the configuration to a
XML file, File>Save Network Report (saves so as you can print it for machine documentation)
Save>Configuration (If you want to add to this configuration in the future) and File>Save To L5K file.
Fig.24: EthernetIP Tag Wizard - Save To L5K file
When saving to a L5K file you are prompted to select the correct Ethernet IP master (This list is read from
the text file mentioned earlier).
