Parametrization and commissioning

BK9055 and BK9105 37Version: 2.0.0

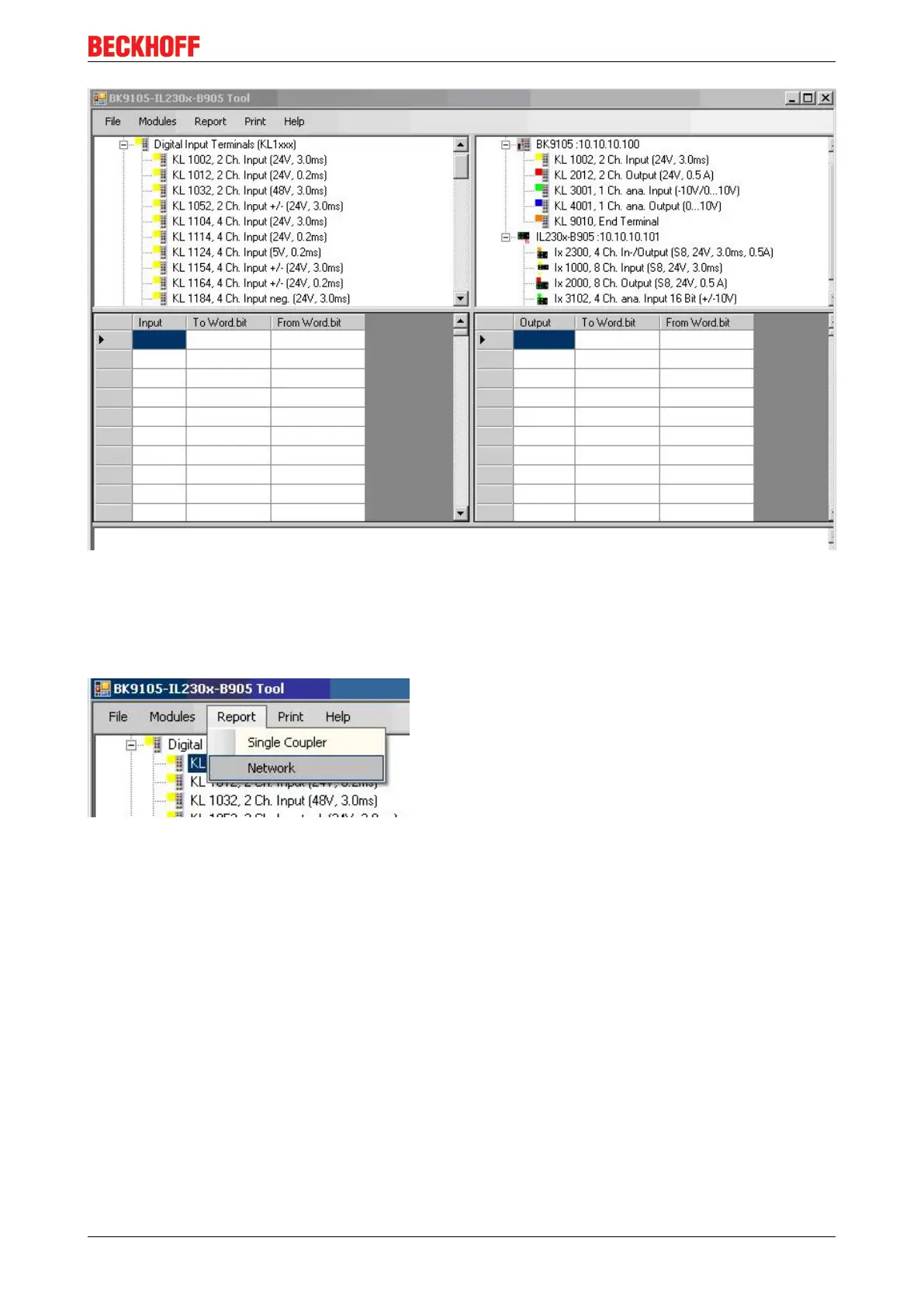

Fig.21: EthernetIP Tag Wizard - Adding the IO to cour configuration

Once you have all the IO added in the correct order, you have a couple different selections as to how to save

review or export this data. To review, all one has to do is simply select the coupler you want to review and

then Report>Coupler (Or network [If network is selected only the first coupler will show graphically but the

mapping below is correct])

Fig.22: EthernetIP Tag Wizard - selections
