Parametrization and commissioning

BK9055 and BK9105 39Version: 2.0.0

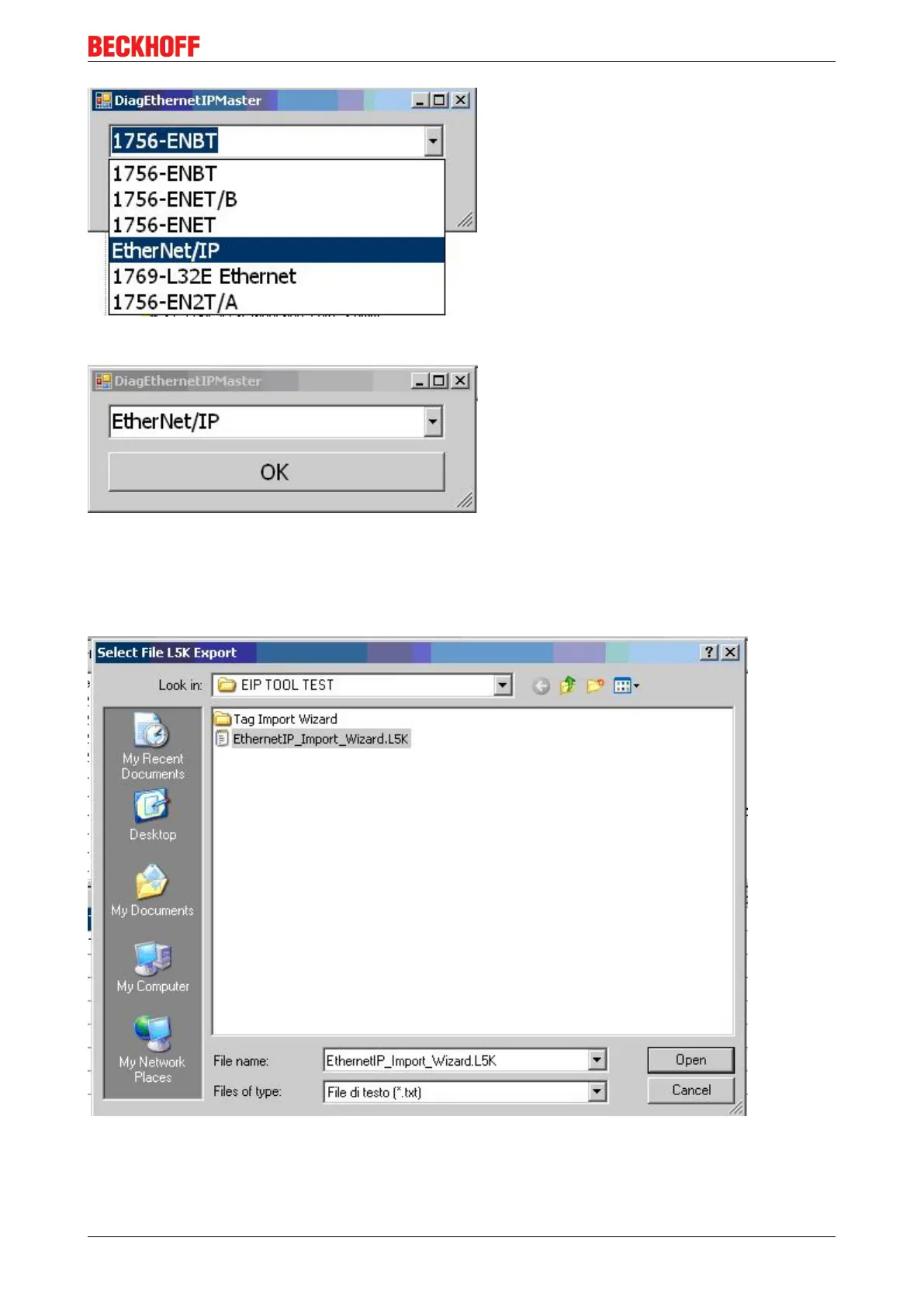

Fig.25: EthernetIP Tag Wizard - choose the correct Ethernet IP master

Fig.26: EthernetIP Tag Wizard select the correct Ethernet IP master

Once we have the master selected, then choose OK.

Next you will be prompted to select the correct path to the stored .L5K file, and select Open. Once opened

you will notice an AB.L5K file in the same directory you saved the original L5K file.

Fig.27: EthernetIP Tag Wizard - select the correct path to the stored .L5K file
