Parametrization and commissioning
BK9055 and BK9105
46
Version: 2.0.0

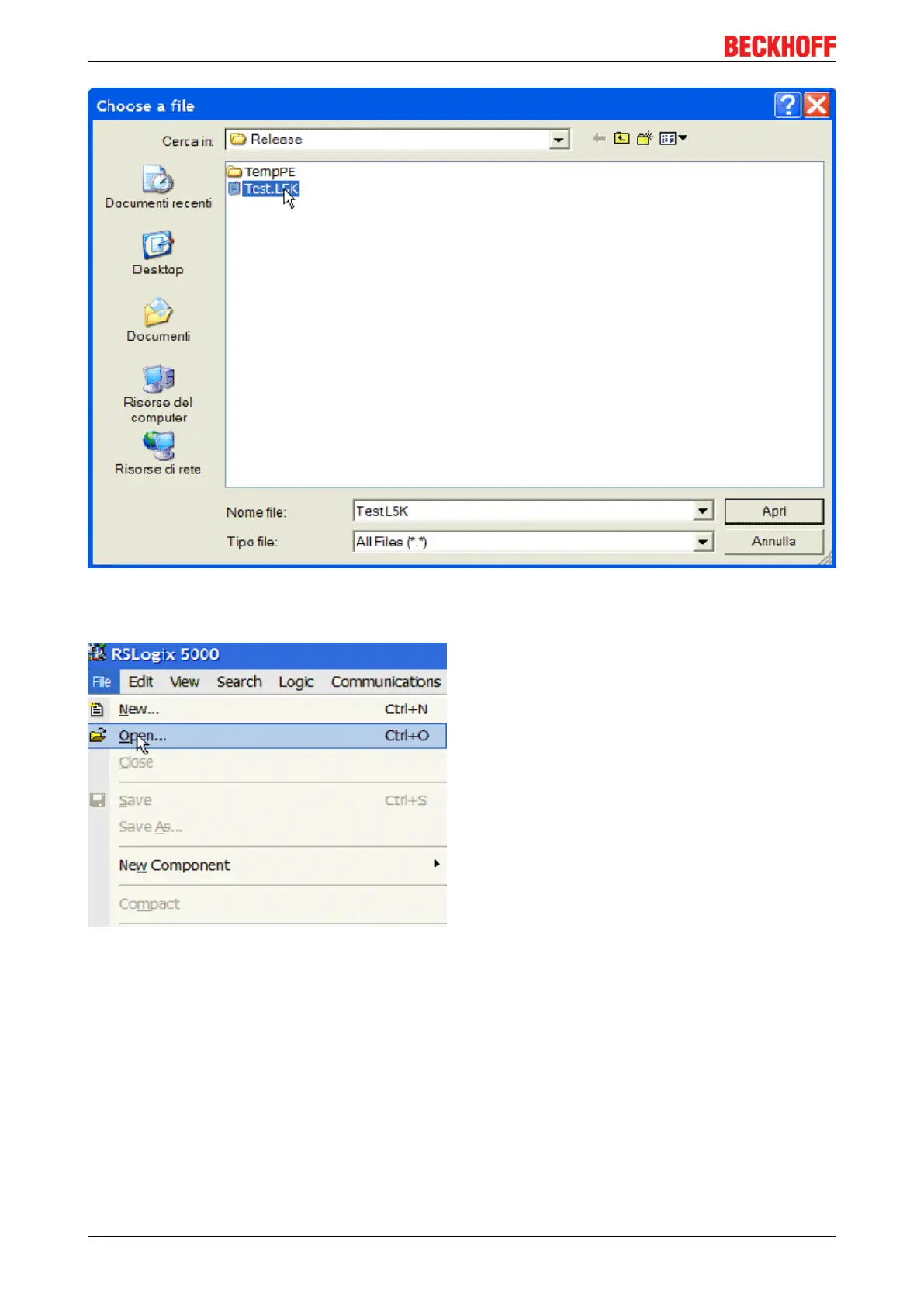

Fig.37: Export to Rockwell - Select the created file L5k
Open AB's tool, and select open
Fig.38: Export to Rockwell - open the ABL5K.L5K
Select the file ABL5K.L5K (fixed name!)
45
47
