Product Description
2.2 Appropriate Use
The multi-touch built-in Control Panel CP29xx is designed for industrial application in machine and plant
engineering. A multi-touch display is accommodated in a stainless steel housing. The Control Panel is
installed in the front of control cabinets.
The DVI/USB extension technology integrated in the CP29xx-0000 Control Panel enables remote Panel
operation at a distance of up to 50 m from the PC via a standard cable.
The CP-Link 4 connection technology integrated in the CP29xx-0010 Control Panel enables remote panel
operation at a distance of up to 100 m from the PC via a CAT.6
A
cable with integrated or separate
24 V DC power supply depending on the transmitter module.
Risk of explosion!
Danger
The Control Panel must not be used where there is a risk of explosion.

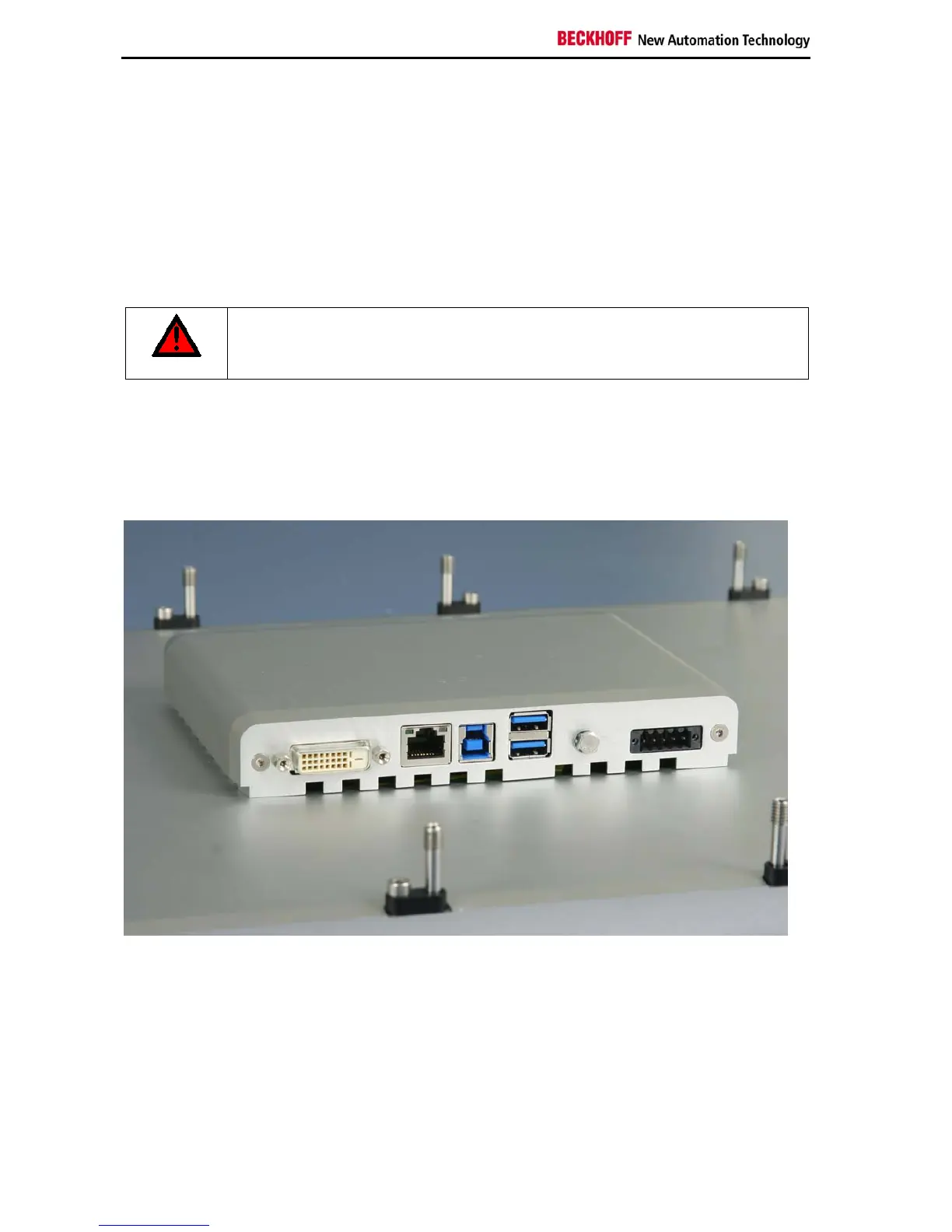

2.3 Access to the connectors
The connectors of the Control Panel are located at the rear side of the housing.
Connection block CP29xx-0000
For the pin assignment see chapter Interfaces CP29xx-0000.
8 CP29xx
