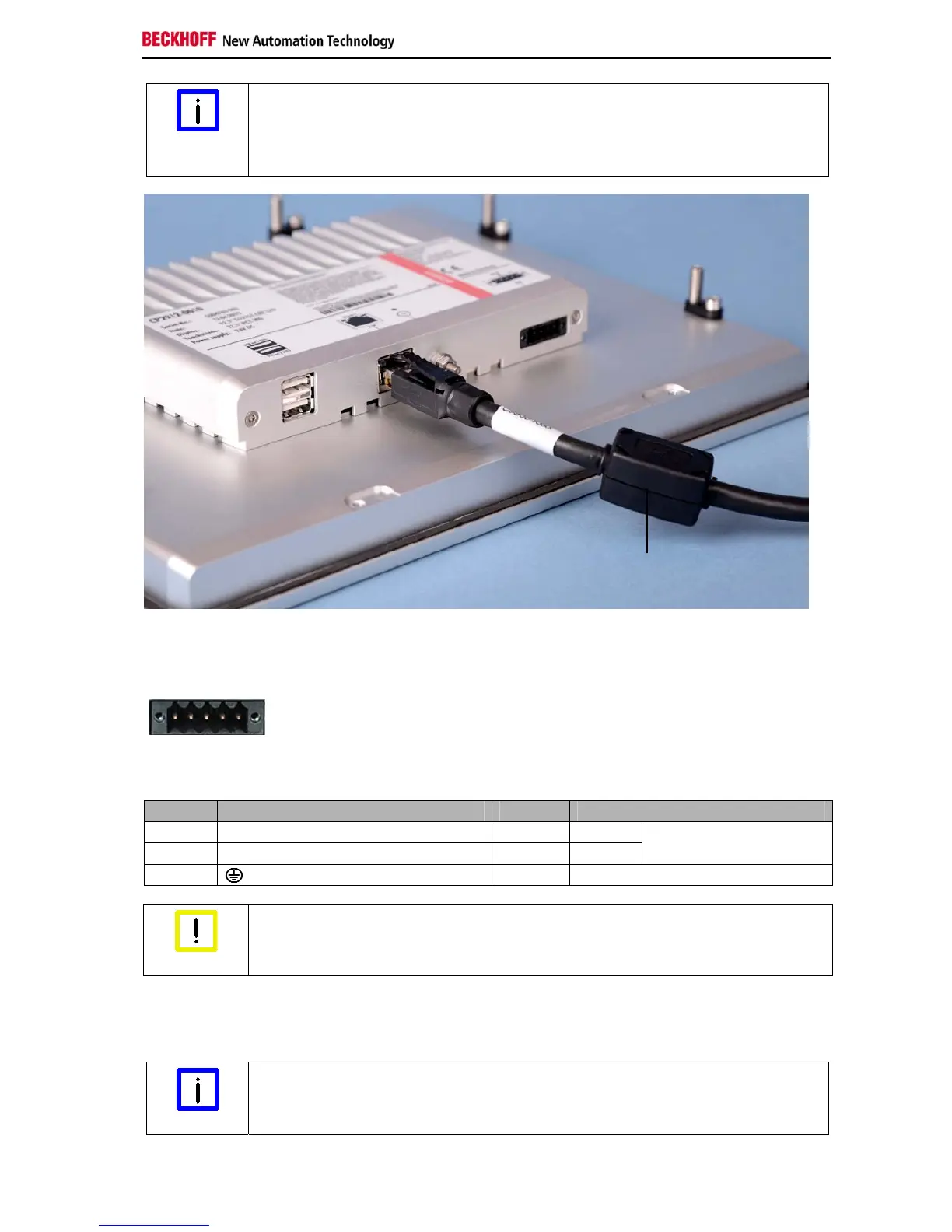

Product Description
CP-Link 4 cables with above 60 m cable-length with ferrite core
Note
CP-Link 4 cables with above 60 m cable-length are fitted with a ferrite core at one end.
If connecting the cable make sure to plug in the cable as shown in the picture with the
ferrite core Control Panel-sided.
ferrite core
CP-Link 4 cable connection
2.5.5 Power Supply (X101)
X101
Socket 5-pol RM3.50 Sw Screw Clamp BL3.5/180F (WEIDMÜLLER 1615810000)
The optional power supply for the Control Panel is established via the socket (X101), see chapter
CP-Link 4 Architecture Description. The power supply connector is included in delivery.
Pin Signal Pin Signal
1 NC 4 GND
2 NC 5
+ 24 V
DC
Power Supply
3
Don’t connect power supply socket if using One Cable technology
Attention
If using the CP-Link 4 - One Cable Display Link technology, do not connect anything to
the power supply socket of the Panel.
2.5.6 Ground connection
The Control Panel is grounded via the screw connection (Ground).
Malfunction possible with missing ground connection
Note
A proper ground connection of the device is absolutely necessary for the correct
function of the touchscreen.
CP29xx 15
