Product Description
2.5 Interfaces CP29xx-0010
2.5.1 CP-Link 4 Architecture Description
2.5.1.1 CP-Link 4 – The Two Cable Display Link
The CP29xx-0010 multi-touch panels can be operated up to 100 m away from the PC. CP-Link 4
transfers DVI and USB together via a CAT.6
A
cable. The CU8802 CP-Link 4 transmitter box is connected
to the PC via DVI and USB, or else the C9900-E276 PCIe module for CP-Link 4 is installed in the PC.

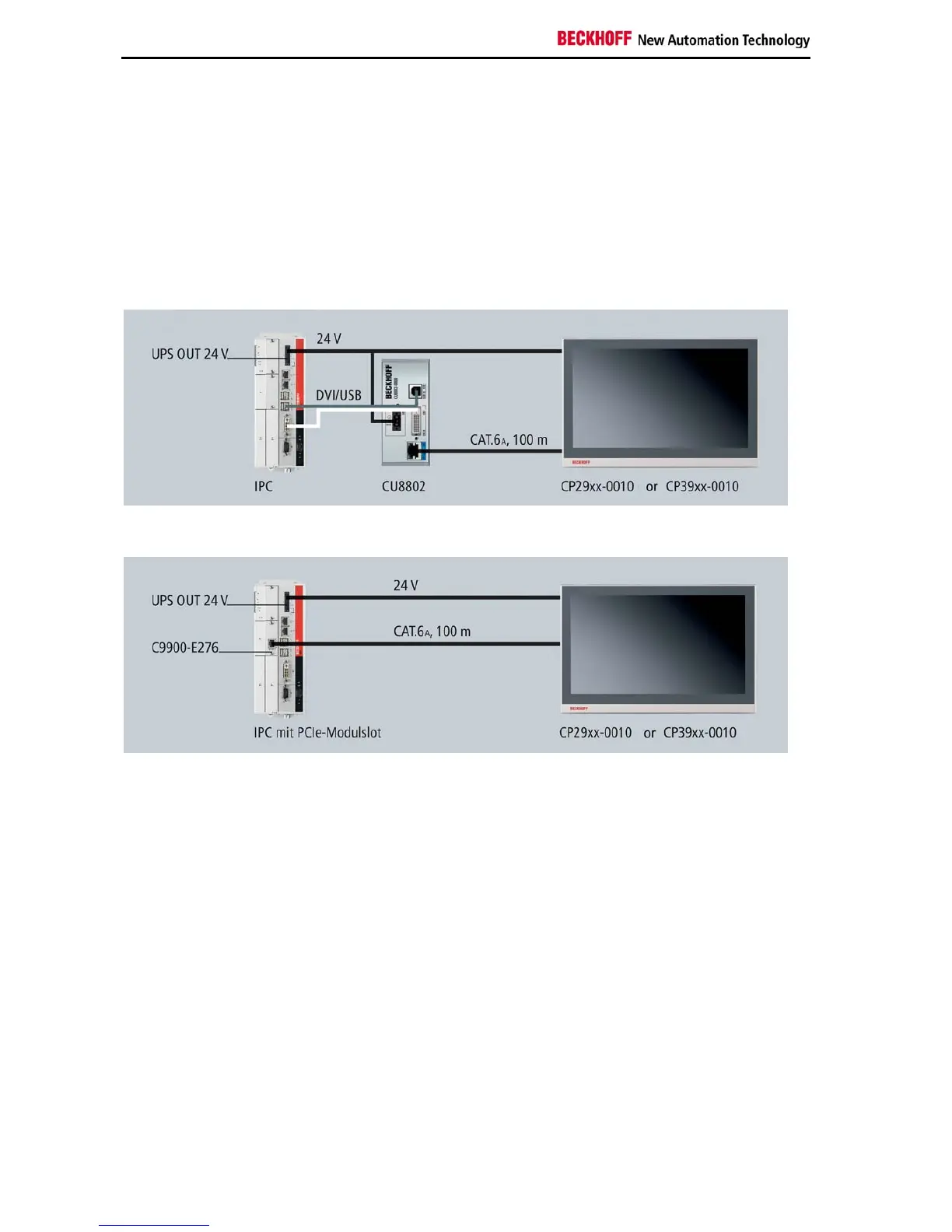

CP-Link 4 – The Two Cable Display Link via the CU8802 transmitter box
CP-Link 4 – The Two Cable Display Link via the C9900-E276 PCIe module
12 CP29xx
