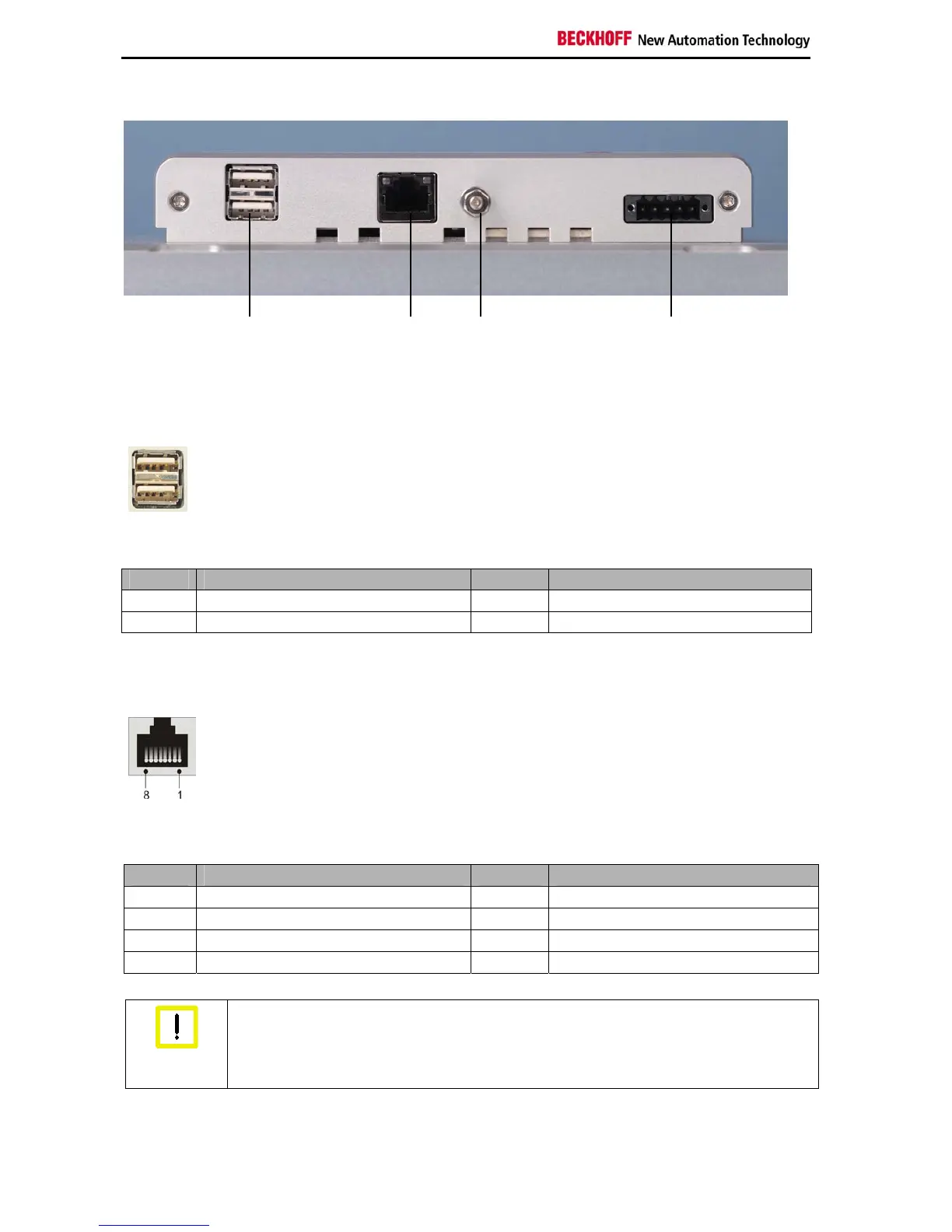

2.5.2 Interfaces
Ground
X102,
X103
USB out
X104
CP-Link 4
Input
X101
Power
2.5.3 USB out (X 102, X 103)
X102, X103
USB Type-A twin circuit board mounting (FCI 72309-0030B USB Double Receptacle A-Type)
The two USB interfaces (X102, X103, connector type A) are used for connecting peripheral devices with
USB connection. USB2.0 standard is supported.
Pin Signal Pin Signal
1 5V 3 D+
2 D- 4 GND
2.5.4 CP-Link 4 Input (X104)
X104
BA 1x8pole RJ45 Invers shield 2XLWL Lp-mount. Molex Nr: 43860-0016 Modular Jack
The Control Panel is connected with the PCIe module slot of the Industrial PC or the transmitter box
CU8802/ CU8803 via the CP-Link 4 Input (X 104).
Pin Signal Pin Signal
1 CP-Link4_0P 5 CP-Link4_2N
2 CP-Link4_0N 6 CP-Link4_1N
3 CP-Link4_1P 7 CP-Link4_3P
4 CP-Link4_2P 8 CP-Link4_3N
CU8803-0000 disconnect power supply
Attention
If using the CP-Link 4 - One Cable Display Link, the 24 V power supply of the CP-Link 4
transmitter box must be switched off before disconnecting the CP-Link 4 output
connection.
