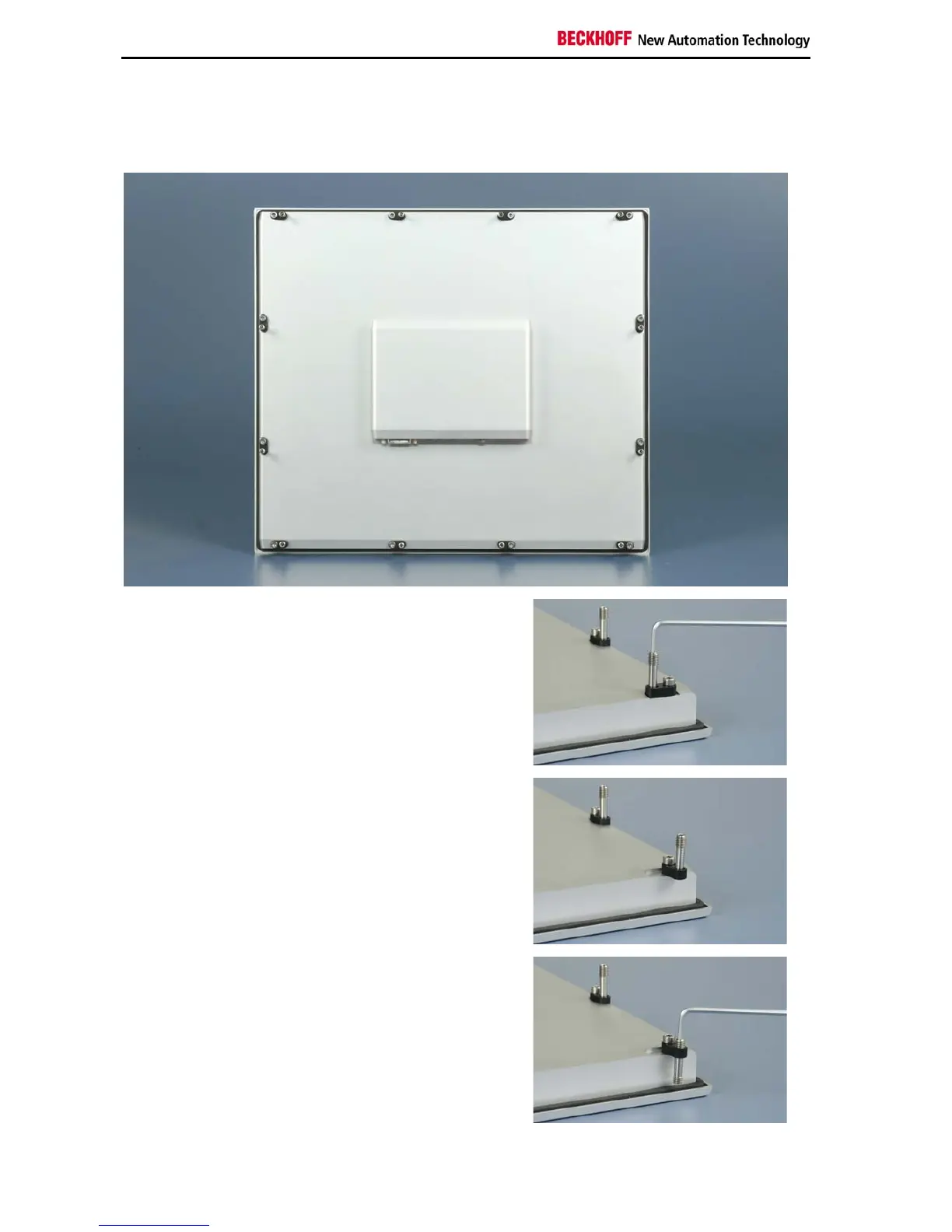

Mounting
4.1.4 Mounting of the Control Panel
The Control Panel is installed in the cabinet wall with clamping levers. For the cutout dimension of the
Control Panel see chapter Assembly dimensions, the wall thickness is between 1 mm and 5 mm.
1. Insert the Control Panel into the cutout.
2. Release the clamping levers with a 3.0 mm Allen key.
3. Turn the clamping levers to the side through 90°.
4. Retighten the screws.
