Mounting

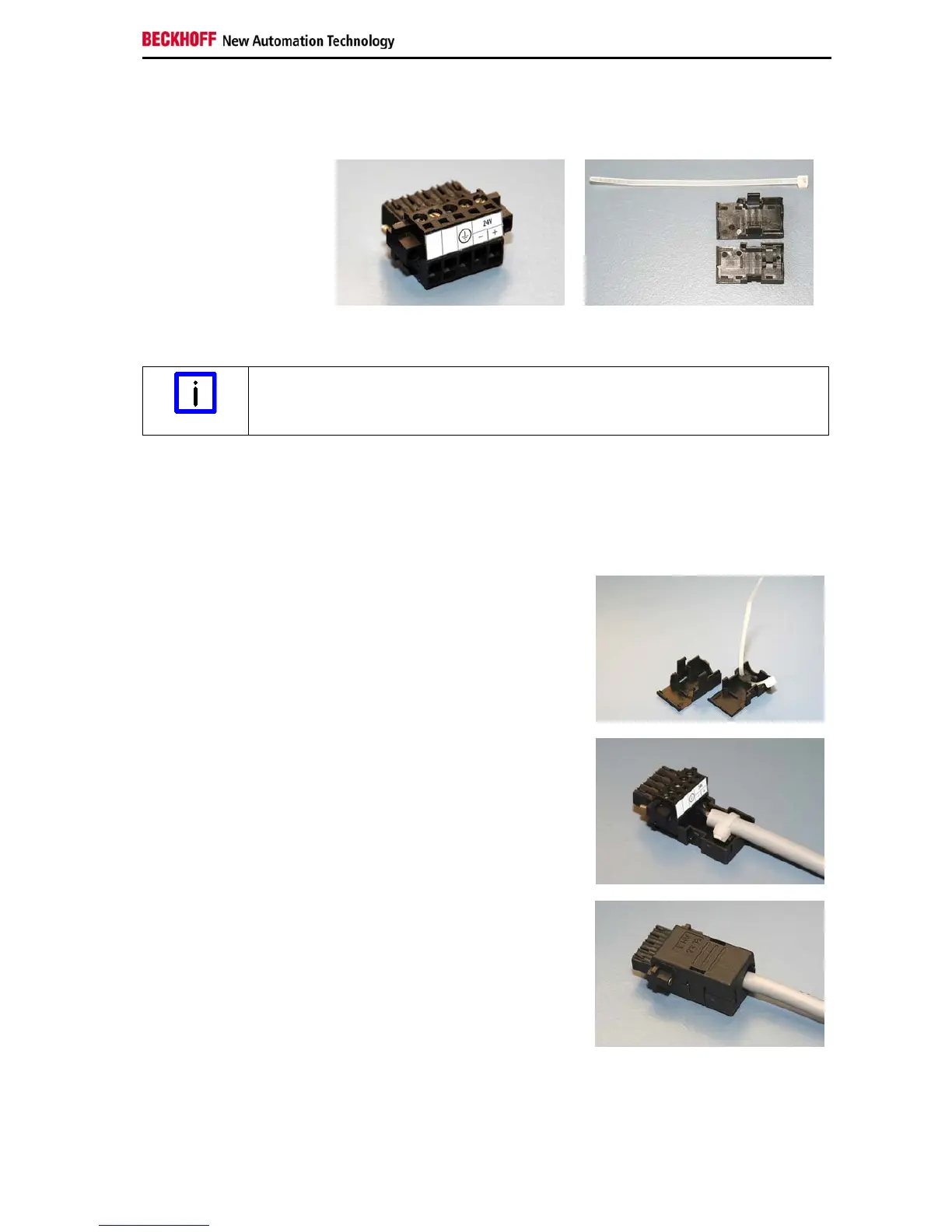

4.1.5 Fitting the power supply cable
Fit the cables for the power supply of the Control Panel, using the included material for assembling the
connectors:
Material for assembling
the connector
Plug connector 5-pole Stain relief housing with lacing cord
Conductive cross-section
Note
The connector is specified for 16 A and can lift conductive cross-sections until 1.5 mm
2
.
So the connector is fitted to the cable
1. Strip insulation from the cable ends (Length of stripped conductor is 8 - 9 mm).
2. Screw together the cable ends in the 5-pole plug connector in accordance with wiring diagram.
Applying the strain relief
Thread the lacing cord into that lower part of the stain relief
housing.
Putting in the plug connector
Put the plug connector into that lower part of the stain relief
housing.
Tighten the lacing cord and pinch off the plastic strap.
Fixing the upper part of the stain relief housing
Fix the upper part of the stain relief housing by snapping it onto
the lower part.
CP29xx 21
