Basics

EK1122, EK15xx 31Version: 3.4

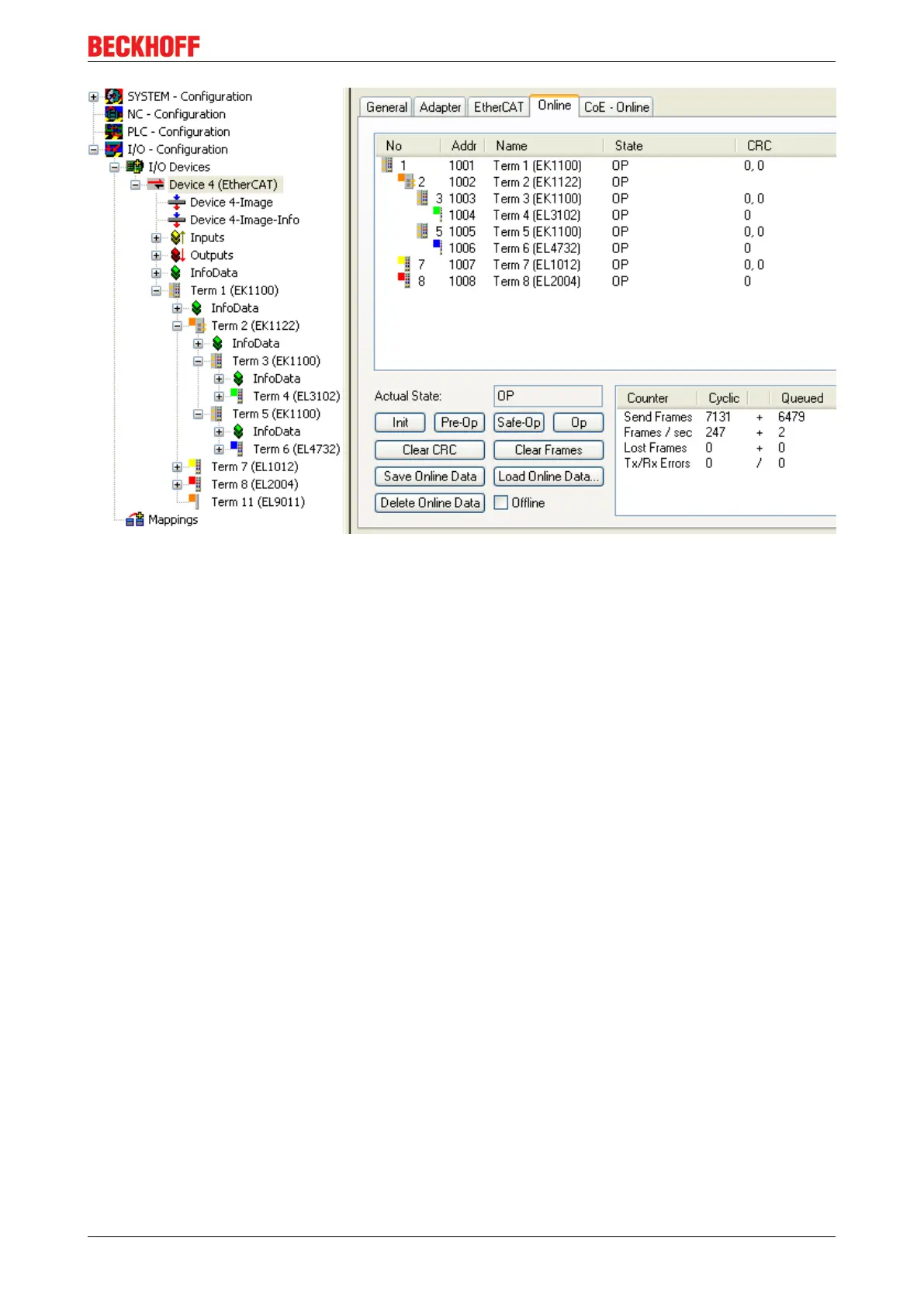

Fig.23: Example configuration

The TwinCAT online topology shows the wiring scheme, see Fig. "Online Topology". The EK1122 is

selected, so that further information is shown. The green bars above the slaves indicate the correct RUN

state in all slaves.
