Beckhoff EK15 Series - Notes Regarding Assembly of POF Cables with the Connector Set ZS1090-0008

Commissioning/application notes
EK1122, EK15xx62 Version: 3.4
NOTE
Use of blind plugs
In order to avoid accidents due to glare (Class 1 laser, please observe the safety instructions [}69]) and
to protect the transceiver against environmental influences, unused sockets should be sealed using the
blind plugs provided!

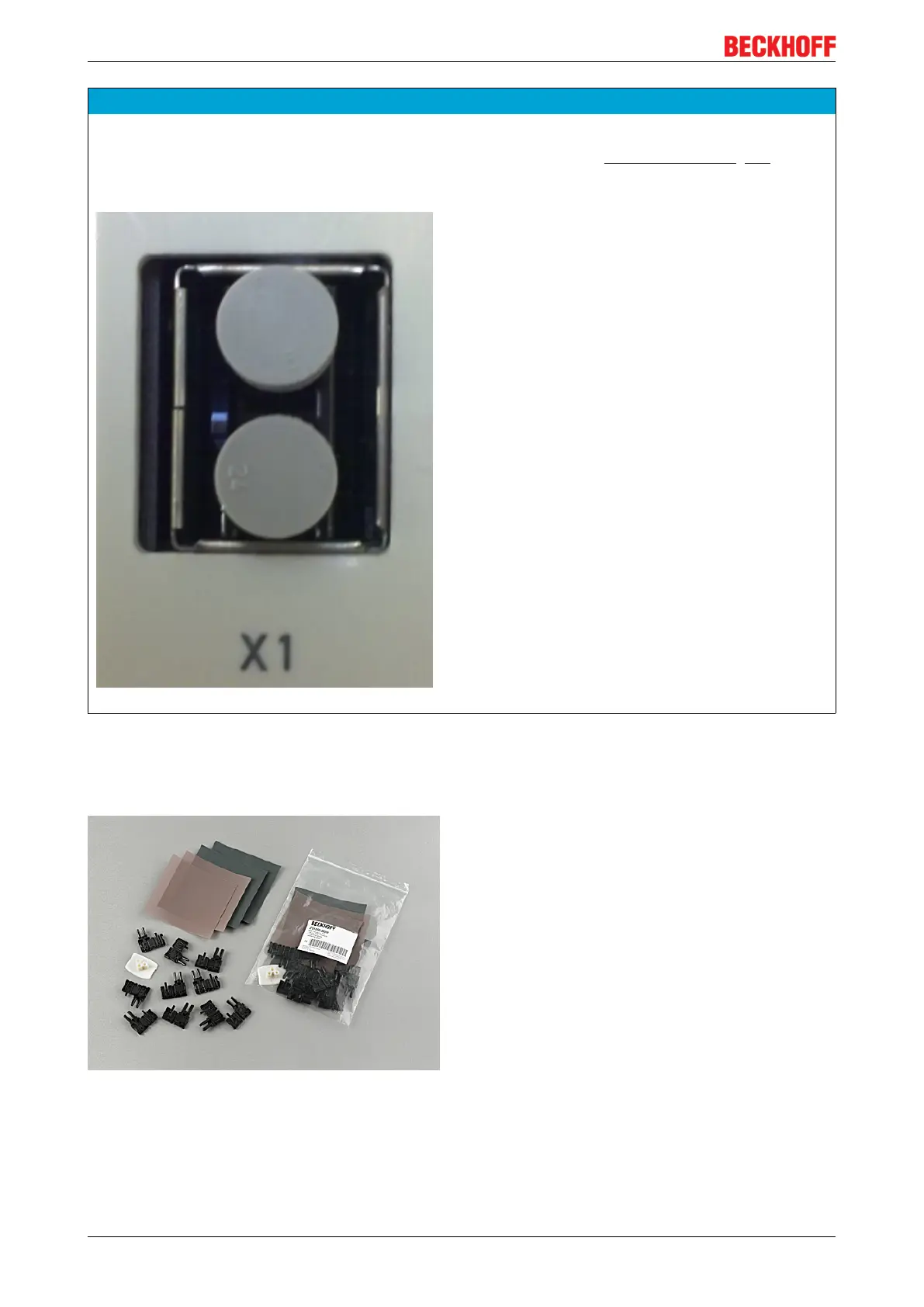

Figure: Blind plugs in unused sockets
6.5 Notes regarding assembly of POF cables with the
connector set ZS1090-0008
Fig.49: Duplex connector set ZS1090-0008
The duplex connector set ZS1090-0008 from Beckhoff consists of 10 duplex Versatile Link connectors and
several sheets of abrasive paper and polishing paper.
