Product overview
EK1122, EK15xx26 Version: 3.4
3.4 Junctions with POF connection
3.4.1 EK1561
3.4.1.1 EK1561 - Introduction

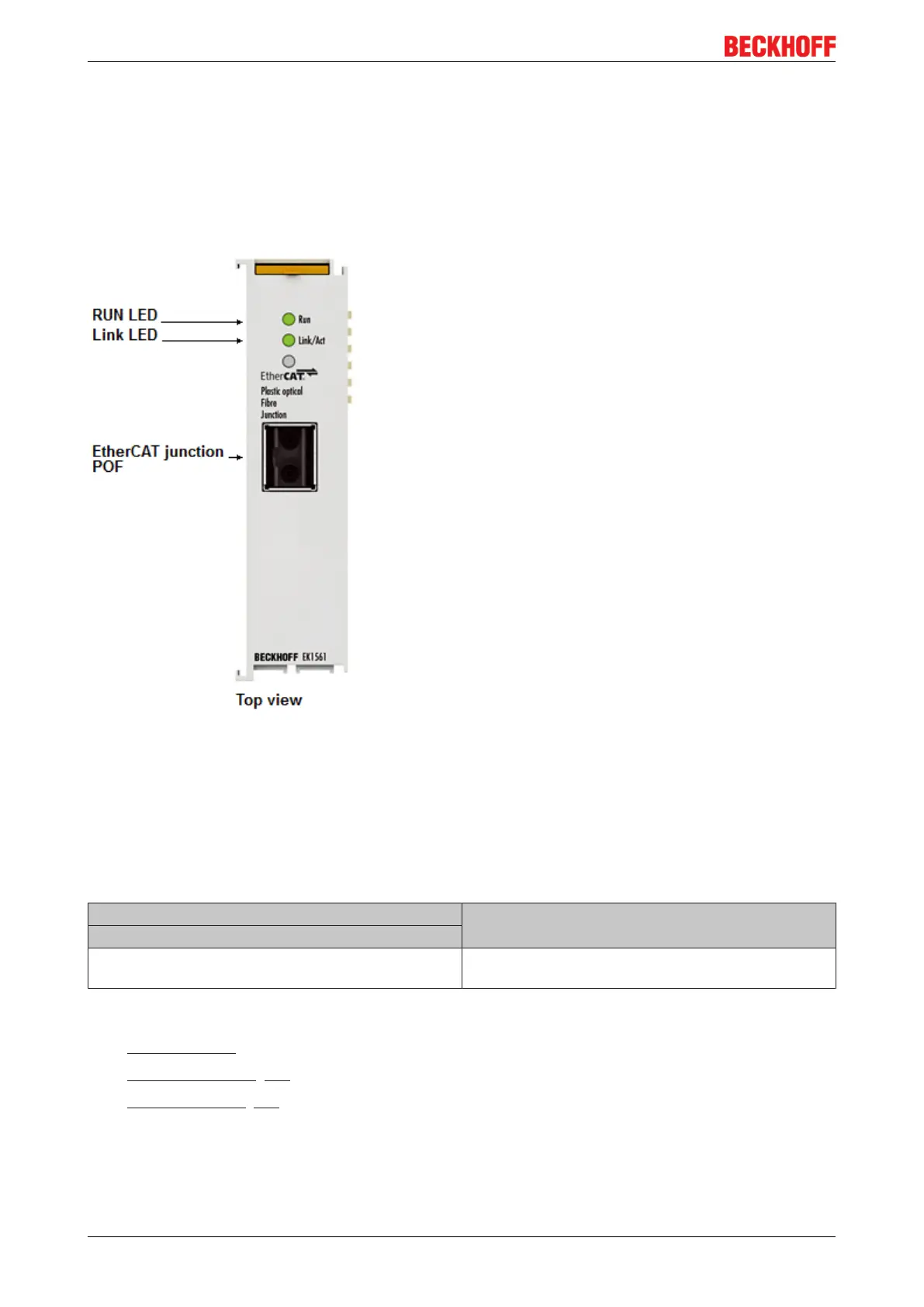

Fig.19: EK1561
In connection with an EK1100 EtherCAT coupler, the EK1561 single-port POF junction makes it possible to
convert from 100BASE-TX physics to 100BASE-FX physics (POF - Polymeric Optical Fiber). Distances of up
to 50 m between two couplers can be bridged using the EK1561 and the EK1541 EtherCAT coupler for POF.
Unlike the glass fiber, the POF fiber is easily wireable in the field. The Run LED indicates the status of the
EK1561.
Connection
Terminal point Description
Designation
X1 Versatile Link connection for POF duplex connector
(ZS1090-0008)
Quick links
• EtherCAT basics
• Application notes [}58]
• Diagnostic LEDs [}68]
