Beckhoff EK15 Series - Application Notes M8 Junction; Settings and Port Assignment; Fig. 41 Internal and External Port Assignment for EK1122

Commissioning/application notes
EK1122, EK15xx52 Version: 3.4

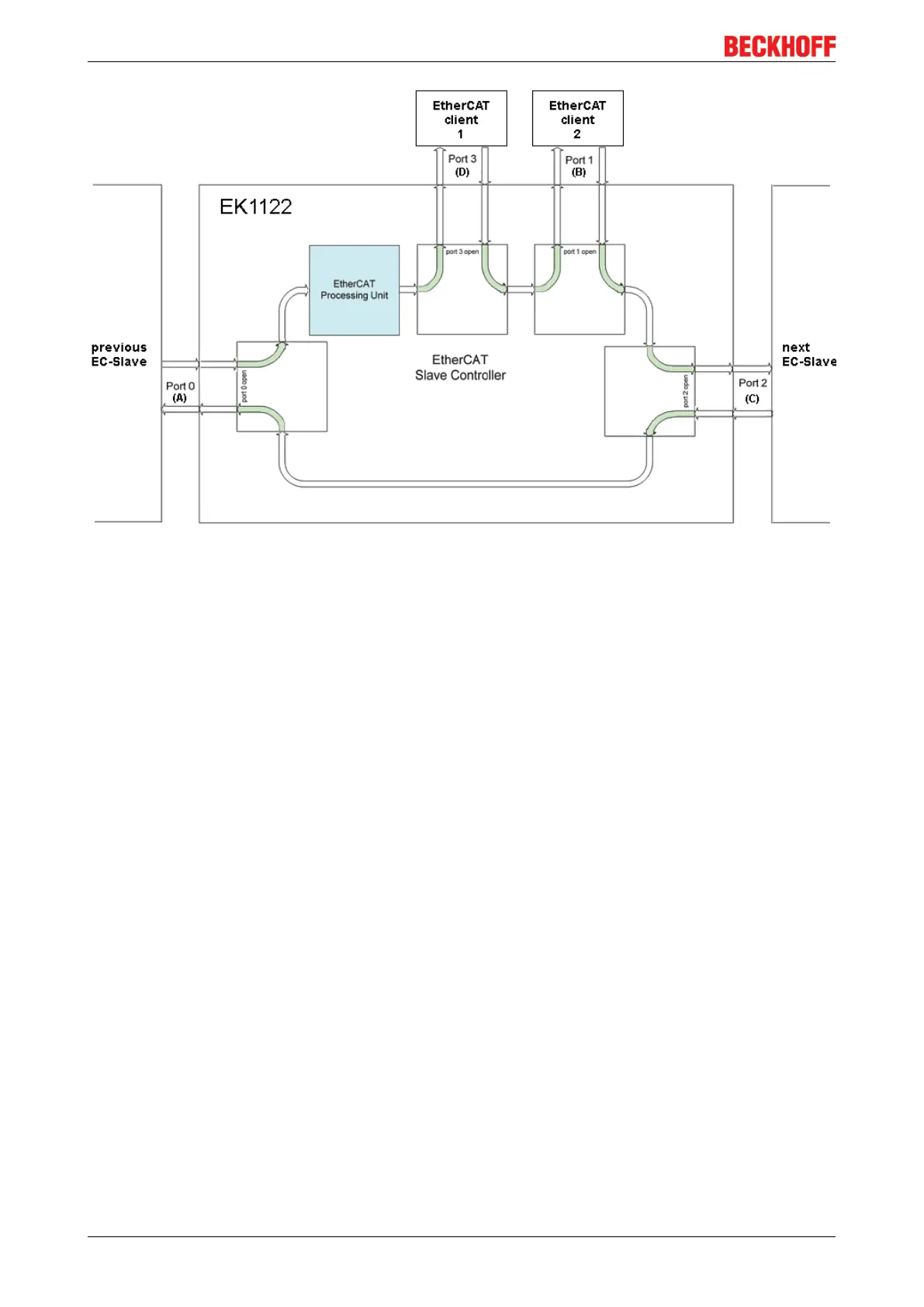

Fig.41: Internal and external port assignment for EK1122
6.2 Application notes M8 junction
6.2.1 Settings and port assignment
For normal operation no settings are required at the EK1122-0008.
The port ID used in the TwinCAT System Manager is mapped on the EK1122-0008 as follows:
