Product overview
EK1122, EK15xx24 Version: 3.4
3.3.2 EK1521-0010
3.3.2.1 EK1521-0010 - Introduction

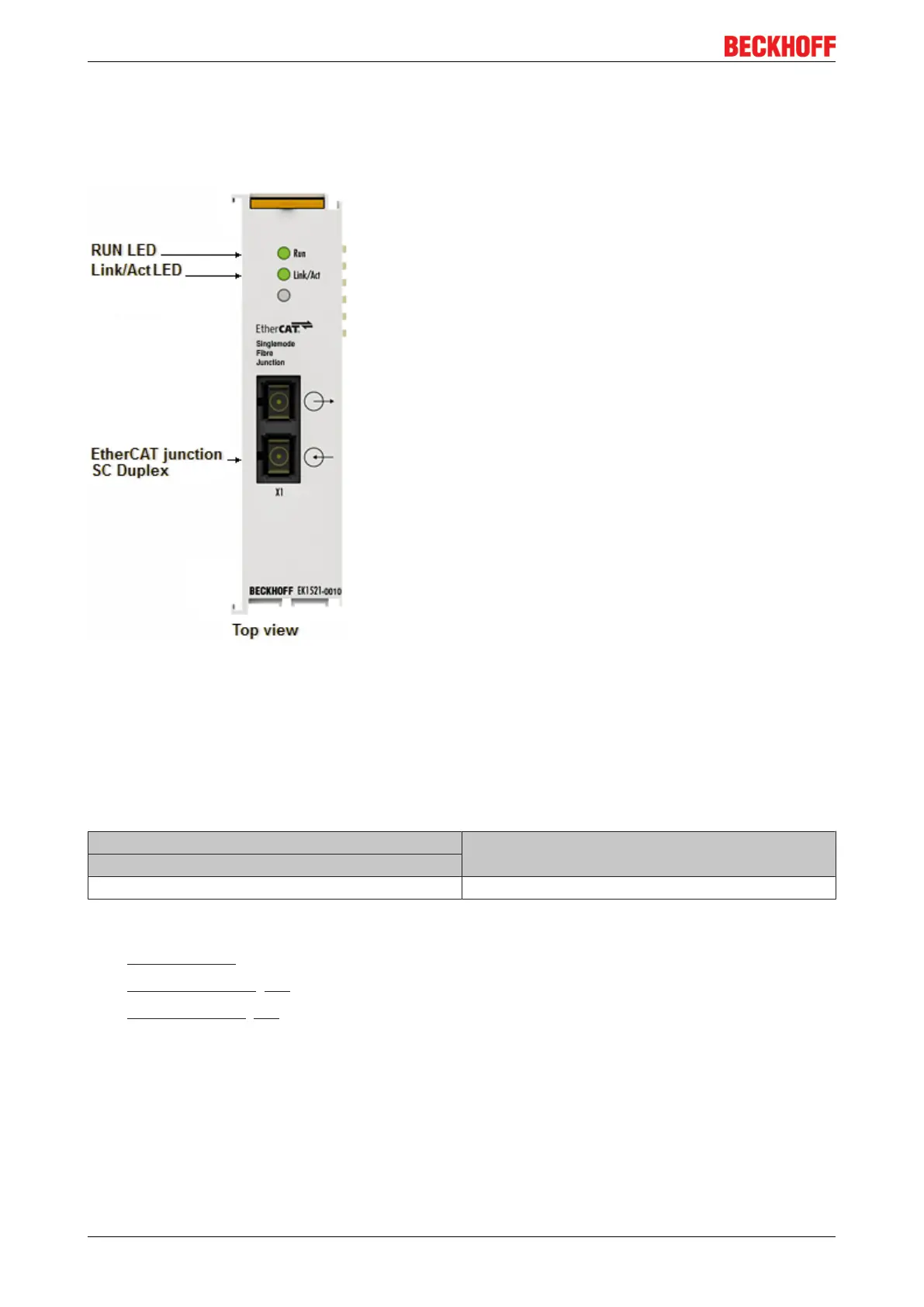

Fig.18: EK1521-0010
In conjunction with an EK110x EtherCAT coupler, the 1-port EtherCAT single-mode fiber optic junction
enables conversion from 100Base-TX to 100Base-FX physics (glass fiber). In conjunction with the
EK1501-0010 EtherCAT coupler for single-mode optical glass fiber, distances of up to 20km can be bridged.
Even cable redundant systems with optical fiber can be realized using the 1-port EtherCAT single-mode fiber
optic junction. The run LED shows the status of the EK1521-0010.
Connection
Terminal point Description
Designation
X1 SC duplex connector
Quick links
• EtherCAT basics
• Application notes [}54]
• Diagnostic LEDs [}67]
