Error handling and diagnostics
EK1122, EK15xx68 Version: 3.4

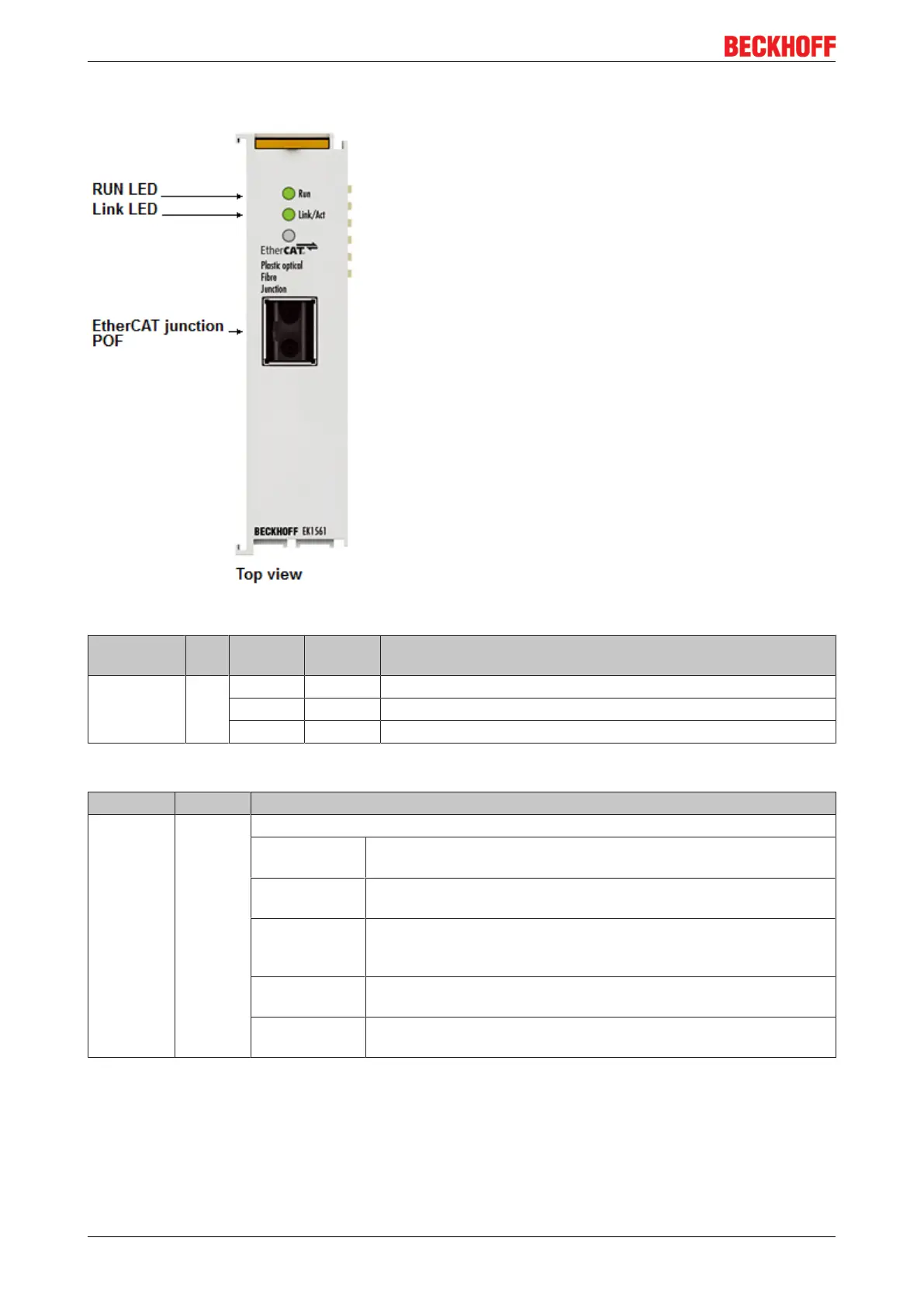

7.3 Diagnostic LEDs EK1561
LEDs for fieldbus diagnostics
LED Colo
r
Display State Description
LINK / ACT
(X1)
gree
n
off - no connection on the EtherCAT strand
on linked EtherCAT device connected
flashing active Communication with EtherCAT device
LED diagnostics EtherCAT state machine
LED Color Meaning
RUN green This LED indicates the terminal's operating state:
off State of the EtherCAT State Machine: INIT=initialization of the
terminal
single flash State of the EtherCAT State Machine: PREOP = function for
mailbox communication and different standard-settings set
flashing State of the EtherCAT State Machine: SAFEOP = verification of the
sync manager channels and the distributed clocks.
Outputs remain in safe state
on State of the EtherCAT State Machine: OP = normal operating state;
mailbox and process data communication is possible
flickering State of the EtherCAT State Machine: BOOTSTRAP = function for
terminal firmware updates
