14. Connection Wiring Diagrams
The DeepMind 12 analog polyphonic synthesizer uses servo-balanced outputs.
The circuit design has an automatic hum suppression with balanced signals and
is able to operate, without problem, even at highest levels. Externally-induced
mains hum etc, is thus eciently suppressed.
Theservo-function, also automatic, recognizes the connection of unbalanced
pin assignments and changes the nominal level internally so that there is no
dierence in level between the input and output signals (6dB correction)
Caution: Please ensure that only qualied persons install and operate the
device. During installation and operation the user must have sucient contact to
earth. Electrostatic discharges might aect the operation of the unit.
strain relief clam
sleeve
sleeve
tip
tip
ground / shield
signal

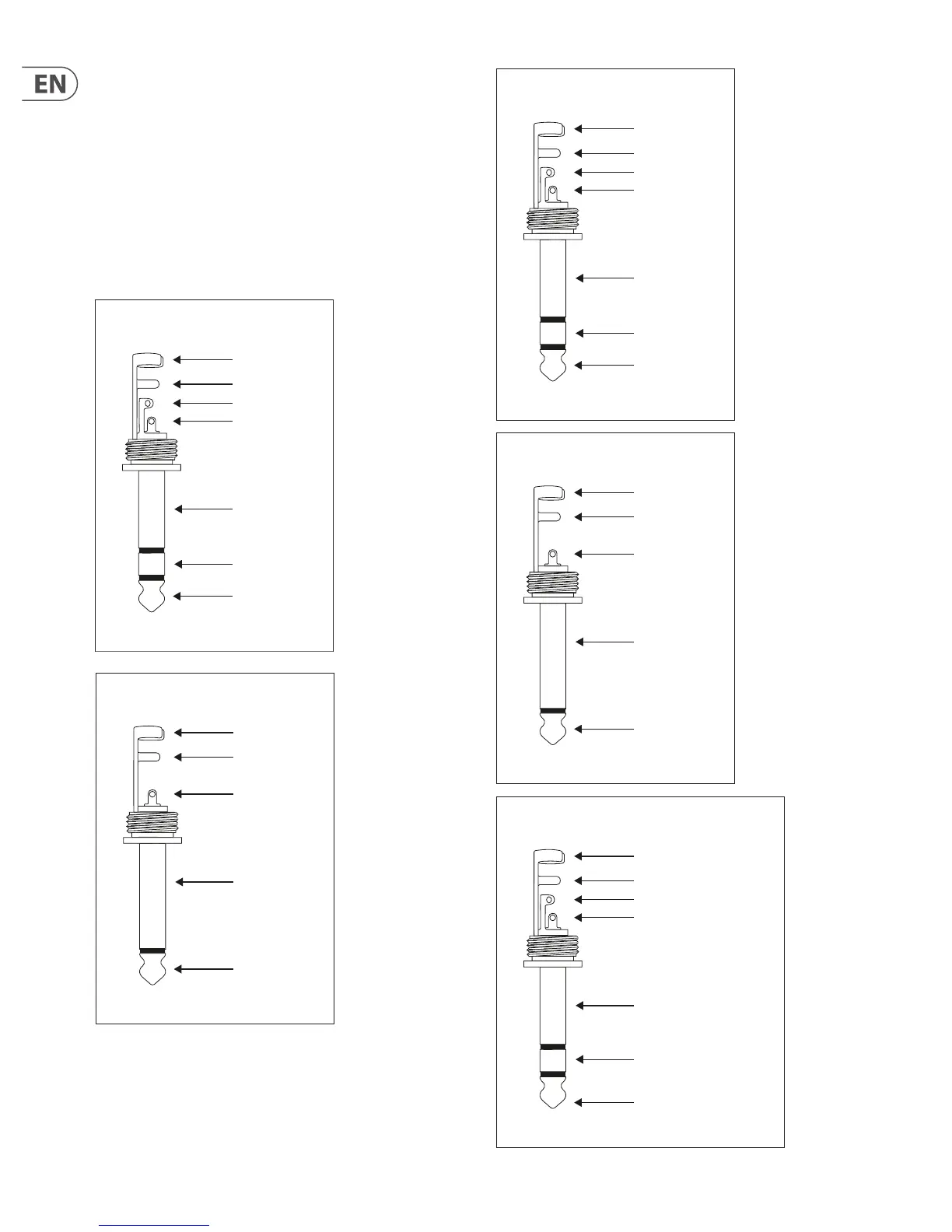

Un-Balanced Connection Cable Wiring
strain relief clam
sleeve
sleeve
ring
tip
tip
ground / shield
ring
cold - negative (-)
hot - positive (+)
Balanced Connection Cable Wiring
strain relief clam
sleeve
sleeve
ring
tip
tip
ground / shield
ring
right
left
Headphones Connection Cable Wiring
strain relief clam
sleeve
sleeve
tip
tip
ground / shield
signal
Sustain Connection Cable Wiring
strain relief clam
sleeve
sleeve
ring
tip
tip
ground / shield
ring
expression pedal output,
or control voltage
+5V
Expression or Control Voltage Connection Cable Wiring
