6. Signal Path / Voice Structure

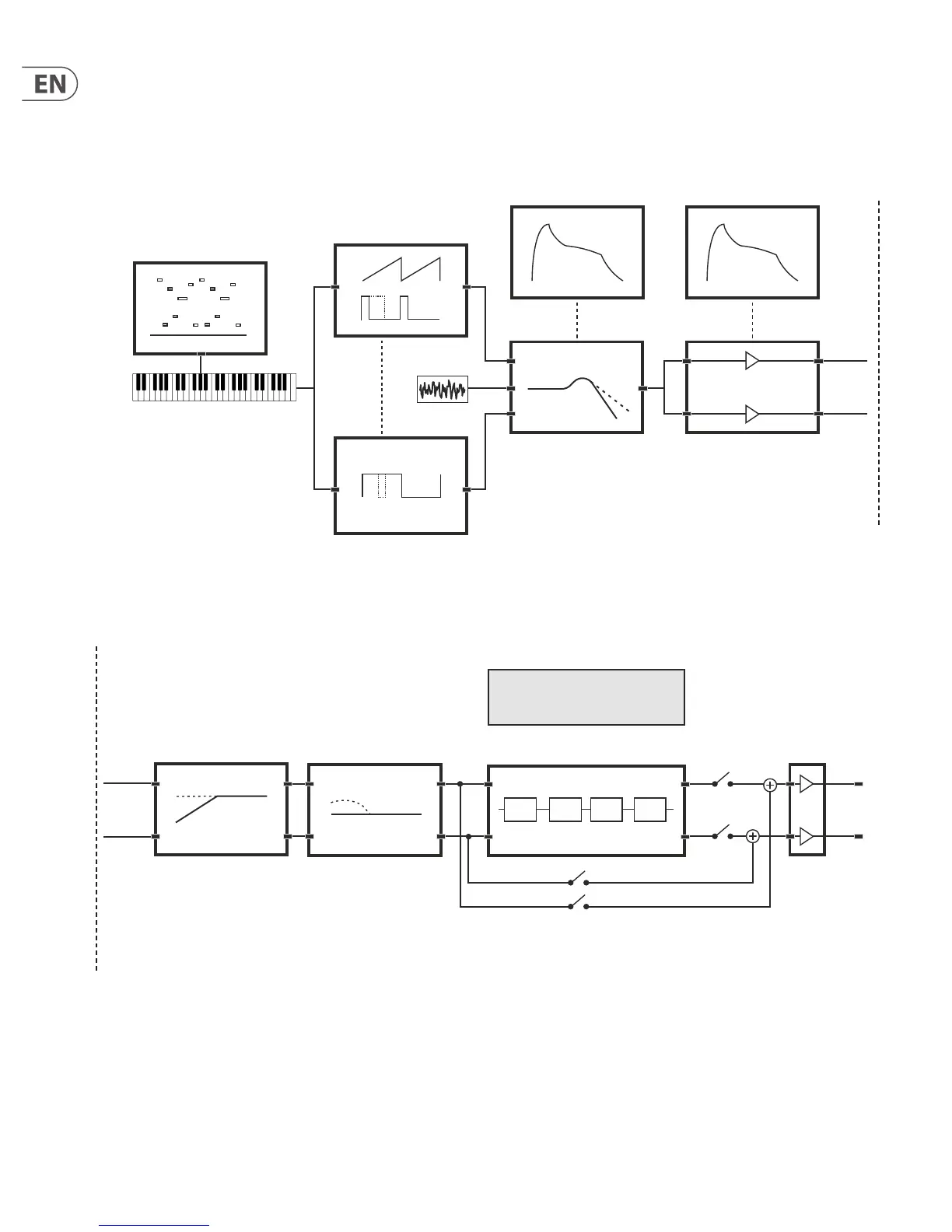

The signal path / voice structure from the OSCs to the main outputs is completely analog. The DSP eects can be bypassed completely to maintain the analog path.
When routed through the DSP eects, all sampling is done at 24-Bit 48 kHz. All internal DSP eects are processed at 32/40-Bit oating point resolution.
VCF Env VCA Env
VCF
VCA
FX
1 2 3 4
HPF BOOST
ANALOG PATH
DIGITAL PATH
Key Pitch
OSC-1
Arpeggiator
Noise
OSC-2
Volume
Main Outputs &
Headphones
MODE
INSERT
SEND
BYPASS
ANALOG PATH
OFF
ON
ON
DIGITAL PATH
ON
ON
OFF
VCF Env VCA Env
VCF VCA
FX
1 2 3 4
HPF BOOST
ANALOG PATH
DIGITAL PATH
Key Pitch
OSC-1
Arpeggiator
Noise
OSC-2
Volume
Main Outputs &
Headphones
MODE
INSERT
SEND
BYPASS
ANALOG PATH
OFF
ON
ON
DIGITAL PATH
ON
ON
OFF
