GB Double Sound Speed Controller SFR-1-D
30 BEIER-Electronic 01.03.2020
Threshold 1
Threshold 2
Threshold 3
Threshold 4
N
C
B
A
D
Neutral position(1,5ms)
(1,0ms)
(2,0ms)
(0)
(20)
(20)
(60)
(60)
(100)
(100)
Functional assignment at proportional channels #1 - #8
The proportional channel #1 and #2 are responsible for the speed recognition of M1
and M2.
The remaining 6 channels can be used with different functions.

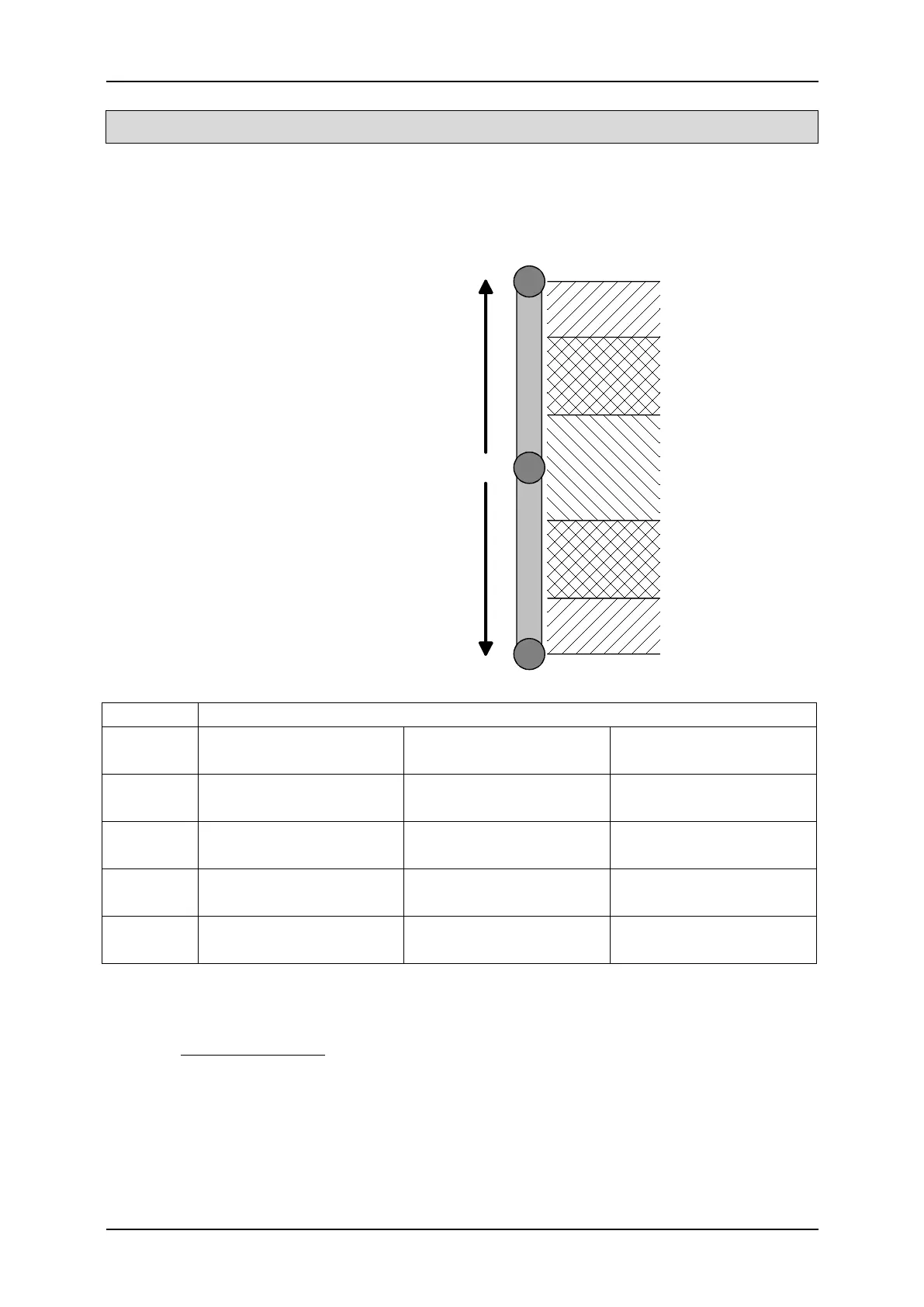

Channel #3 - #8 are split into area
"A, B, N, C and D". These five
areas represent the positions of a
joy-stick.
Area N is neutral and the center of
the joy-stick.
The same principle is valid for a
horizontal joy-stick. Area A is left
and area D right.
The area range can be adjusted,
by changing the four thresholds
directly in the Sound-Teacher
diagram.
Assignment of channels #2 - #8:
Area
Functions
in position
(>0,5s)
short in position
(0,5-2,0s)
long in position
(>2,0s)
A
function on
(static)
function on/off
(memory)
function on/off
(memory)
B
function on
(static)
function on/off
(memory)
function on/off
(memory)
C
function on
(static)
function on/off
(memory)
function on/off
(memory)
D
function on
(static)
function on/off
(memory)
function on/off
(memory)
Theoretically it is possible to use 12 functions at one proportional channel. But in
practical terms this doesn’t make sense. Avoid using an area with static and memory
function at the same time.
