GB Double Sound Speed Controller SFR-1-D

8 BEIER-Electronic 01.03.2020

Pin assignment

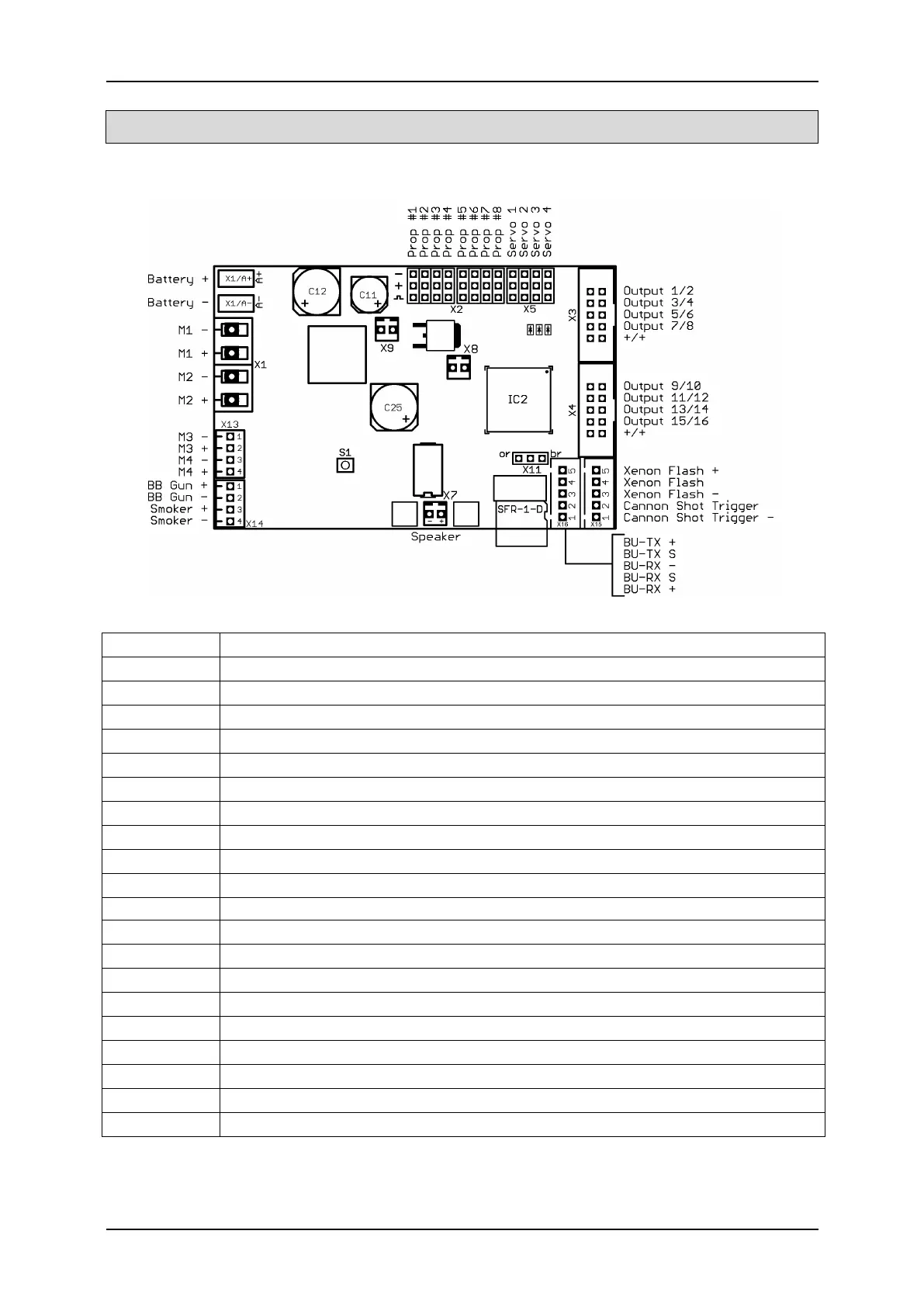

Connections at SFR-1-D:

X1/A+

Battery + / Akku + (6 – 18 V)

X1/A-

Battery - / Akku -

X1/M1

Motor 1 (motor left)

X1/M2

Motor 2 (motor right)

X2/1 – X2/8

Proportional input channel #1 – #8

Switching outputs 1 - 8

Switching outputs 9 - 16

X5/1 - X5/4

Servo 1 - 4

Loudspeaker

Volume control with poti

Optional switch (Power off / standby)

X10

Micro SD card

X11

Port for data cable K-USB-2

X13

Motor M3 and M4 (auxiliary drives)

X14

Output for bb-gun and smoke generator

X15

Output for Xenon flash and input for cannon shot

X16

Connection for IR-battle unit
