Configuration - General

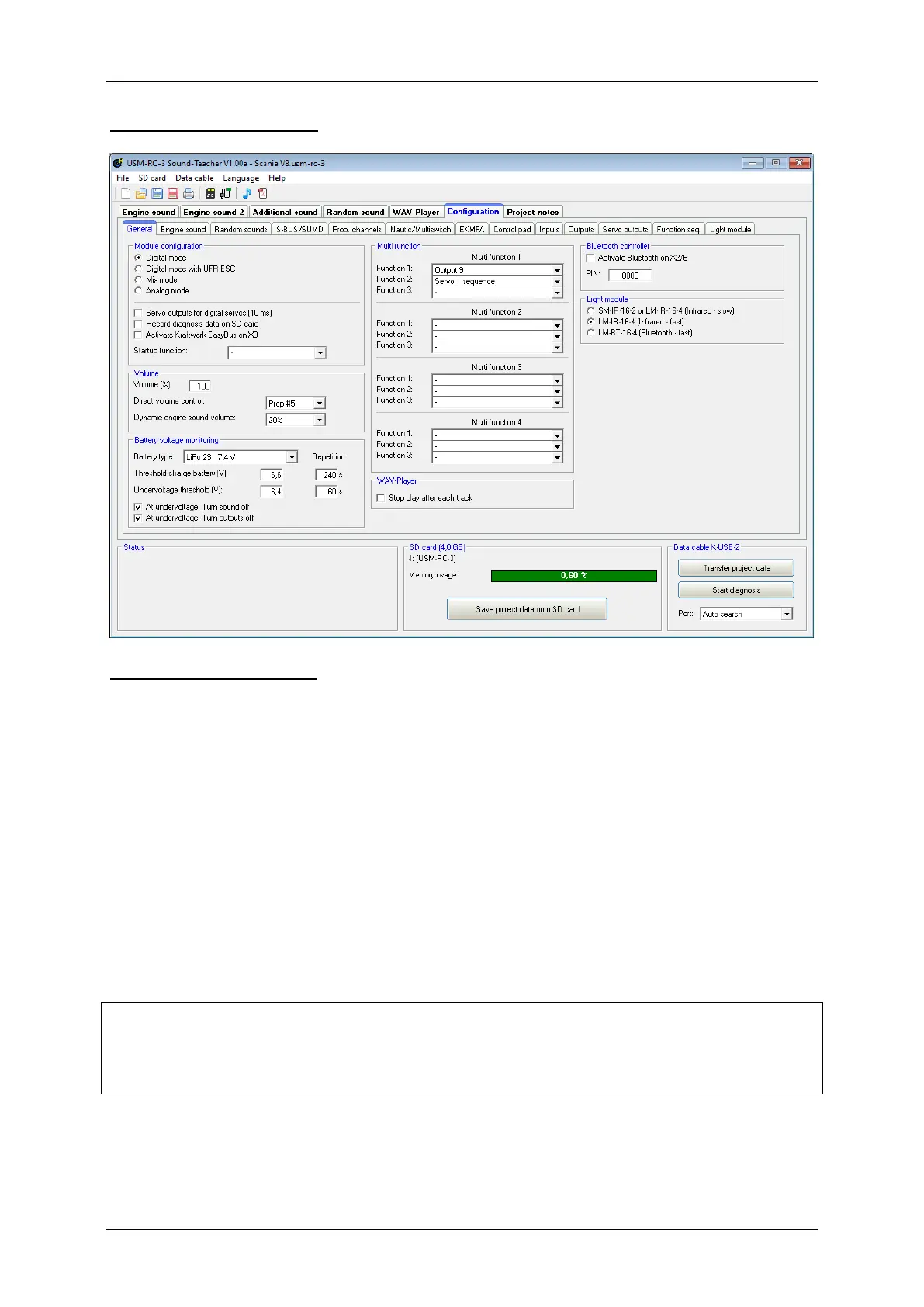

USM-RC-3 Configuration
Module mode:
At this point you determine whether the module is to operate in digital, analogue or
mixed mode (see page 7).
If digital servos are connected to the servo outputs, the speed of the pulse output on
the servo outputs can be reduced from the standard 20 ms to 10 ms. Some digital
servos work better with 10 ms than with 20 ms.
For troubleshooting while the module is running, the diagnostic data (data the
soundmodule gets from the receiver) can be saved on SD card. This data can be
read out and displayed in the Sound-Teacher (see 104).
Hint:
More comfortable is the live diagnosis function with the data cable K-USB-2.
Warning!
Only use this diagnosis function for troubleshooting and
switch it off afterwards!
If the diagnosis function is activated, the sound playback may be faulty.
If EasyBus lighting boards from Kraftwerk are to be controlled by the USM-RC-3, this
must be activated here. Further information, see page 60.
