GB Sound module USM-RC-3
78 BEIER-Electronic 11.10.2021

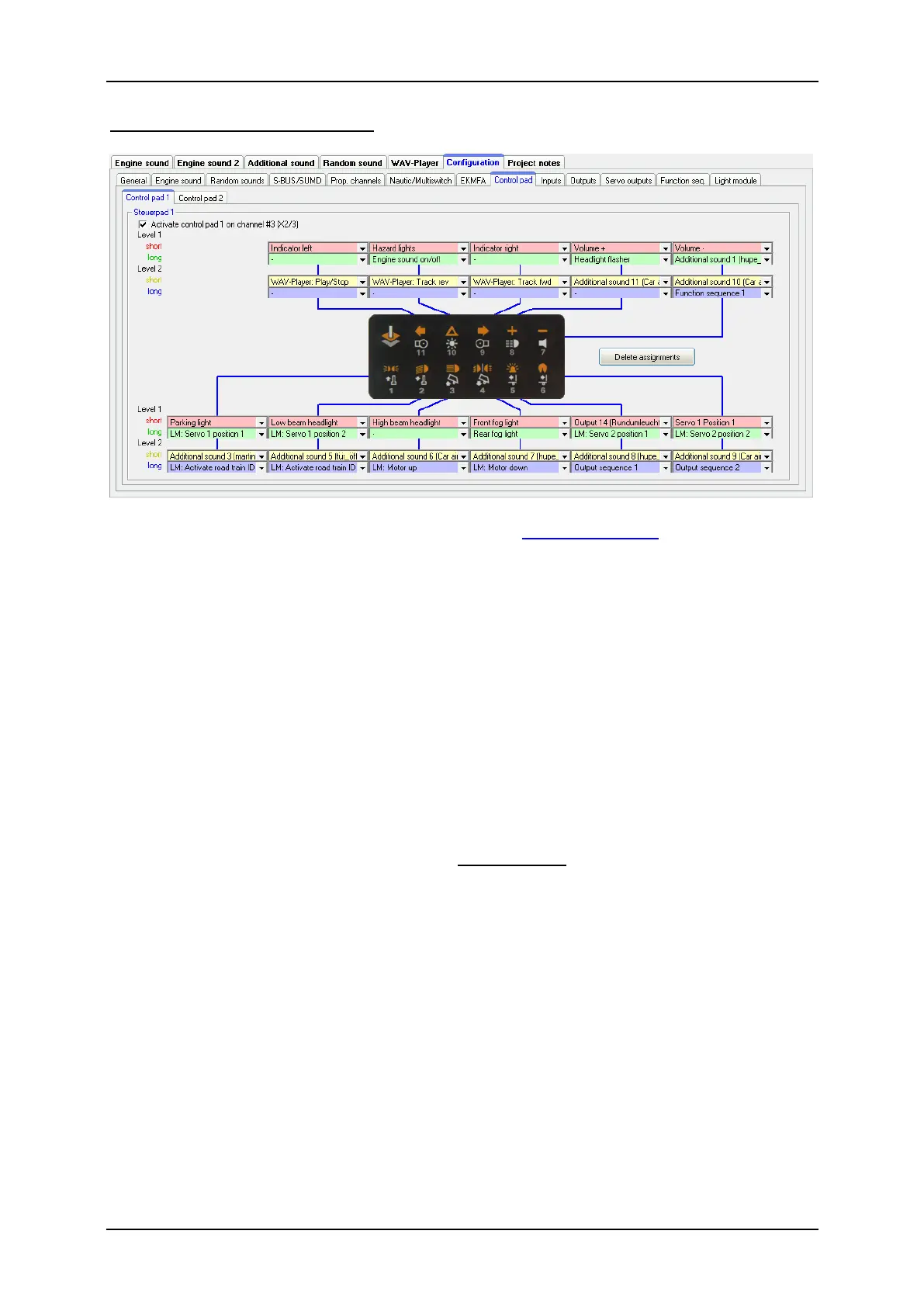

Configuration – Control Panel
The USM-RC-3 can also evaluat the control pads Light and Sound from the company
Kraftwerk. The control pad channel is connected from the receiver output to channel
# 3 (X2 / 3) or channel # 4 (X2 / 4) of the USM-RC-3.
The control pad can trigger up to 44 functions:
• 11 buttons on level 1, short button press
• 11 buttons on level 1, long button press
• 11 buttons on level 2, short button press
• 11 buttons on level 2, long button press
All push buttons can be assigned on both levels, with the desired functions.
Switching from level 1 to level 2 is done by the leftmost button (shift) in the top row.
Pressing this shift button switches to level 2. The next time you press one of the
buttons 1 - 11, the assigned function will be triggered by level 2. At the same time,
when the function is triggered, the level is automatically switched back to level 1
again.
If you switch to level 2 and then no button is pressed within 10 seconds, the pad also
automatically returns to level 1 again.
To Next Page
