3. Mechanical Installation
3.1. General
• The drive should be mounted in a vertical position only on a flat, flame resistant vibration free mounting using the integral holes or
DIN Rail clip (Frame Sizes 1 and 2 only).Do not mount flammable material close to the drive.
• The drive must be installed in a pollution degree 1 or 2 environment only.
• Do not mount flammable material close to the BFI.
• Ensure that the minimum cooling air gaps are left clear.
• Ensure that the ambient temperature range does not exceed the permissible limits for the drive given in section 9.1.
• Provide suitable clean, moisture and contaminant free cooling air sufficient to fulfil the cooling requirements of the drive.
3.2. UL Compliant Installation
Refer to section 9.4 on page 29 for Additional Information for UL Compliance.

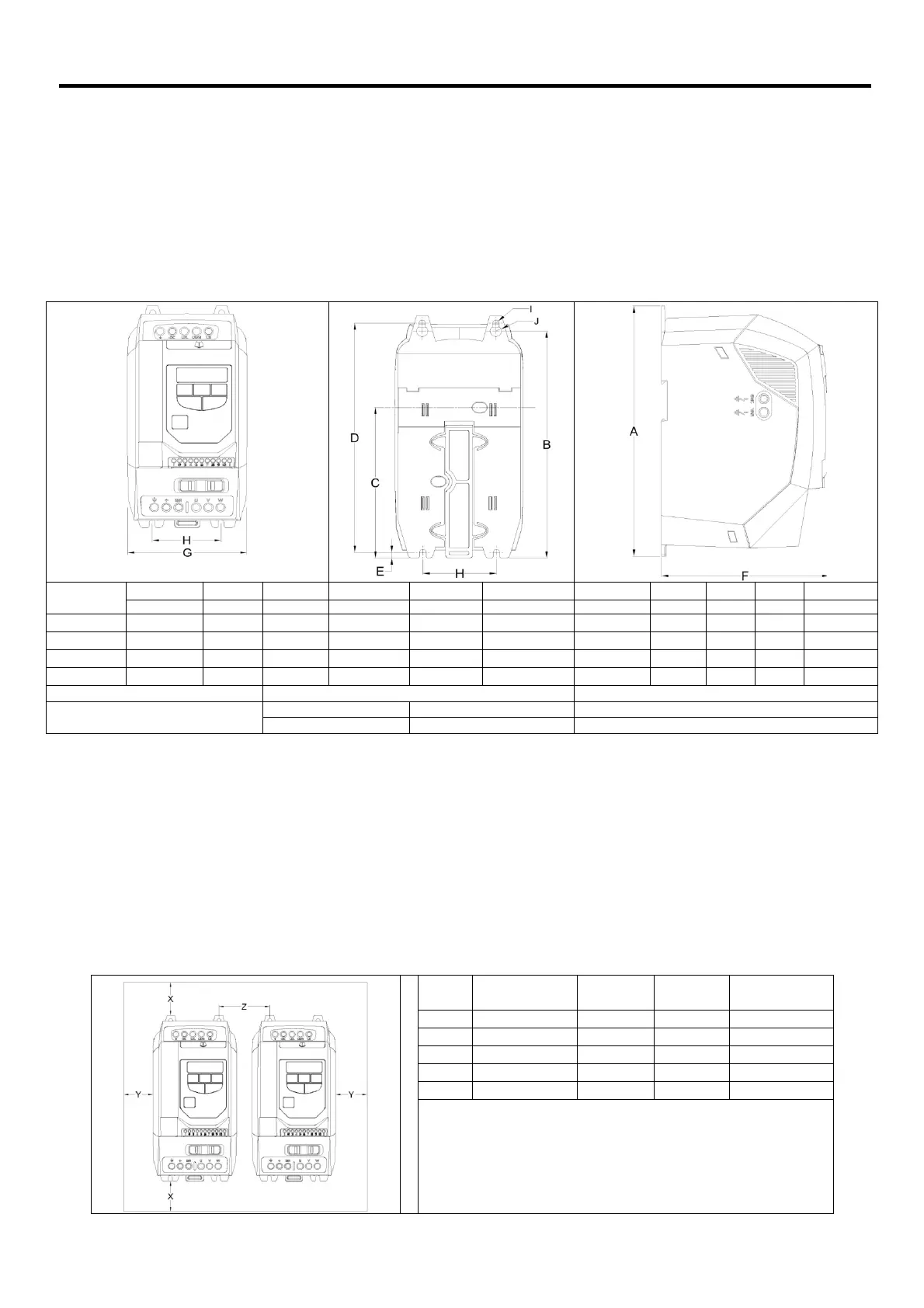

3.3. Mechanical Dimensions and Mounting – IP20 Open Units
Drive Size A / Height B C D E F / Depth G / Width H I J Weight
mm mm mm mm mm mm mm mm mm mm kg
1
173 - 109 162 5 123 83 50 5.5 10 1,0
2
221 - 137 209 5.3 150 110 63 5.5 10 1,7
3
261 - - 247 6 175 131 80 5.5 10 3,2
4
420 - - 400 8 212 171 125 8,2 14,8 9,1
Mounting Bolts
Frame Sizes 1
-
3: 4 x M5
Frame Sizes 4: 4 x M8
Tightening Torques
Frame Sizes 1
-
3:
Control Terminals: 0,
5
Nm
Power Terminals
: 1,0
Nm
Frame Sizes 4:
Control T
erminals: 0,
5
Nm
Power Terminals
:
2
,0
Nm
3.4. Guidelines for Enclosure Mounting – IP20 Units
• IP20 drives are suitable for use in pollution degree 1 environments, according to IEC-664-1. For pollution degree 2 or higher
environments, drives should be mounted in a suitable control cabinet with sufficient ingress protection to maintain a pollution
degree 1 environment around the drive.
• Enclosures should be made from a thermally conductive material.
• Ensure the minimum air gap clearances around the drive as shown below are observed when mounting the drive.
• Where vented enclosures are used, there should be venting above the drive and below the drive to ensure good air circulation – see
the diagram below. Air should be drawn in below the drive and expelled above the drive.
• In any environments where the conditions require it, the enclosure must be designed to protect the BFI against ingress of airborne
dust, corrosive gases or liquids, conductive contaminants and sprays or splashing water from all directions.
• High moisture, salt or chemical content environments should use a suitably sealed (non-vented) enclosure.
The enclosure design and layout should ensure that the adequate ventilation paths and clearances are left to allow air to circulate through the
drive heatsink. The drive manufacturer recommend the following minimum sizes for drives mounted in non-ventilated metallic enclosures:-
Drive
Size
X
Above &Below
Y
Either Side
Z
Between
Recommended
airflow
mm mm mm CFM (m
3
/min)
1
50
50
33
0.
14
2
75
50
46
0.
27
3
100
50
52
0.74
4
100
50
52
1,48
Note: Typical drive heat losses are 3% of operating load conditions.
Dimension Z assumes that the drives are mounted side-by-side with
no clearance.
Above are guidelines only and the operating ambient temperature of
the drive MUST be maintained at all times.
