BeiJer X2 User Manual

X2 Control communication with BFI-E3 by Modbus TCP
SER0020_V1.0.0 2020-11
17 (31)
Normal.dotm
, 2020-07-01

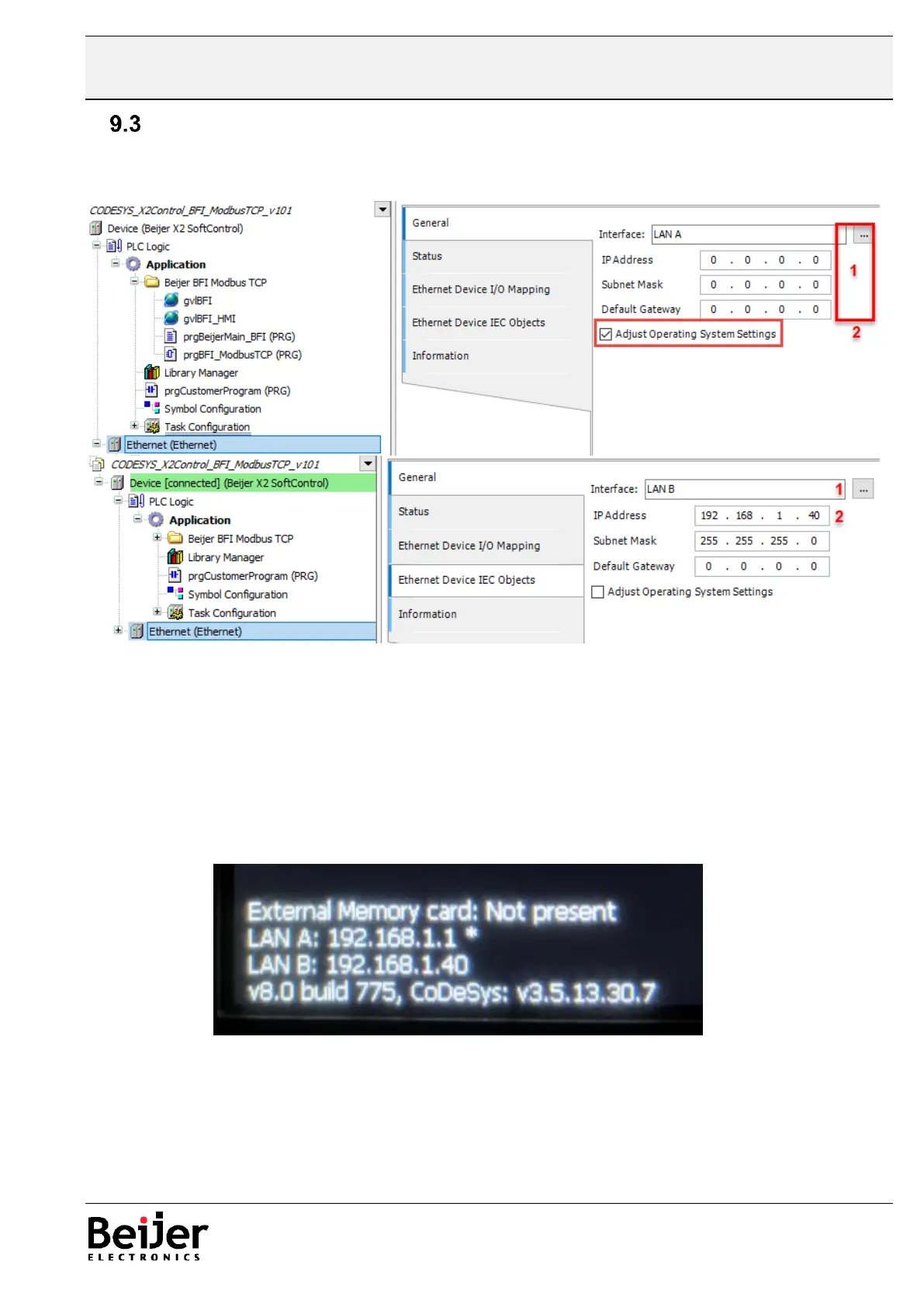

Ethernet setting in CODESYS/BCS Tools
The setting of ethernet ports must also be done in CODESYS/BCS Tools, both for the master and for all
slaves.
1. Setting of Interface, LAN port A or B for Modbus TCP communication. If LAN B is used for
Modbus TCP either of the settings above can be used. Upper example with Adjust Operating
System Settings activated the X2 control detects automatically LAN B as Modbus TCP port. In
the other example LAN B is defined as Ethernet post and corresponding with setting in the HMI.
2. IP address of the Ethernet port. This IP address must be the same as, in this case LAN B, of the
X2 control.
Picture showing IP-address settings in X2 control duting start up
